WOLF E SERIES BUILT-IN OVENS
E SERIES BUILT-IN SINGLE OVENS
691 mm
OPENING
HEIGHT
724 mm
OPENING WIDTH
127
mm
102
mm
610 mm
OPENING DEPTH
E E
E
E
838 mm
RECOMMENDED CABINET WIDTH
762 mm min
ELECTRICAL LOCATION
WITHIN OPENING
APPLIES ONLY TO
CABINETS DEEPER
THAN 610 mm
E
E
127
mm
121 mm min
838 mm
RECOMMENDED CABINET WIDTH
762 mm min
95 mm min
914 mm
STANDARD
FLOOR TO
COUNTER
HEIGHT
691 mm
OPENING
HEIGHT
724 mm
OPENING WIDTH
102
mm
610 mm min
OPENING DEPTH
ELECTRICAL
LOCATION WITHIN
OPENING APPLIES
ONLY TO CABINETS
DEEPER THAN 610 mm

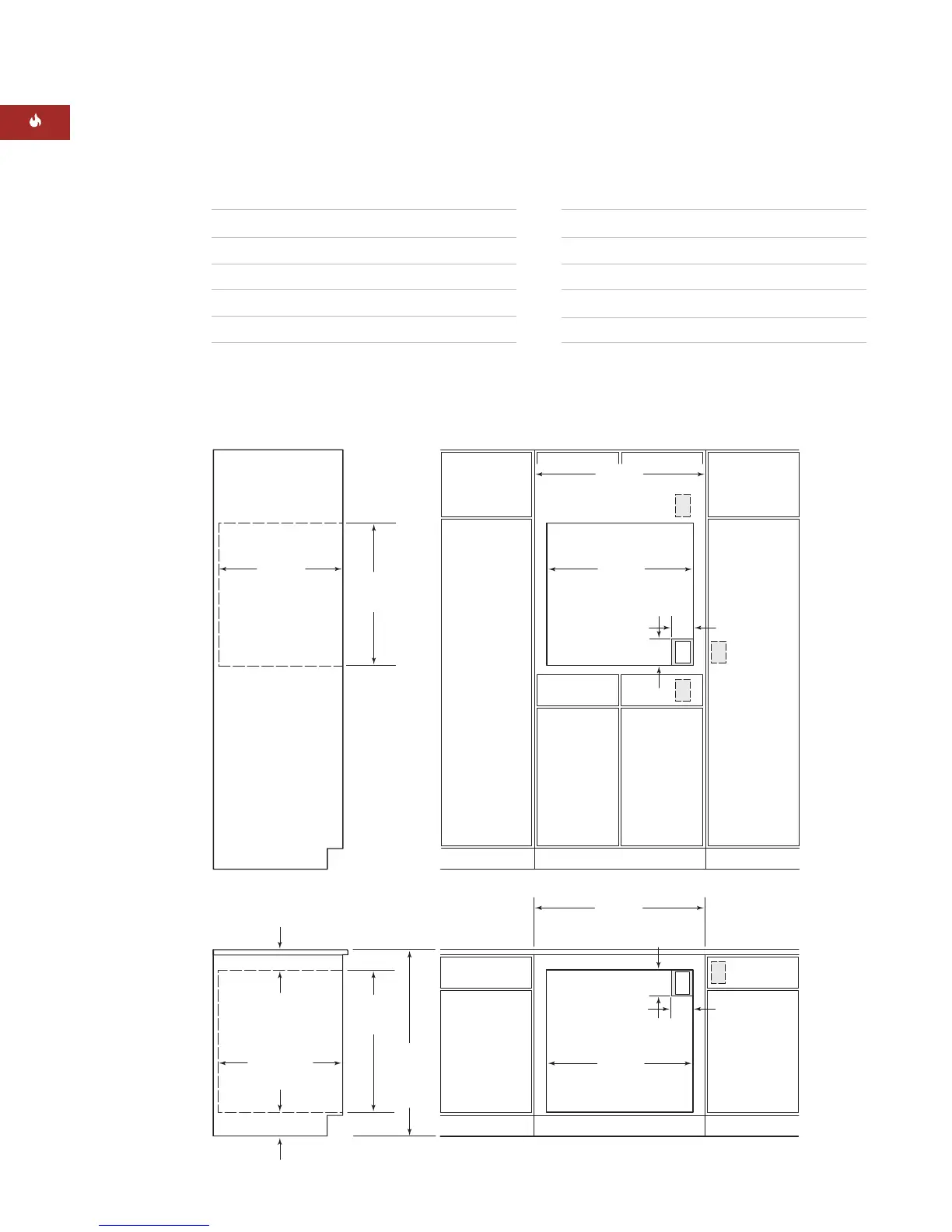

STANDARD INSTALLATION
Overall Oven Width 759 mm
Overall Oven Height 708 mm
Overall Oven Depth (behind frame) 603 mm
Open Door Clearance 559 mm
Recommended Cabinet Width 838 mm
Minimum Cabinet Width 762 mm
Minimum Cabinet (Opening) Depth 610 mm
Opening Width 724 mm
Opening Height 691 mm
Minimum Base Support 113 kg
STANDARD INSTALLATION – MODELS ICBSO30-2F/S AND ICBSO30-2U/S
