INSTALLATION INSTRUCTIONS
E SERIES BUILT-IN SINGLE OVENS
FLUSH INSET INSTALLATION
Overall Oven Width 759 mm
Overall Oven Height 708 mm
Overall Oven Depth (behind frame) 603 mm
Open Door Clearance 559 mm
Minimum Base Support 113 kg
Minimum Cabinet Width 838 mm
Minimum Flush Inset Depth 635 mm
Opening Width 724 mm
Minimum Flush Inset Width 772 mm
Opening Height 691 mm
Minimum Flush Inset Height 724 mm

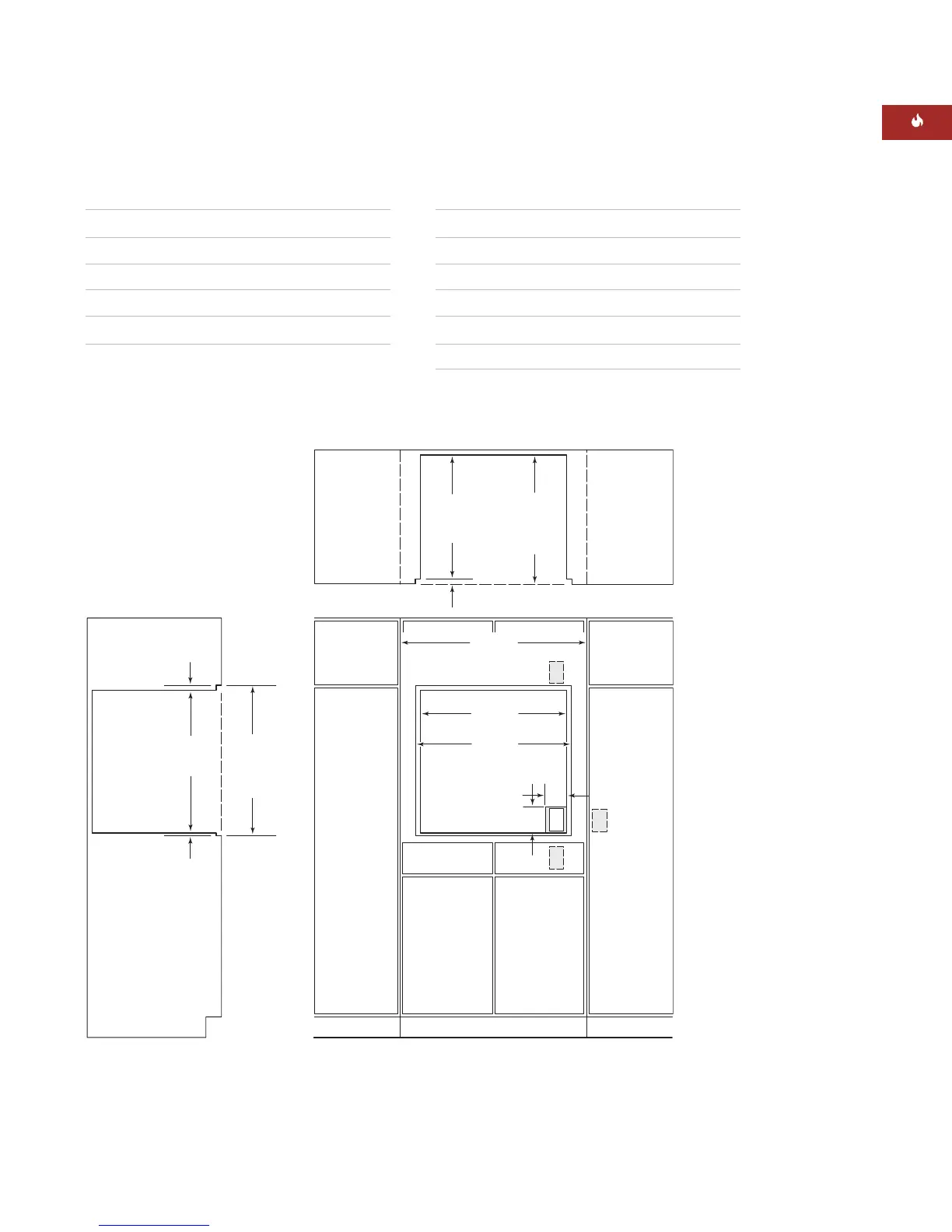

FLUSH INSET INSTALLATION – MODELS ICBSO30-2F/S AND ICBSO30-2U/S
691 mm
OPENING
HEIGHT
724 mm
min
FLUSH
INSET
HEIGHT
772 mm
FLUSH INSET WIDTH
724 mm
OPENING WIDTH
127
mm
102
mm
E
E
E
E
914 mm
RECOMMENDED CABINET WIDTH
838 mm min
610 mm
min
OPENING
DEPTH
25 mm
635 mm
min
FLUSH
INSET
DEPTH
11 mm
22 mm
ELECTRICAL LOCATION
WITHIN OPENING
APPLIES ONLY TO
CABINETS DEEPER
THAN 635 mm
SIDE VIEW
TOP VIEW
IMPORTANT
NOTE
For flush inset
installations, the
inside edges of the
rough opening
must be finished,
as they will be
exposed when the
oven door is open.
