SETUP & OPERATION
Planning / thicknessing
EGdoc072921 3-7
3
ADJUSTING OF THE OUTFEED TABLE
Outfeed table is factory adjusted. However if this necessary to adjust the outfeed table it can be done
with micro adjustment bolt (A-see below). The outfeed table should be adjusted so it is 0,02-0,05mm
above the highest position of the knives.
See figure 3-5.
DISASSEMBLING, ASSEMBLING AND GRINDING PLANING KNIVES
DANGER! Before changing the knives or performing any service to
planer/thicknesser, disconnect the power cord from the electric box.
See figure 3-6.
The planing knife is disassembled by loosening the chip breaker's (A) lock screws (B) and then
unscrewing the planing knife with adjuster screws (C).

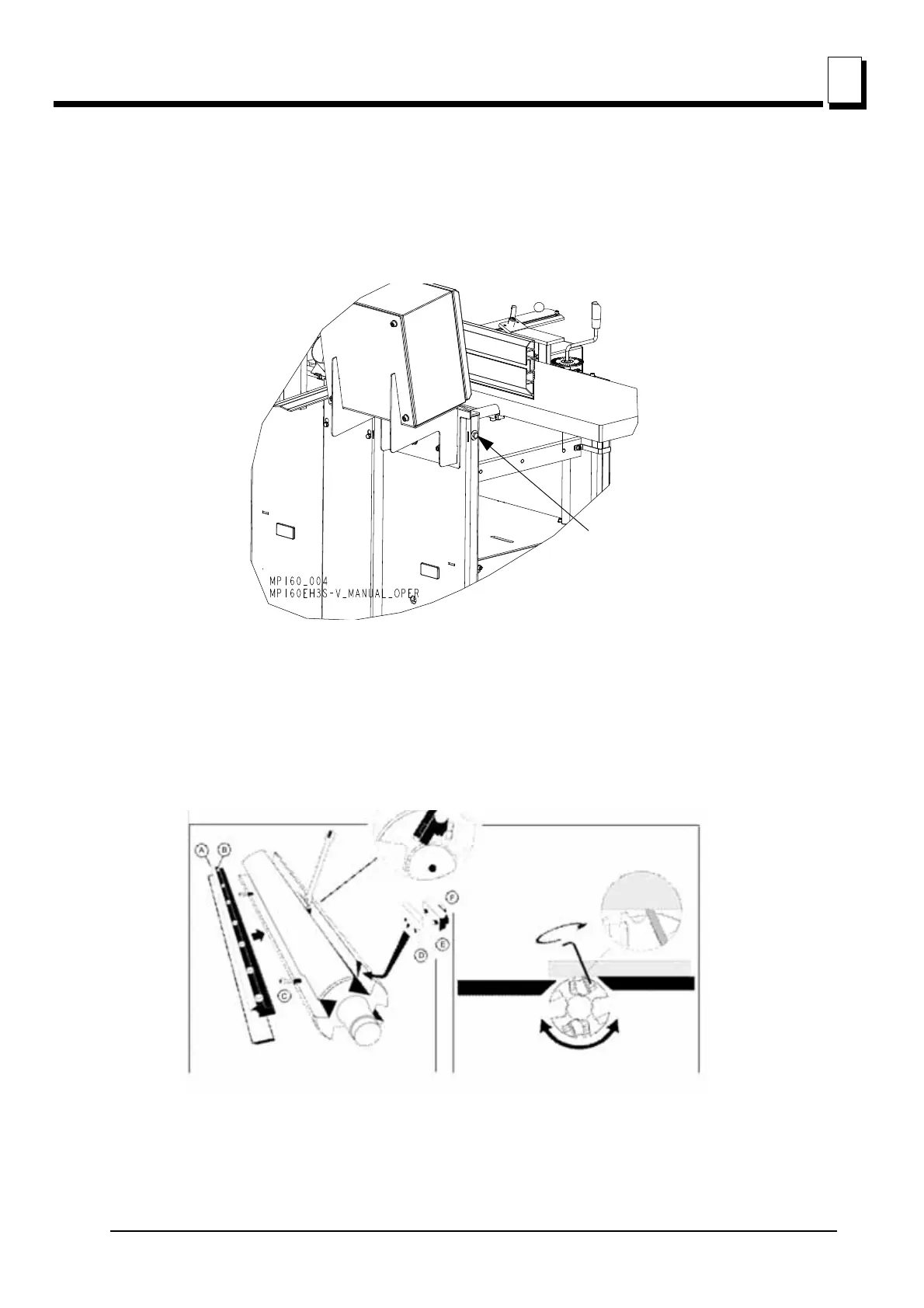

FIG. 3-5
FIG. 3-6
