Wood-mizer Simple Set SSW User Manual

Electrical Information
Wiring Diagram (Standard)
3
3-1 SS09doc042913 Electrical Information
SECTION 3 ELECTRICAL INFORMATION
NOTE: SimpleSet wiring for remote sawmills is provided in the sawmill wiring diagrams.

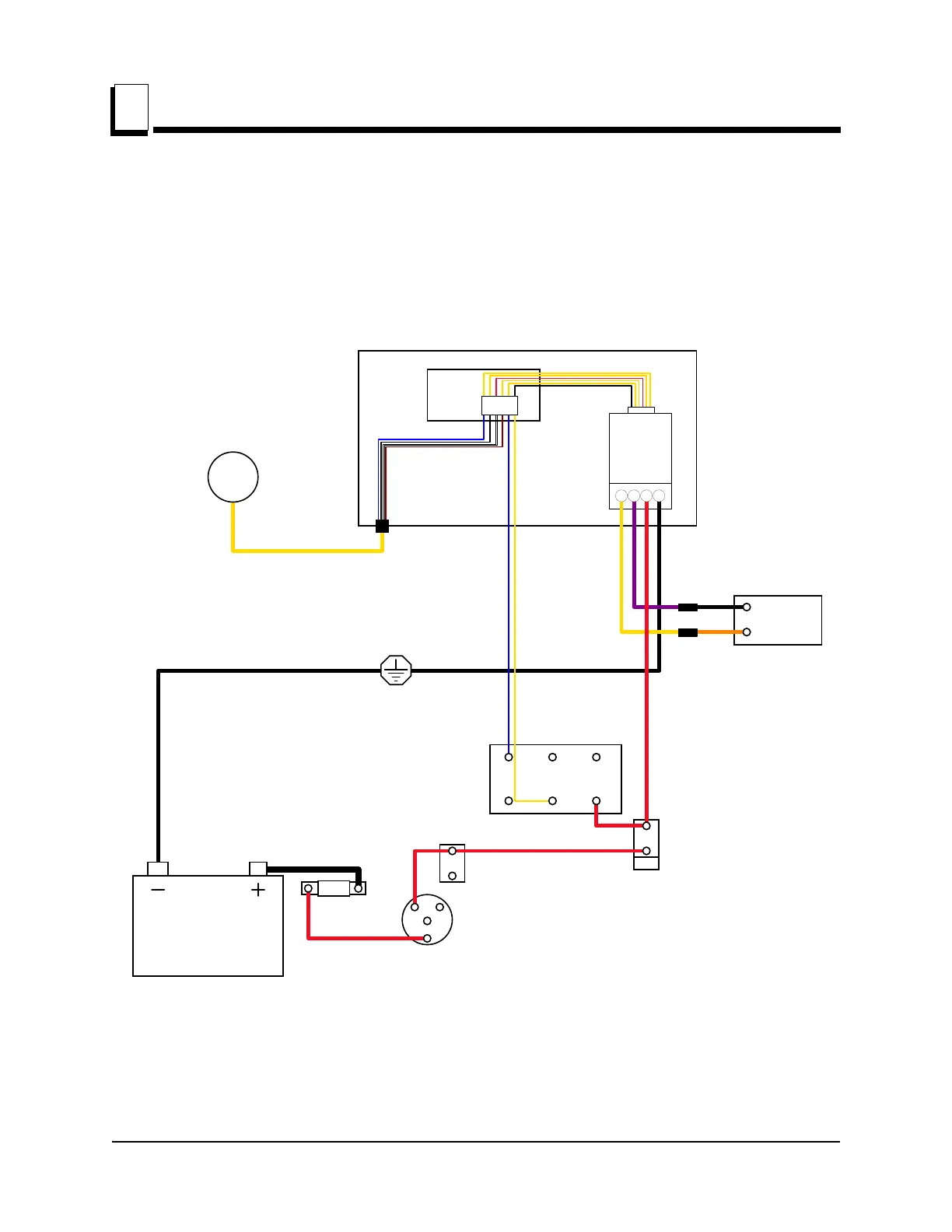

3.1 Wiring Diagram (Standard)
NOTE: SimpleSet wiring for remote sawmills is provided in the sawmill wiring diagrams.
40A
Up/Down Switch
1
2
3
4
5
6
Battery
150A
BAT
ACC IGN
ST
Key Switch
Up/Down Motor
+
-
Driver Module
15A
Encoder
Controller Module
P1
P2
P3
3H1039B
Red wire from SSW
moved from Drum
Switch #2 to Circuit
Breaker Rev. A.02
