Wood-mizer Simple Set SSW User Manual

Replacement Parts
Simple Set Kit, Complete (Standard)
Replacement Parts SS09doc042913 2-1
2
SECTION 2 REPLACEMENT PARTS

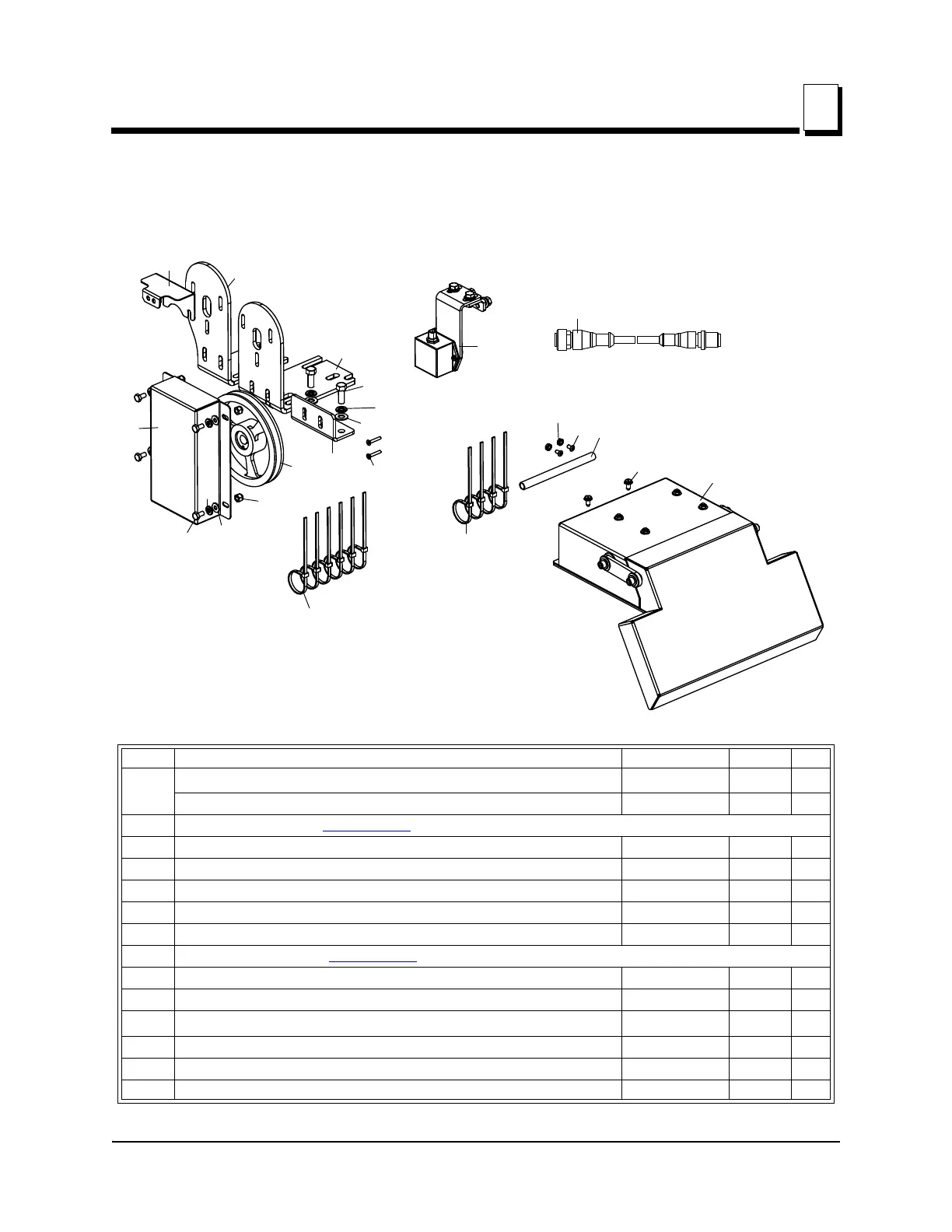

2.1 Simple Set Kit, Complete (Standard)
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
KIT, FACTORY-INSTALLED SIMPLE SET (STANDARD)
SSW
1
KIT, FIELD-INSTALLED SIMPLE SET (STANDARD) SSW-R 1
1 Simple Set Control (See Section 2.4
)
2 Screw, 1/4-20 x 1/2” Slotted Hex Head F05015-1 2
3 Tubing, 1/2” Neoprene R02348 .5 ft.
4 Screw, #10-24 x 3/8” Button Socket Head Stainless F05004-218 2
5 Nut, #10-24 Self-Locking Hex F05010-14 2
6 Tie Wrap, 3/16” x 6” UV Black F05089-3 4
7 Simple Set Encoder (See Section 2.3
)
8 Cable, Simple Set Sensor 053380 1
9 Cover, Simple Set Enclosure 006862 1
10 Bracket, Sensor Cable (SSW Only)
007067
1
1
11 Bracket, Simple Set Mount (SSW-S Only) 007416 1
12 Bolt, 3/8-16 x 1” Hex Head F05007-7 2
13 Washer, 3/8” Split Lock F05011-4 2
1
2
3
4
5
6
7
9
15
16
17
18
19
20
21
22
23
3H1040D
8
10
11
14
13
12
