1.3.3 Simple Set Up/Down Gear Settings Adjustment
1. Make sure the power to the control box is on.
2. Press the UP arrow and Manual buttons simultaneously on the Simple Set control panel
to display the Speed setting.
See Figure 1-3.
3. Press the Auto button several times until "Gear: 0.xxxx" appears.
4. Use the Up/Down arrow buttons to set the value of the Gear Setting as shown in the table
below.
5. Press the Auto button to display "InvGear: xx".
6. Use the Up/Down arrow buttons to set the InvGear setting to the required value as shown
in the table above.
7. Press the Manual button to return to the main menu.

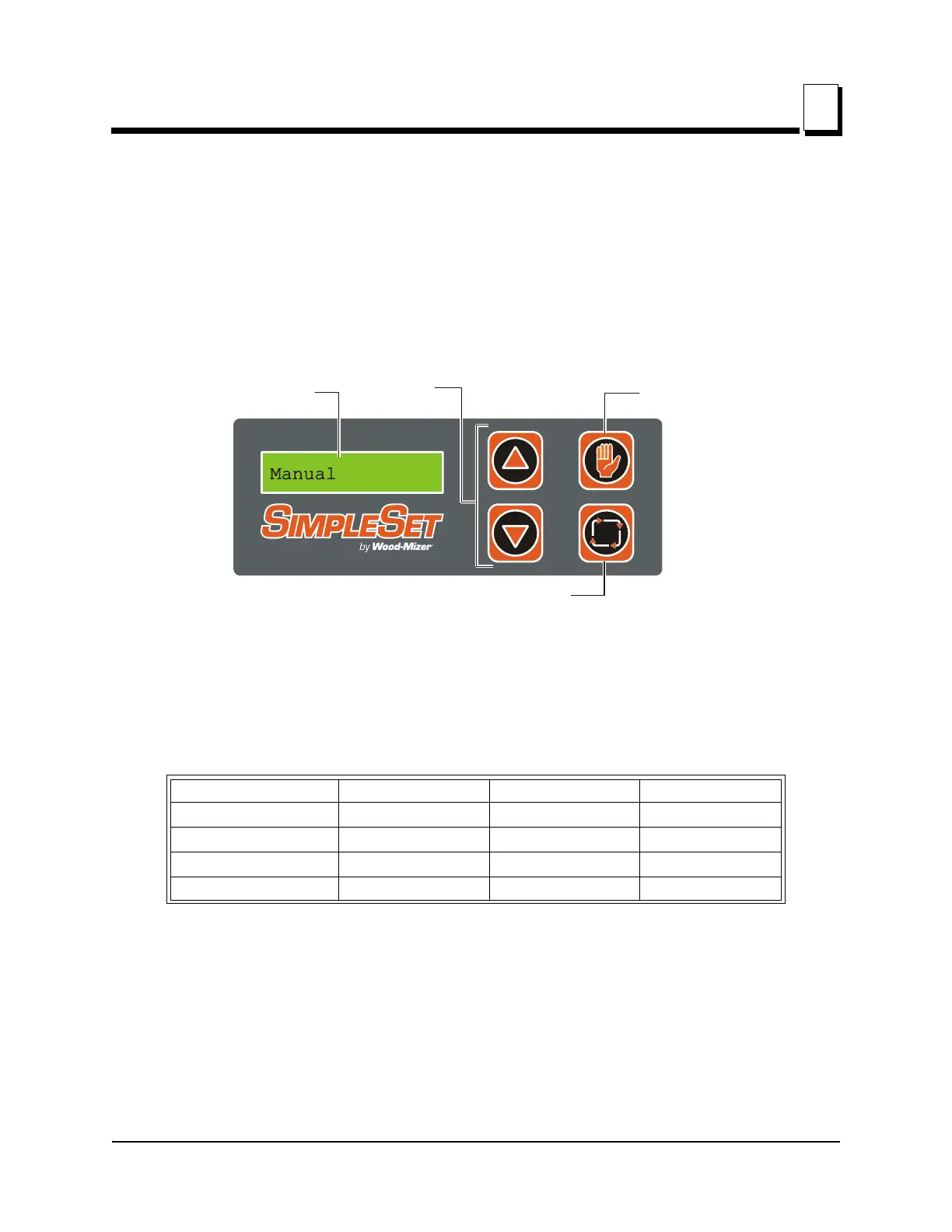

FIG. 1-3
Models Revision Gear Setting InvGear Setting
LT40 (Default) All 0.0938 (Default) No (Default)
LT35/LT35HD A1.00 - A1.02 0.2250 Yes
LT35/LT35HD A2.00 - A2.01 0.3492 Yes
LT35/LT35HD A3.00+ 0.1170 Yes
3H1128
Scroll
Up/Down
Display
Manual
Auto
