Wood-mizer Simple Set SSW User Manual

Replacement Parts
Sensor Assembly
2
2-4 SS09doc042913 Replacement Parts

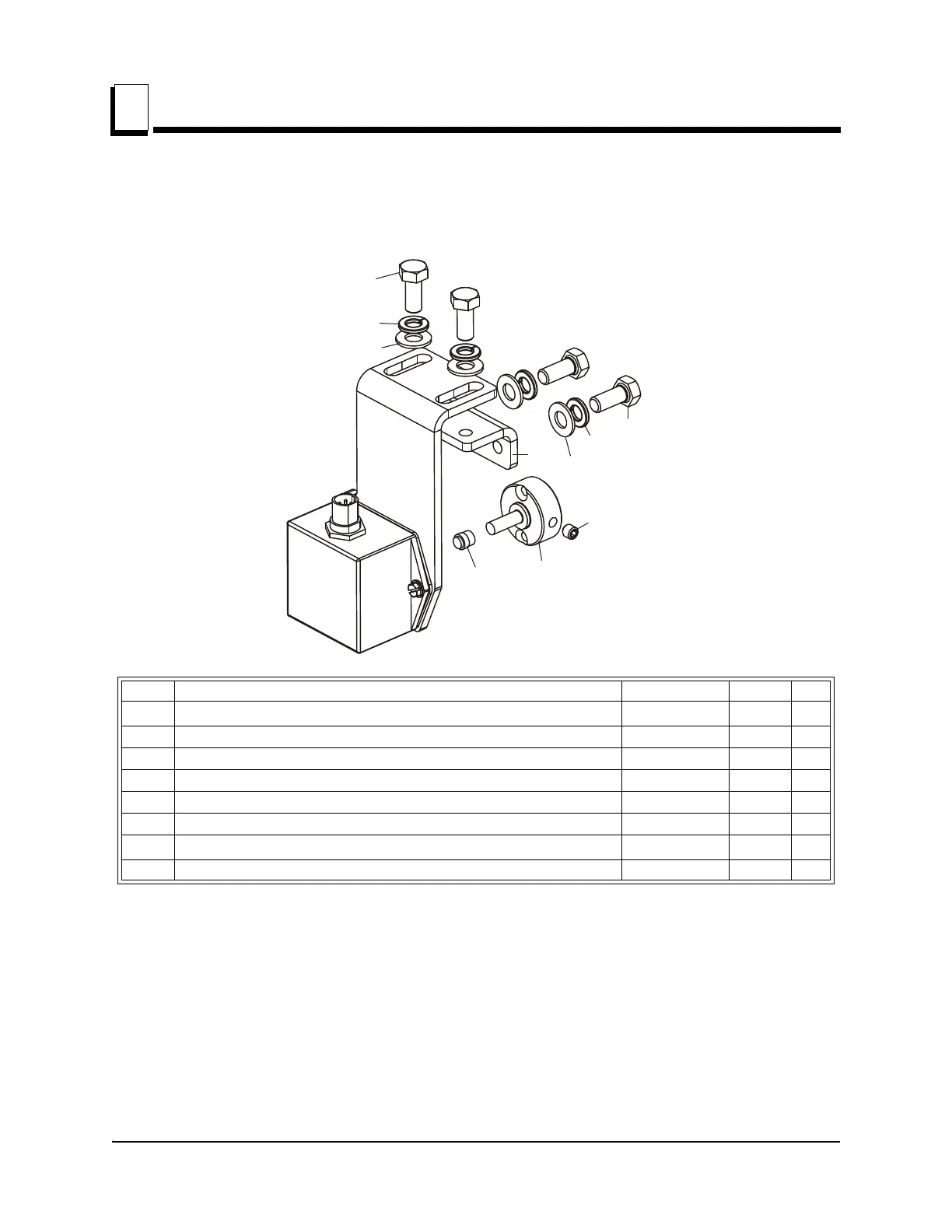

2.3 Sensor Assembly
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
SENSOR ASSEMBLY, SIMPLE SET
053369
1
1
Sensor Assembly 053369 revised 4/11. Mounting parts and extension shaft removed from kit and other components made avail-
able only as complete kit.
1
1 Extension, Simple Set Gearbox Shaft 057852 1
2 Bracket, Simple Set Sensor Mount 057872 1
3 Washer, 5/16” SAE Flat F05011-17 4
4 Washer, 5/16” Split Lock F05011-13 4
5 Bolt, 5/16-18 x 3/4” Hex Head F05006-5 4
6 Screw, 1/4-20 x 1/4” Cup Point Socket Set
F05005-131
2
2
Screw moved from SSW-R to Sensor Assembly 5/09.
1
7 Magnet Assembly, Simple Set Encoder w/Hub 065890 1
1
7
2
3
3
4
4
5
5
3H1040-2D
6
