Woods MAN0962 - Page 70

70 Parts
MAN0962 (1/9/2012)

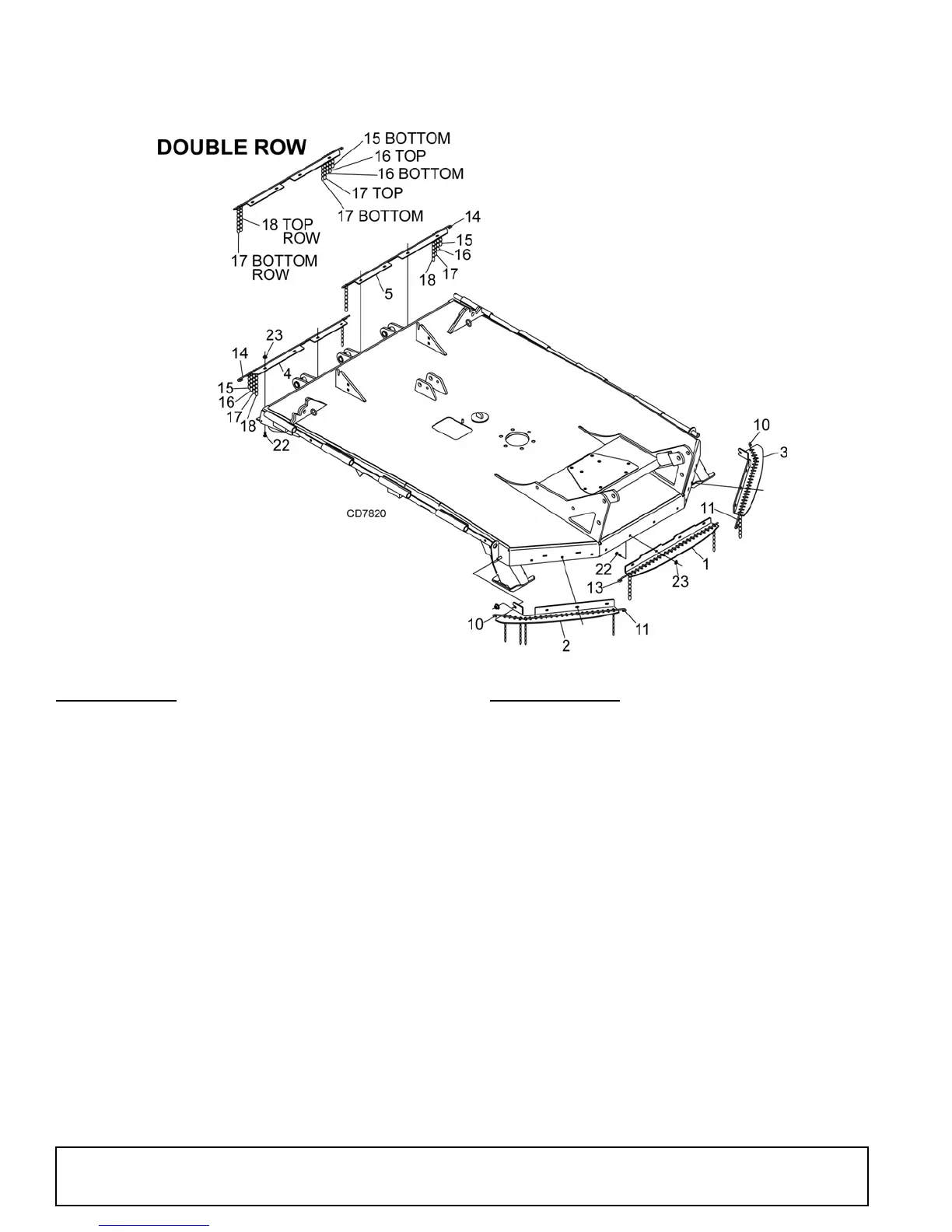

CHAIN SHIELDING - CENTER SECTION (FRONT & REAR)
(SINGLE ROW STANDARD ON BW126X MODELS)
(SINGLE ROW OPTIONAL ON BW180X MODELS)
(DOUBLE ROW OPTIONAL ON BW126X AND BW180X MODELS)
SINGLE ROW DOUBLE ROW
REF PART QTY DESCRIPTION
1 1034850 1 Front center chain plate
2 1034855 1 Front right chain plate
3 1034856 1 Front left chain plate
4 1027460 1 Rear chain plate, right
5 1027461 1 Rear chain plate, left
10 1017309 2 Pin, 4 to 6 chains
11 1003642 2 Pin, 16 to 18 chains
13 1003644 1 Pin, 22 to 24 chains
14 1003645 2 Pin, 25 to 27 chains
15 4069 2 5/16 Chain - 4 link
16 3994 2 5/16 Chain - 5 link
17 5498 2 5/16 Chain - 6 link
18 5496 114 5/16 Chain - 7 link
22 6697 * 3/8 NC x 1 Carriage bolt GR5
23 14350 * 3/8 NC Flanged lock nut
* Standard hardware, obtain locally
REF PART QTY DESCRIPTION
1 1034859 1 Front center chain plate
2 1033916 1 Front right chain plate
3 1033917 1 Front left chain plate
4 1033918 1 Rear chain plate, right
5 1033919 1 Rear chain plate, left
10 1017309 4 Pin, 4 to 6 chains
11 1003642 4 Pin, 16 to 18 chains
13 1003644 2 Pin, 22 to 24 chains
14 1003645 4 Pin, 25 to 27 chains
15 4069 2 5/16 Chain - 4 link
16 3994 4 5/16 Chain - 5 link
17 5498 42 5/16 Chain - 6 link
18 5496 159 5/16 Chain - 7 link
22 6697 * 3/8 NC x 1 Carriage bolt GR5
23 14350 * 3/8 NC Flanged lock nut
* Standard hardware, obtain locally
