Woods MAN0962 - Page 71

Parts 71
MAN0962 (1/9/2012)

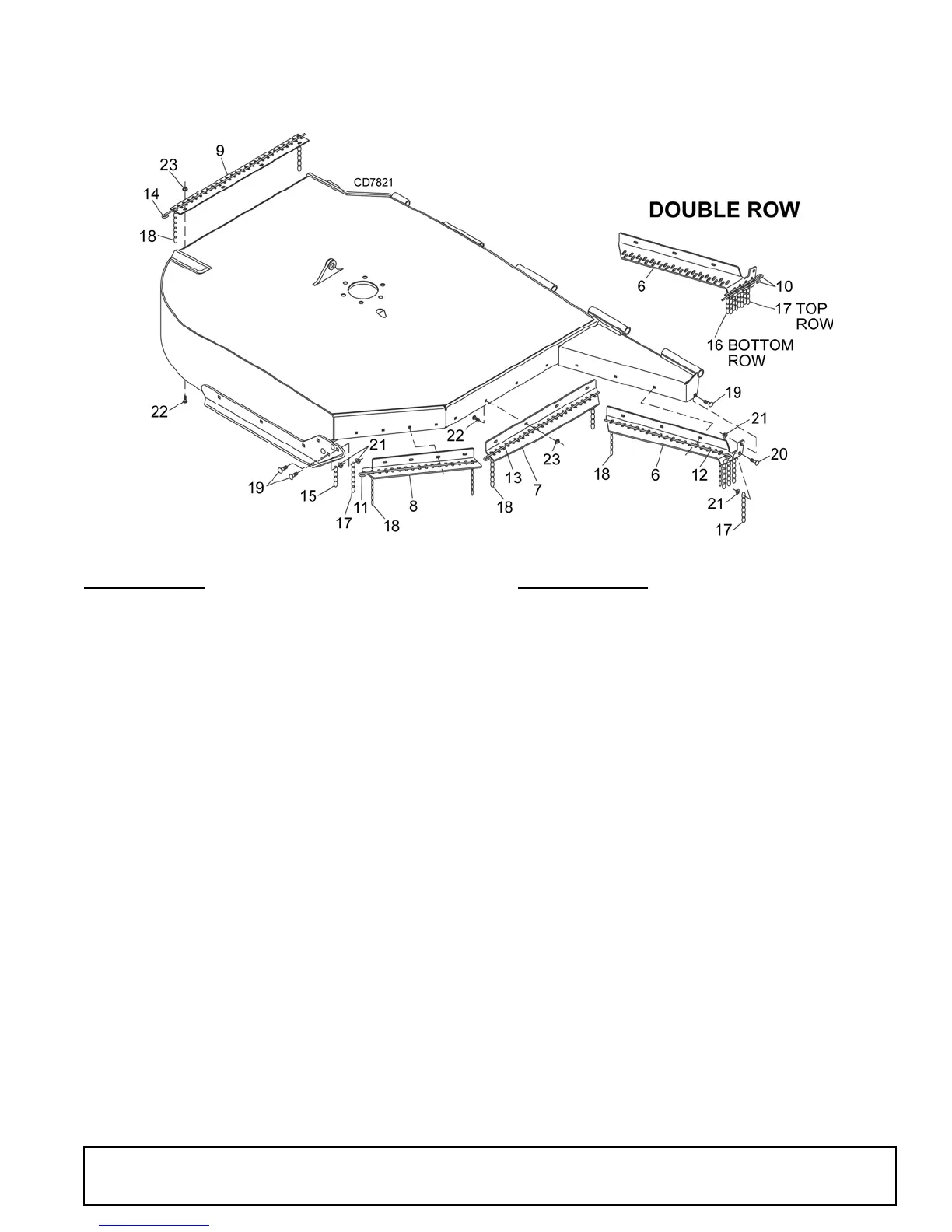

CHAIN SHIELDING - WING (FRONT & REAR)
(SINGLE ROW STANDARD ON BW126X MODELS)
(SINGLE ROW OPTIONAL ON BW180X MODELS)
(DOUBLE ROW OPTIONAL ON BW126X AND BW180X MODELS
SINGLE ROW DOUBLE ROW
REF PART QTY DESCRIPTION
6 1034857 1 Front right wing chain plate, inner -or
6 1034858 1 Front left wing chain plate, inner
7 1034851 1 Front right wing chain plate, middle -or
7 1034852 1 Front left wing chain plate, middle
8 1034853 1 Front right wing chain plate, outer - or
8 1034854 1 Front left wing chain plate, outer
9 1028174 2 Rear wing chain plate
11 1003642 2 Pin, 16 to 18 chains
12 1003643 2 Pin, 19 to 21 chains
13 1003644 2 Pin, 22 to 24 chains
14 1003645 2 Pin, 25 to 27 chains
15 4069 2 5/16 Chain - 4 link
17 5498 6 5/16 Chain - 6 link
18 5496 84 5/16 Chain - 7 link
19 29893 * 1/2 NC x 1-1/2 Carriage bolt GR5
20 14406 * 1/2 NC x 1 Carriage bolt
21 11900 * 1/2 NC Flanged lock nut
22 6697 * 3/8 NC x 1-1/4 Carriage bolt GR5
23 14350 * 3/8 NC Flanged lock nut
* Standard hardware, obtain locally
Pin & chain quantities are for one wing
REF PART QTY DESCRIPTION
6 1034864 1 Front right wing chain plate, inner -or
6 1034865 1 Front left wing chain plate, inner
7 1034862 1 Front right wing chain plate, middle -or
7 1034863 1 Front left wing chain plate, middle
8 1034860 1 Front right wing chain plate, outer - or
8 1034861 1 Front left wing chain plate, outer
9 1033915 1 Rear wing chain plate
10 1017309 2 Pin, 4 to 6 Chains
11 1003642 2 Pin, 16 To 18 Chains
12 1003643 2 Pin, 19 To 21 Chains
13 1003644 2 Pin, 22 To 24 Chains
14 1003645 2 Pin, 25 To 27 Chains
15 4069 2 5/16 Chain - 4 Link
16 3994 4 5/16 Chain - 5 Link
17 5498 6 5/16 Chain - 6 Link
18 5496 135 5/16 Chain - 7 Link
19 29893 * 1/2 NC x 1-1/2 Carriage bolt GR5
21 11900 * 1/2 NC Flanged lock nut
22 6697 * 3/8 NC x 1-1/4 Carriage bolt GR5
23 14350 * 3/8 NC Flanged lock nut
* Standard hardware, obtain locally
Pin & chain quantities are for one wing
