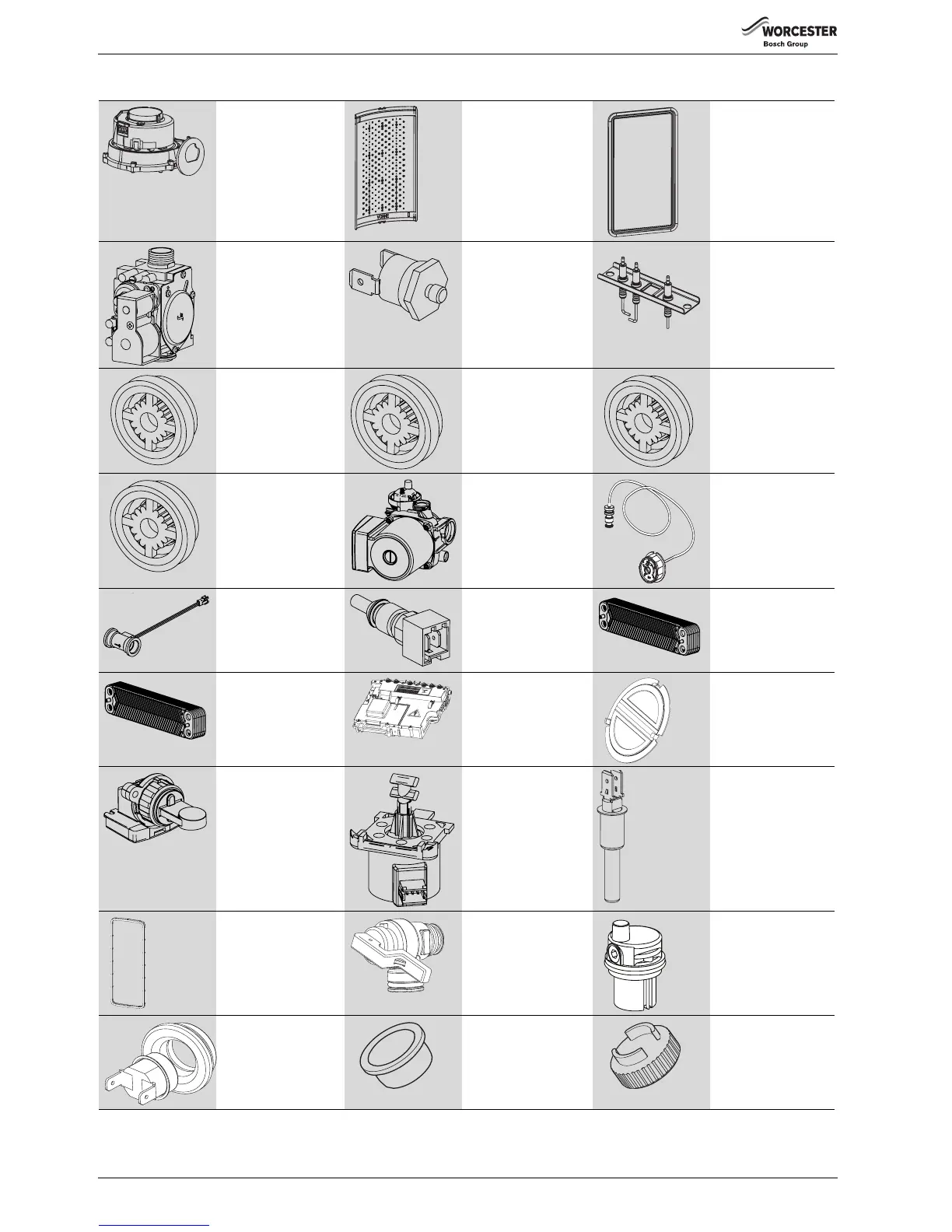

6.4 SHORT PARTS LIST
Fan
8 716 116 067 0
GC No. H26 536
Burner
8 718 006 658 0
GC No. E27 200
Burner skin seal
8 711 004 168 0
0GC No. E27 201
Gas valve
8 718 221 347 0
GC No. H56-469
Temperature limit
sensor
8 722 963 858 0
GC No. H08 291
Set of electrodes
including seal
8 718 107 089 0
GC No. H22 458
Flow reg. Type E
11 litre - brown
8 716 107 044 0
Flow reg. Type E
12 litre - red
8 716 141 061 0
Flow reg. Type E
14 litre - pink
8 716 107 887 0
Flow reg. Type E
15litre - lime green
8 716 141 031 0
GC No. H31 959
Pump assembly
8 716 106 354 0
GC No. H22 463
Pressure gauge
8 718 224 344 0
GC No. H02 528
Flow sensor
8 716 115 754 0
GC No. H02 529
DHW temperature
sensor
8 714 500 081 0
GC No. H02 538
Heat exchanger
16 plate
8 716 106 685 0
GC No. H02 531
Heat exchanger
20 plate
8 716 108 212 0
GC No. H22 465
Control unit
8 737 703 196 0
Bearing plate
(Fan intake diaphragm)
8 715 505 883 0
Diverter valve
assembly
8 716 106 845 0
GC No. H02 533
Diverter valve motor
8 716 106 847 0
GC No. H02 534
Control sensor -
primary
8 714 500 087 0
GC No. E74 536
Heat Exchanger
inspection cover seal
8 710 103 153 0
Pressure relief valve
8 716 106 431 0
GC No. H09 750
Auto Air Vent
8 716 106 445 0
Flue overheat
thermostat
8 710 506 267 0
Flue sample plug
air intake
8 716 111 253 0
Flue sample plug
8 716 111 252 0
Table 11 Short parts list
3
6
11
13

Worcester 34CDi GC 47-406-36 Specifications

General

Model	34CDi
GC Number	47-406-36
Category	Boiler
Boiler Type	Combi
Efficiency	90%
Gas Type	Natural Gas
Dimensions (H x W x D)	760 x 440 x 360 mm
Central Heating Flow Temperature Range	30°C - 80°C
