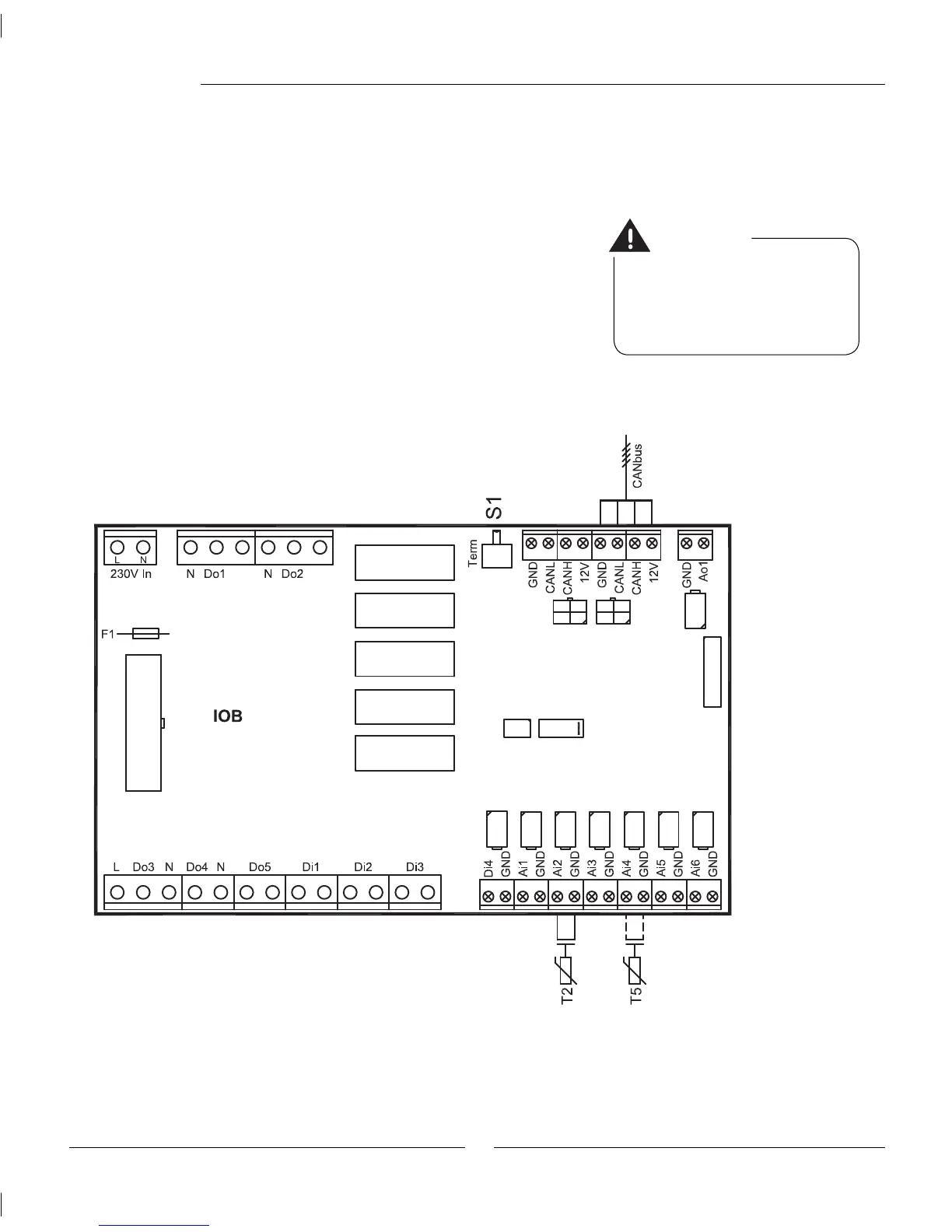

External connections Greensource HWDU
Power supply:
Connect to terminals L3, N and PE.
CANbus:
Communication cable between the heat pump and HWDU. Connect
to terminals GND, CANL, CANH and 12V. See more under section
CANbus.
T2, Outdoor sensor:
Connect to terminals Ai2 and GND.
T5, Room sensor:
Connect if room sensor infl uence is required. Connect to terminals Ai4
and GND.
External connections
Warning
Do not mix up the 12V and CAN-
bus connections! If 12V (or other
incorrect voltage) is supplied to the
CANbus contacts the processors in the
CANbus are destroyed.
