Details of the appliance
5
1.4 Accessories
• Standard horizontal flue kit at 100 mm outside
diameter for flues upto 4 m in length.
• Flue duct kits for horizontal (125 mm outside
diameter) for flue lengths upto 13 m and vertical flue
systems for flue lengths upto 15 m. Fitting instruc-
tions are sent with these kits.
• Security kit.

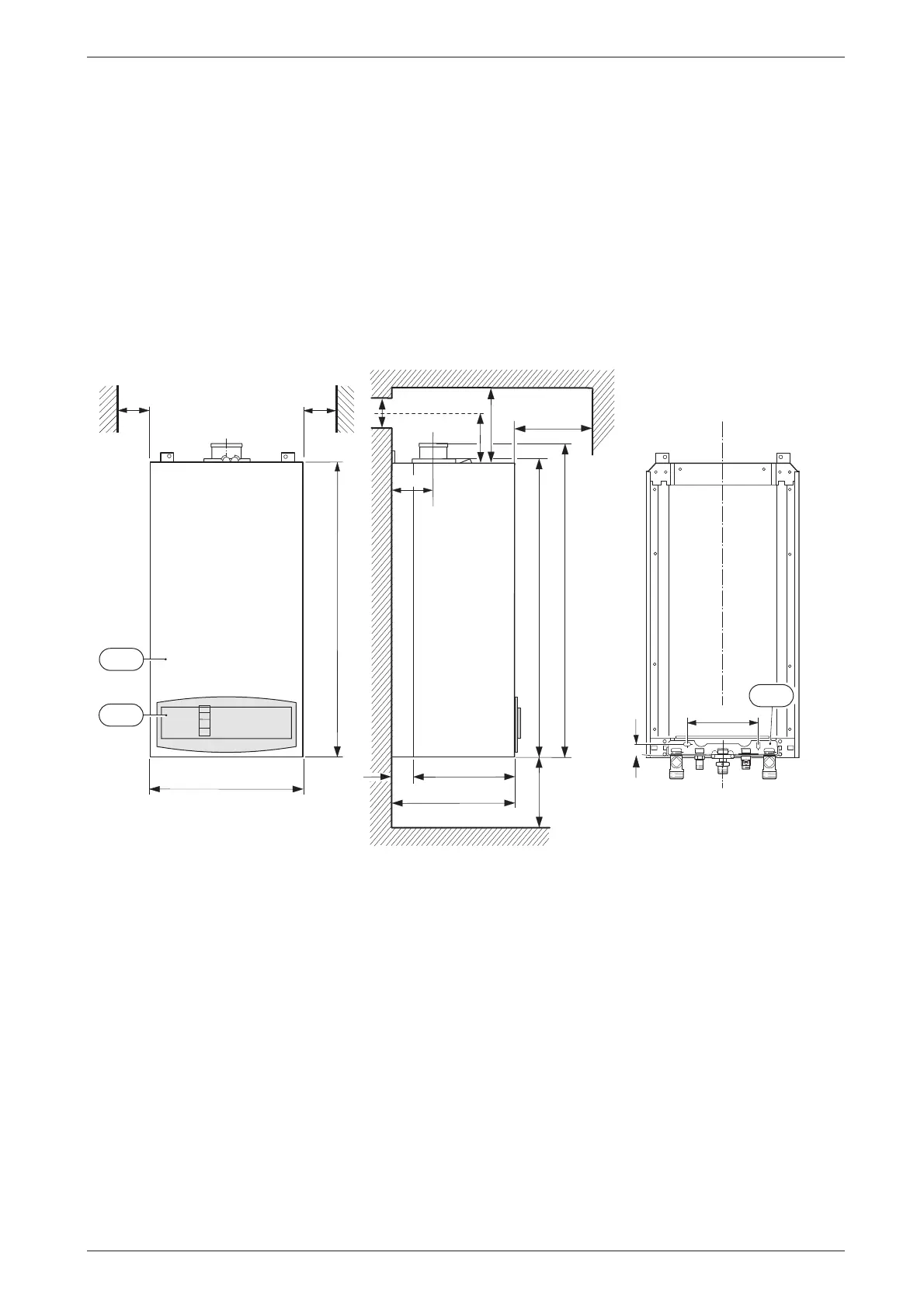

1.5 Casing dimensions
Fig. 1
13 Wall mounting frame and Manifold assembly
101 Outer case
103 Facia cover
X Standard Concentric Horizontal Flue System: (Ø 100 mm)
min. 310 mm
Alternative Concentric Flue System: (Ø 125 mm) min. 250
mm
Y Standard Concentric Horizontal Flue System: 158 mm
Alternative Concentric Flue System: 121 mm
Z Standard Concentric Horizontal Flue System: 105 mm
Alternative Concentric Flue System: 130 mm
* For servicing the appliance
min.
5
min.
5
850
440
395
200
360
861
906
200
30
6 720 610 601- 01.3O
101
103
35
X
13
Y
120
600
Z
*
*
*
*
