Worcester Greenstar 9i System ErP User Manual

6
Controls
Greenstar i System
ErP
– 6 720 806 947 (2015/03)
3Controls

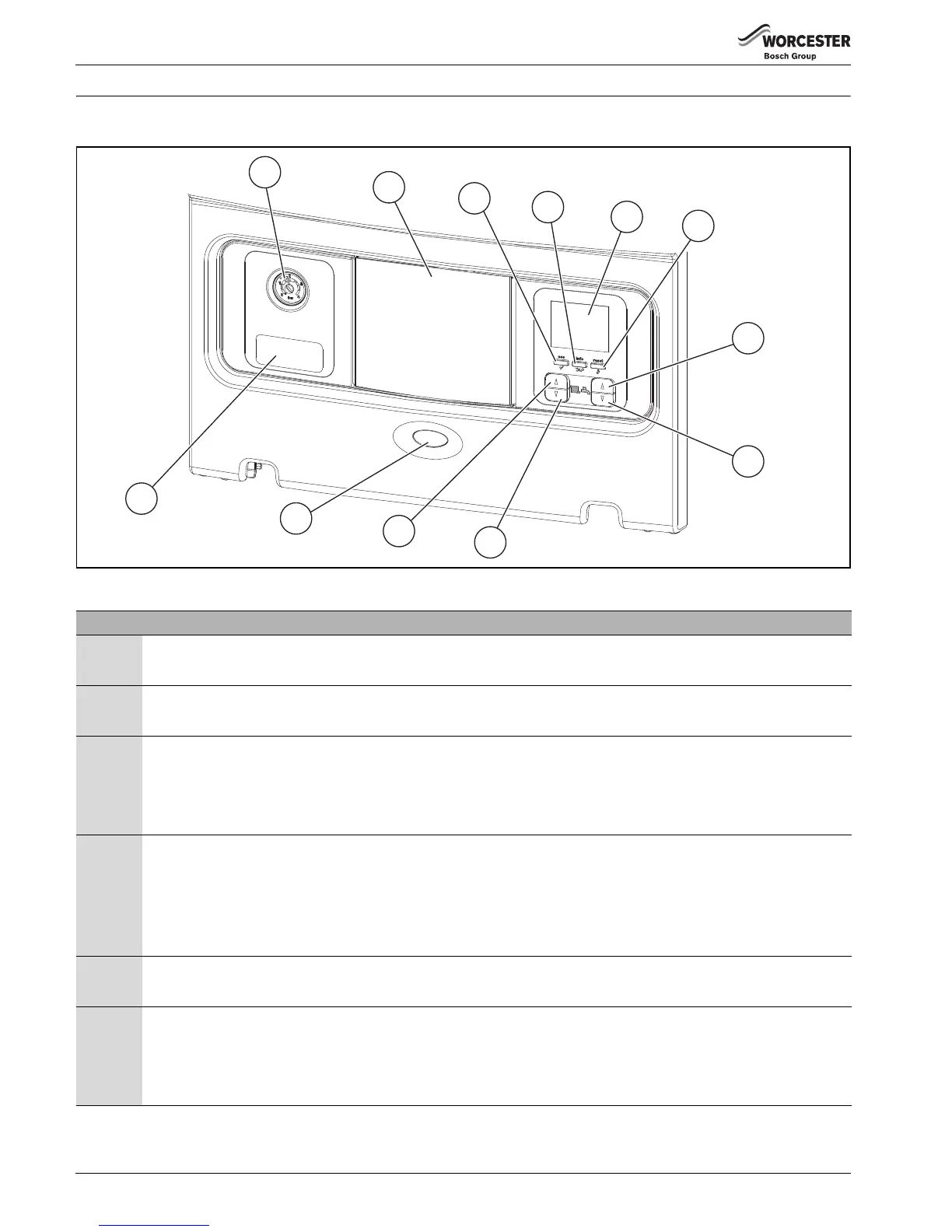

Fig. 1 Appliance control panel
Item Description
1System pressure gauge
• Displays pressure in the heating system and appliance
2 Position for optional programmer
• Worcester plug in controls position
3ECO/OK button
• Dual function button
– ECO (toggles domestic hot water preheat ON/OFF)
–OK (menu confirmation)
4 Info/Return/Spanner button
• Multi function button
– Info (Information menu access)
– Return (return to previous screen)
– Spanner (engineer function)
5 Appliance display
• Temperature and information display
6 Reset/Service engineer button
• Dual function button
– Reset (appliance reset)
– Service engineer (engineer service and set up function)
Table 2 Legend to figure 6
6720806946-01.1Wo
1
2
3
4
5
6
11
12
10
9
7
8
