9
Controls
Greenstar i System
ErP
– 6 720 806 947 (2015/03)

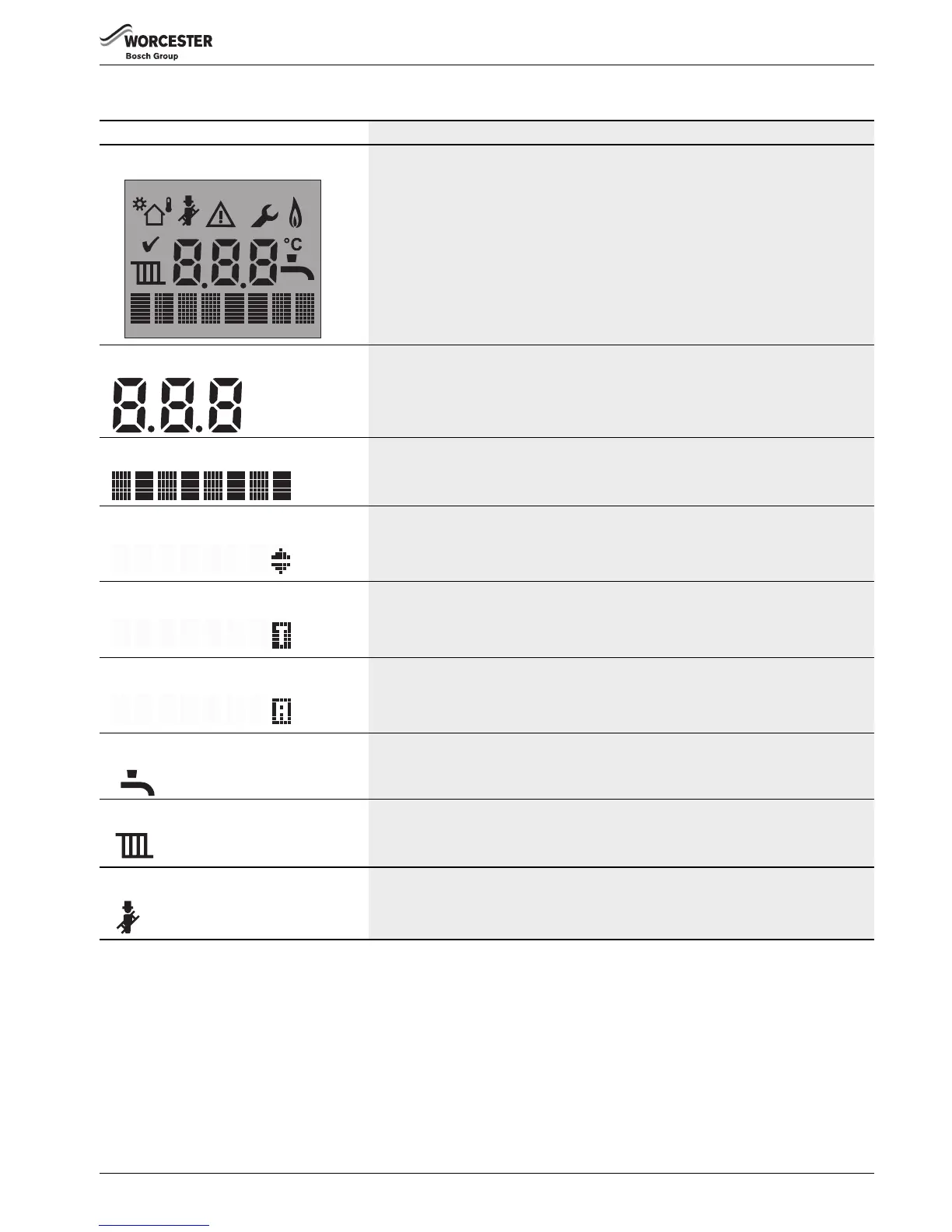

3.1.1 Appliance display
SCREEN DISPLAY
DESCRIPTION
All possible screen symbols
This screen is displayed briefly during appliance start up and shows all the symbols
that could be displayed.
Alpha/Numerical display
Displays a temperature or appliance status code.
Text display
Displays status, diagnostic code and short description information.
Right hand arrows (text display)
Use domestic hot water arrow buttons to alter the menu item.
Flashing T (text display)
Appliance in component test mode.
Flashing A (text display)
Appliance in air purge mode.
Hot water
Displays this symbol during cylinder hot water demand, when controlled with
Worcester intelligent controls in conjunction with the optional integral diverter valve
kit.
Central Heating
Displays this symbol during a central heating use.
Chimney sweep mode
Displays during service when the appliance is set to maximum or minimum output.
Table 3 Symbol description
