MOUNTING FRAME CONNECTIONS
PRE-
INSTALLATION
INSTALLATION & SERVICING INSTRUCTIONS
8 716 115 216b (09.2008)
13
CONNECTIONS:
Water: 28mm compression fittings
Gas: 22mm compression fitting.
RUNNING PIPES BEHIND THE BOILER:
• The frame should sit against the wall (not
the skirting board) with enough room for
the pipework.
• Do not cross a pipe over another.
• The area around a rear flue outlet must
be avoided.

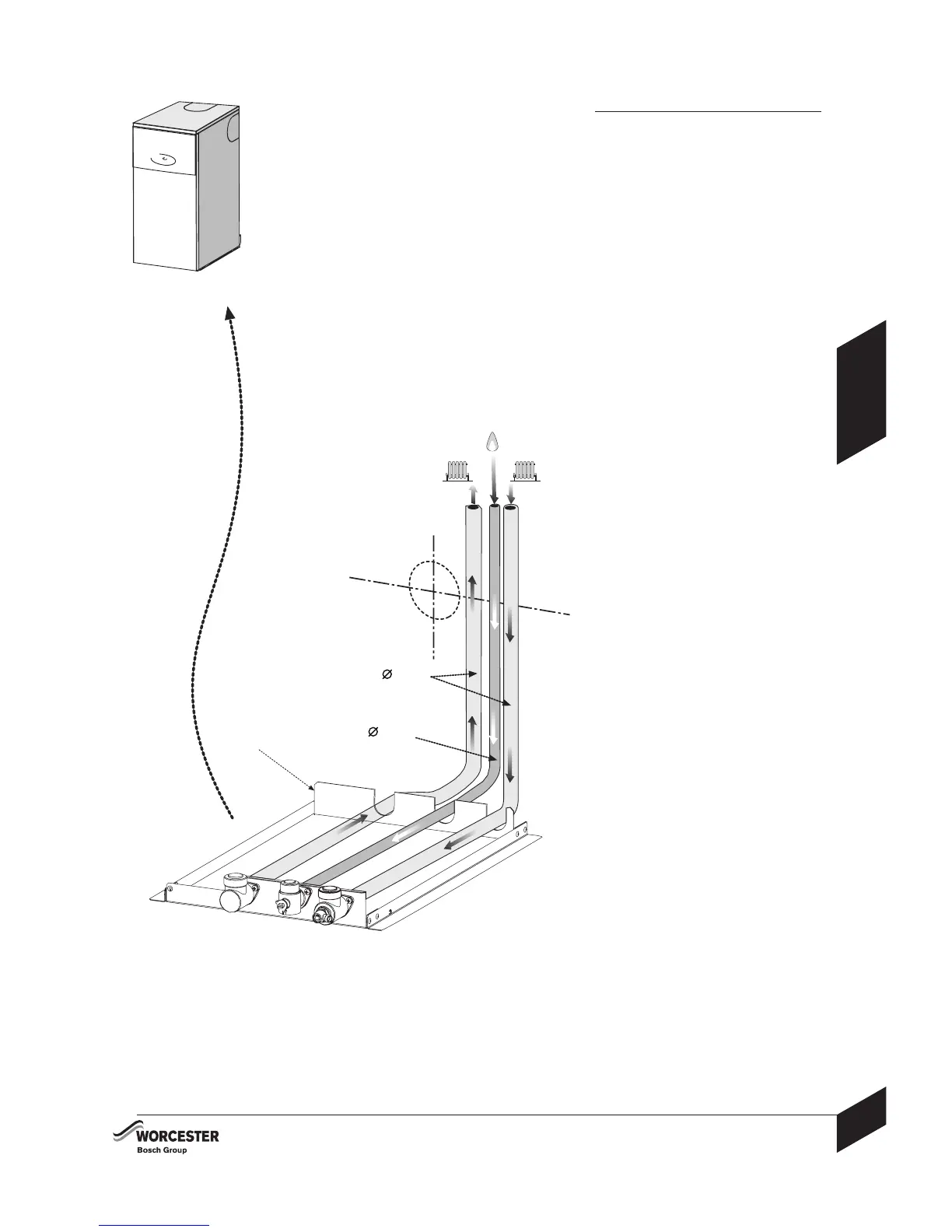

MOUNTING FRAME
CONNECTIONS
28mm
A
22mm
