ENGLISH
13

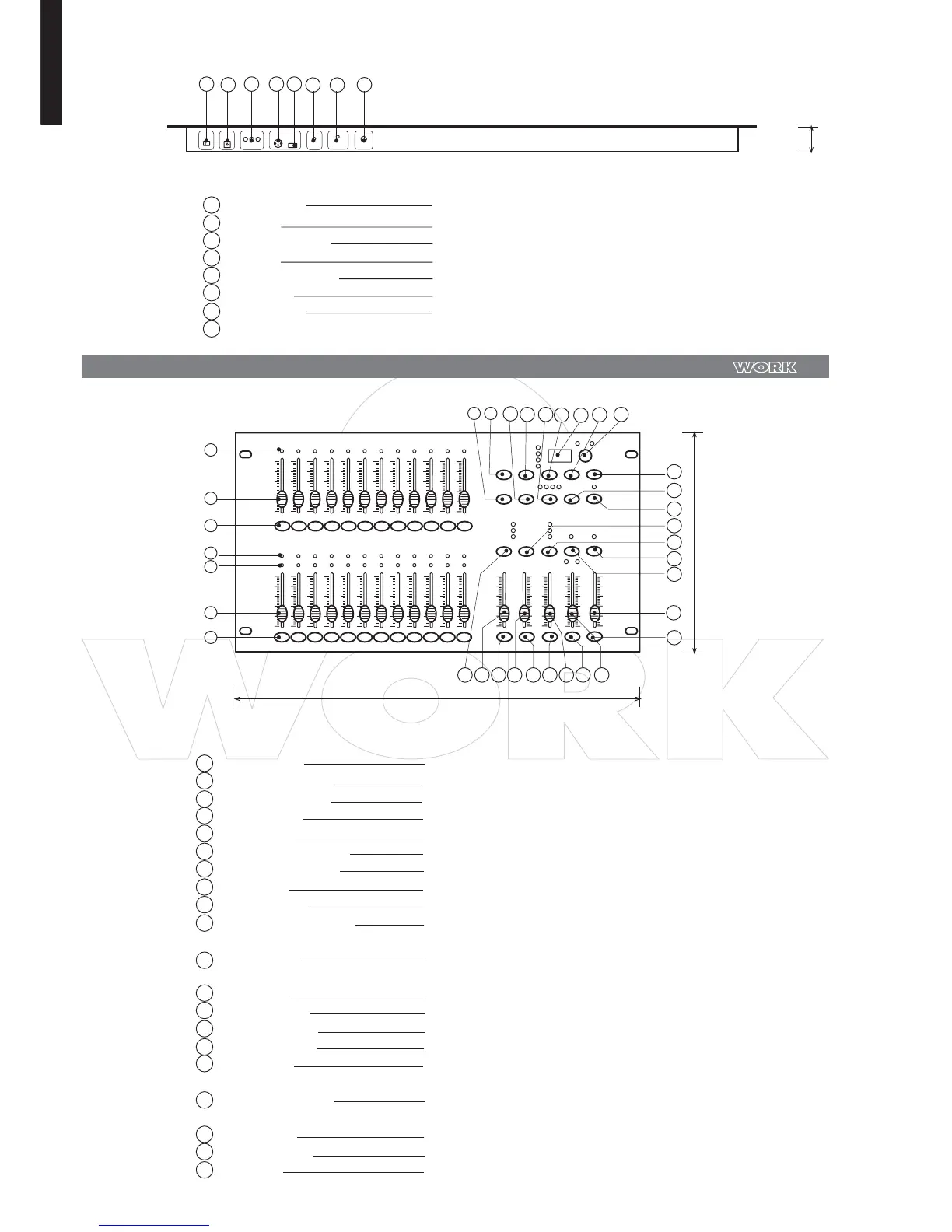

STAGE 4824 DMX
36
35
42
41
40
3938
37
85 mm
482 mm.
1
2
3
4
5
6
7
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
32
8
9
10
11
12
13
14
15
34
264 mm.
REAR
FRONT
FRONT
STAGE 2412 DMX
Preset A LEDs
Cannel Sliders 1 - 12
Flash Buttons 1 - 12
Preset B LEDs
SCENE LEDs
Channel Sliders 13 - 24
Flash Buttons 13 - 24
Dark Button
Down/Beat Rev
Show the current intensity of the relevant channel number from 1 to 12.
These 12 sliders are used to control and / or program the intensities of
channels 1 - 12.
These 12 buttons are used to brind an individual channel, to full intensity.
Show the current intensity of the relevant channel numbered from 13-24.
Light when relevant scenes are active.
These 12 sliders are used to control and / or program the intensities of
channels 13 - 24.
The 24 buttons are used to bring an individual channel, to full intensity.
They also are used for programming.
This button is used to momentarily black out overall output.
DOWN functions to modify a scene in edit mode; BEAT REV is used to
reverse the chasing direction of a program with regular beat.
1
2
3
4
5
6
7
8
9
Mode Select/Rec Speed
Up/Chase Rev
Page Button
Delete/Rev One
Segment Display
Insert / % ó 0-255
Edit / All Rev
Add o Kill / Rec exit
Record / Shift
Master A Button
Park Button
Each tap will activate the operating mode in the order: CHNS / SCENES,
Double Preset.
Rec Speed: Set the speed of any of the programs chasing in Mix mode.
Up is used to modify a scene in Edit mode.
Chase Rev is to reverse the chasing direction of scene under Speed
Slider control.
Tap to select pages of secenes from Page 1 - 4.
Delete any step of a scene in Edit mode.
Chase Rev is to reverse the chasing direction of any program.
Show the current activity or programming state.
Insert is to add one step osteps into a scene.
% or 0 - 255 is used to change display value cycle between % and 0-255
17
18
19
20
Edit is used to activate Edit mode.
All Rev is to reverse the chasing direction of all programs.
In Add mode, multiple scenes or Flash button will kill any other scenes
or programs.
In Kill mode, pressing any Flash button will kill any other scenes or
programs.
Rec Exit is used to exit from Program or Edit mode.
Record is used to activate Record mode or program a step.
Shift functions only used with other buttons.
Brings channel 1 - 12 to full of current setting.
Used to select Single / Mix Chase, bring Channel 13 - 24 to full current
setting, or momentarily program a scene into Master B slinder, depending
on the current mode.
10
11
12
13
14
15
16
Power Switch
DC Input
MIDI Thru / Out / In
DMX Out
DMX Polarity Select
Audio Input
Remote Input
Fog Machine Connector
REAR
DC 12-20V. 500 mA. mín.
35
36
37
38
40
41
42
This switch turming on or off of the power.
MIDI ports for connection to a sequencer or MIDI device.
This connector sends your DMX value to the DMX fixture or DMX
pack.
Used to select DMX polarity.
Black Out and Full On may be controlled by remote control using
a standard 1 / 4" stereo jack.
This RCA accepts a line level audio input signal ranged from 100mV
to 1Vpp.
39
