COMPONENT LAYOUT DESCRIPTIONS
(See Figure 1, pg 4)
1. AIR INLET
The air inlet is a 1" NPT opening with a full-port, Universal (Chicago type)
Coupling. The Coupling supplied is the recommended fitting for the
GO-A8. Replacing the Coupling with a quick-connect type plug will
restrict air flow to the Impactor.
2. FORWARD/REVERSE LEVER (F/R Lever)
The F/R Lever is a steel rod attached to a swivel joint providing a
universal type pivoting action. The rod, painted with enamel, has a
rubber, slip-on grip for control comfort. The F/R Lever controls the
direction of rotation of the Impactor's square drive anvil. A decal located
on the Cylinder Shield (Item 9) shows the position for clockwise anvil
rotation (3 O'clock position),and for counterclockwise anvil rotation (11
O'clock position). A label attached to the Cylinder Shield, See Figure 2,
shows these handle positions.

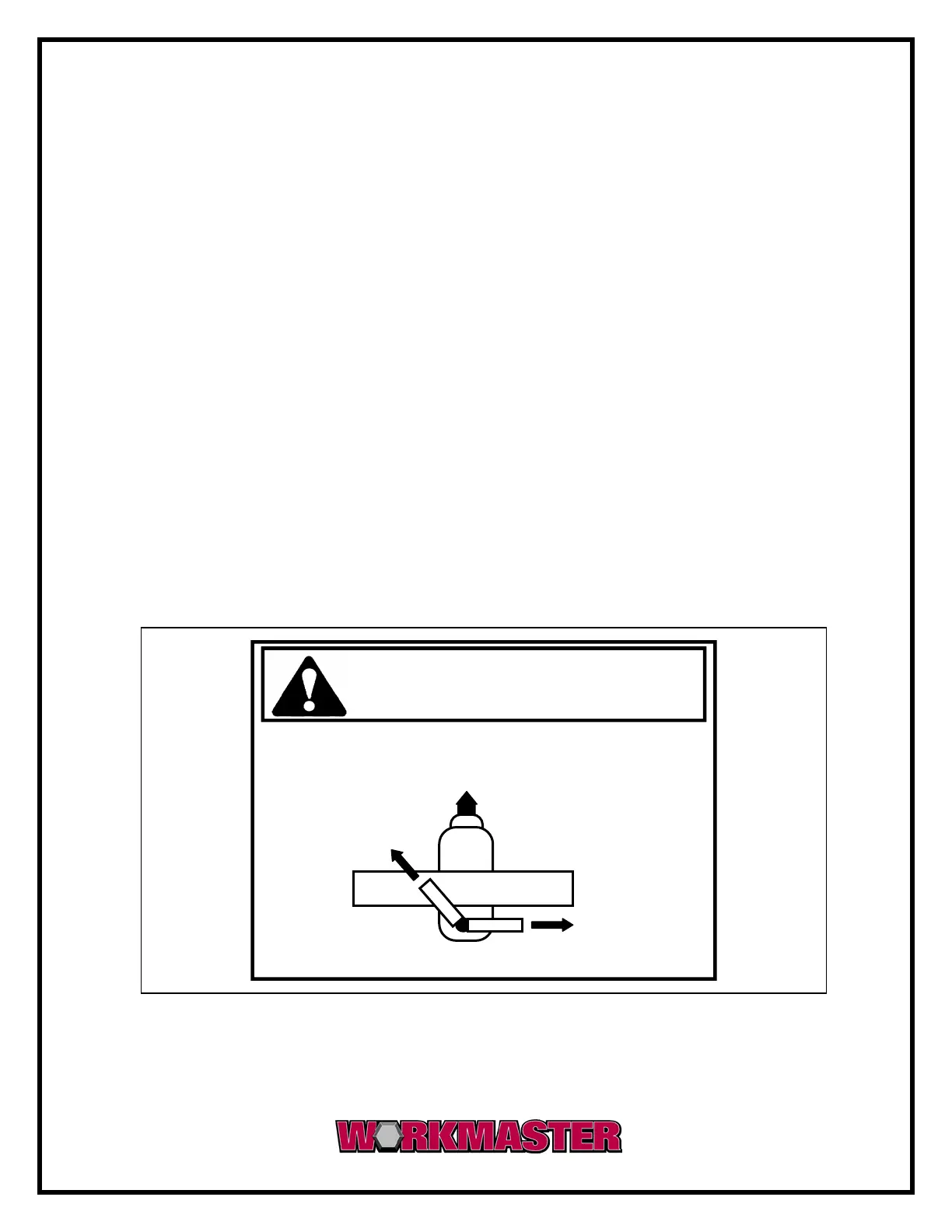

Figure 2: Forward/Reverse Label
CAUTION
RIGHT
3:00
LEFT
11:00
Directional Shaft Indicator
