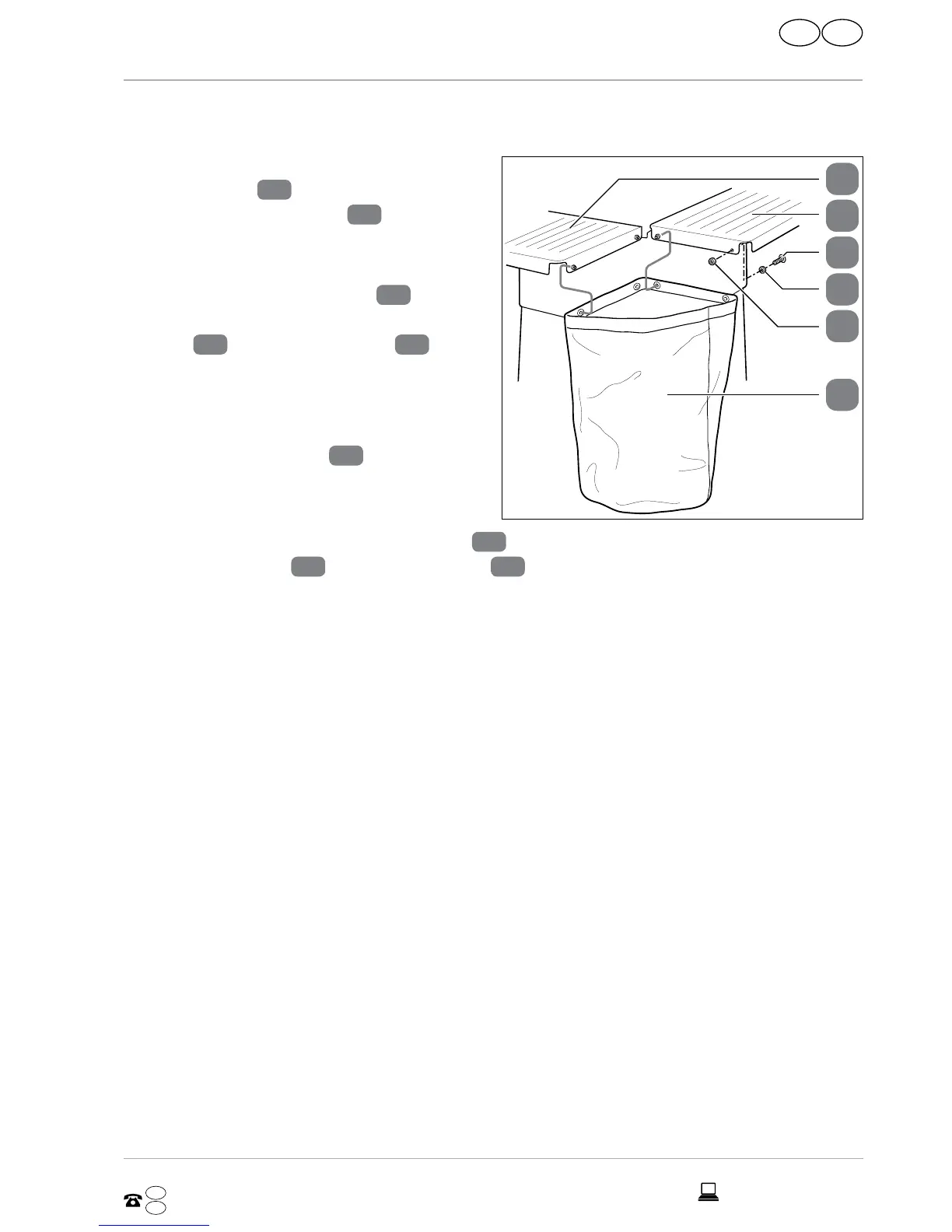

Mounting the waste bag
The waste bag is hooked onto the back left of the saw table and serves to collect
smaller cutting rests.
1. Screw a nut
29
onto each of
the four carriage bolts
23
.
2. From the inside, insert the four screws
through the holes at the back on the
left table width extension
2
and on
the left side of the table length exten-
sion
3
and screw one nut
28
on
each from the outside.
3. Use an AF 8 ring and open-ended
spanner to tighten the nuts.
4. Hook the waste bag
15
onto the car-
riage bolts from the inside.
You should now have two carriage bolts
22
left. Store them well; they are needed to
mount the stop rail
14
on the cross guide
19
.
You have now successfully completed initial assembly.
3
2
23
29
28
15
