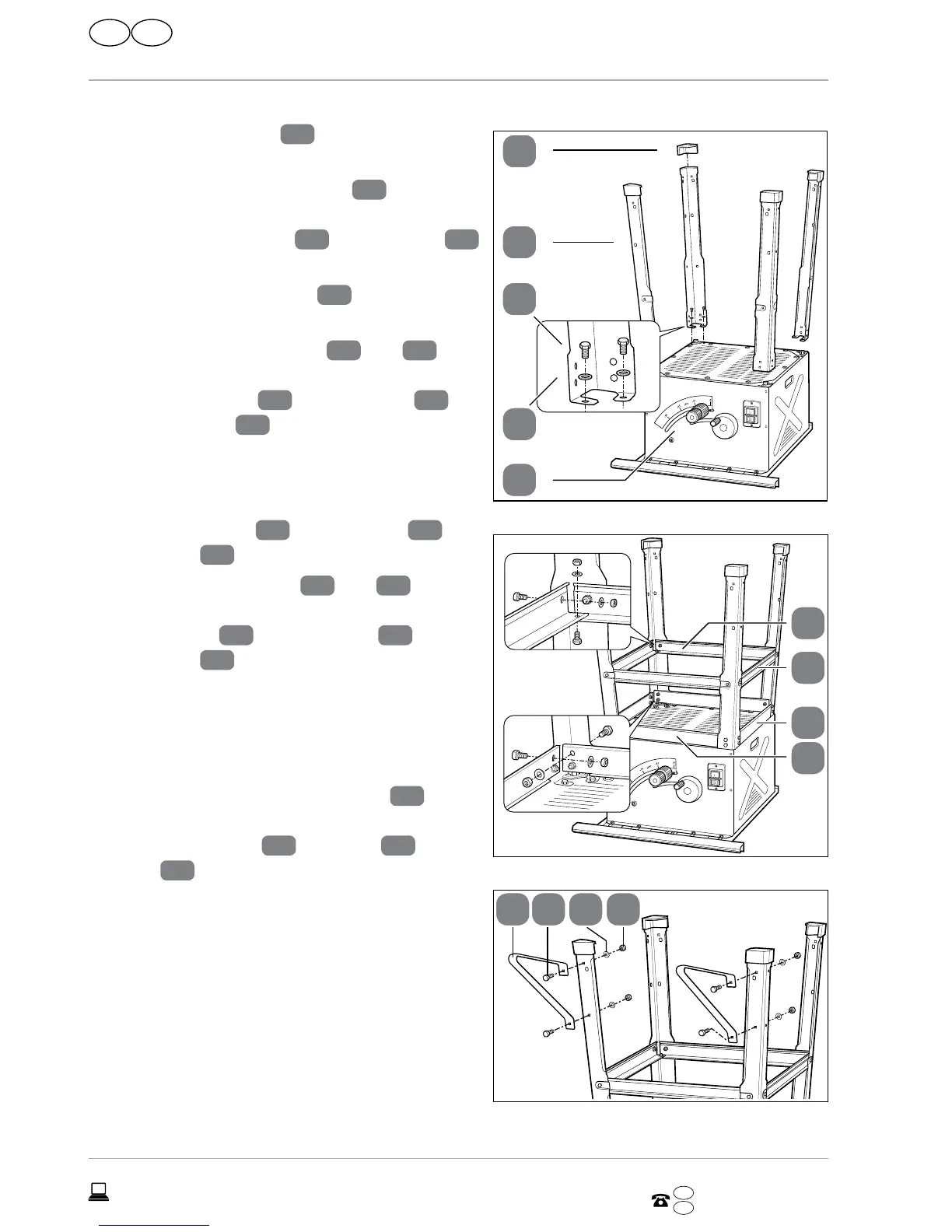

Assembling the underframe
1. Turn the saw table
1
over and place it
on the floor.
2. Screw the four support legs
4
loosely
onto the bottom of the saw table using
two hexagon screws
24
and washers
27
each.
3. Attach one rubber foot
12
to each of the
support legs.
4. Screw the centre braces
5
and
6
loosely onto the support legs using two
hexagon screws
24
, two washers
27
and two nuts
26
each. Mount the longer
ones lengthwise and the shorter ones
cross-wise.
5. Screw the centre braces together using four
hexagon screws
24
, four washers
27
and
four nuts
26
.
6. Screw the top braces
9
and
10
loosely
onto the support legs with four hexa-
gon screws
24
, four washers
27
and
four nuts
26
each. Mount the longer
ones lengthwise and the shorter ones
cross-wise.
7. Now tighten all screws for assembly steps
2 to 6 in this order.
8. Screw the two upright brackets
11
on the back support legs tight with two
hexagon screws
24
, washers
27
and
nuts
26
each.
The upright brackets will prevent the
table saw from tipping back if too much
pressure is applied to the saw.
1
27
24
4
12
5
6
9
10
11 24 2627
