Turning the saw on and off
WARNING!
Risk of injury.
− Before pushing the on switch, make sure the saw blade is cor-
rectly mounted and that mobile parts move freely.
− To switch the saw on, push the green power switch “I”
34
.
The motor will start. Wait until the saw blade has reached the maximum speed
before sawing.
− To switch the table saw back off, push the red power switch “0”
34
.
Caution: The saw blade will continue to rotate for some time. Only leave the table
saw unattended once the saw blade has come to a stop.
Cutting depth
Use the handwheel
32
to set the saw blade to the desired cutting depth:
− Turn counterclockwise: Increase the cutting depth.
− Turn clockwise: Reduce the cutting depth.
Setting the angle
1. Turn the front part of the adjusting and locking handle
31
approx. one rotation in
a counterclockwise direction to loosen it.
2. With the back part of the adjusting and locking handle, set the desired angle on
the scale.
3. Turn the front part until it is tight again.

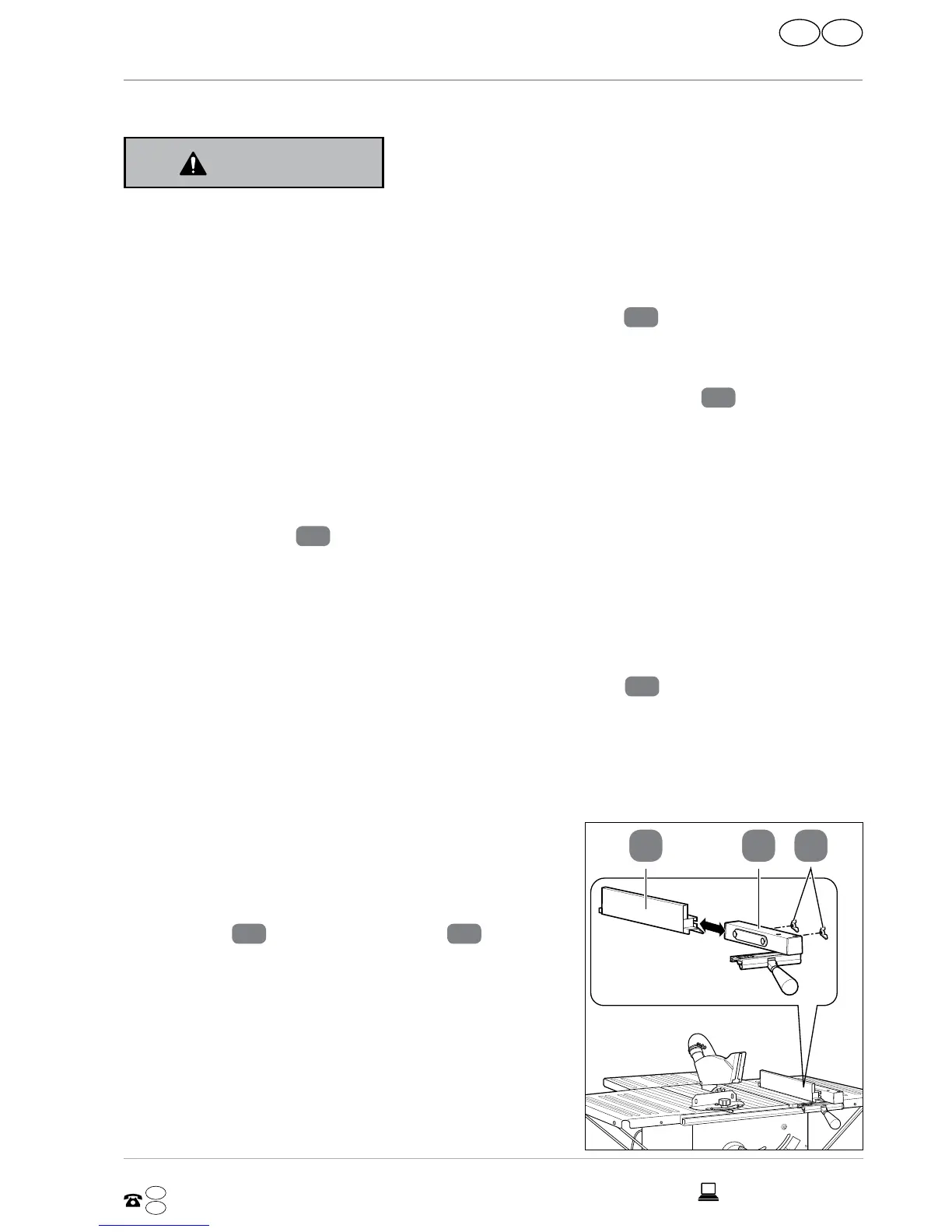

Parallel guide
Stop height
The stop rail
14
of the parallel guide
13
has two
guide surfaces of different height. Depending on
the thickness of the materials to be cut, turn the
stop rail into an upright position for thick material
(workpiece thickness over 25mm) and into a flat
position for thin material (workpiece thickness un-
der 25mm).
14 13 41
