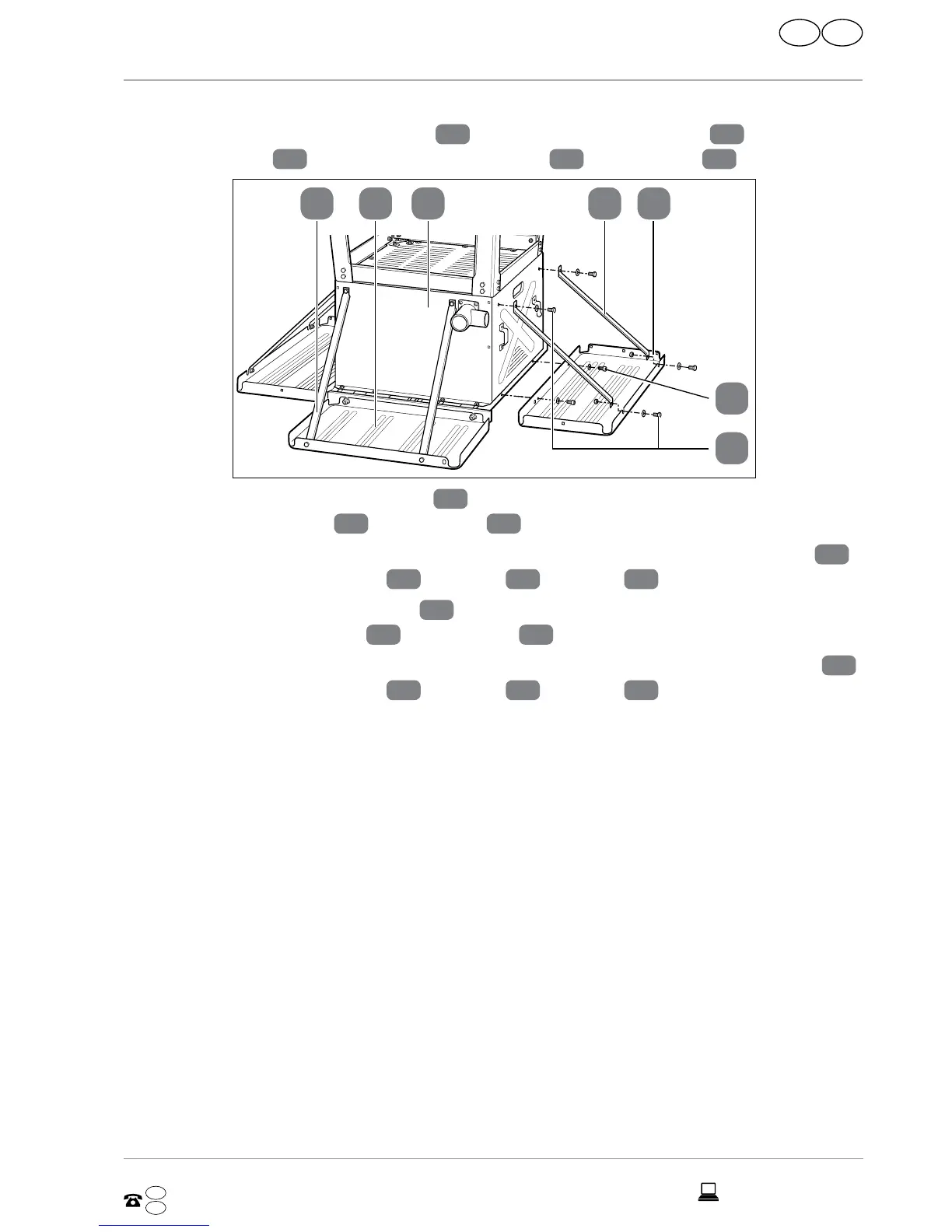

Mounting the table extensions
1. Screw the table width extensions
2
and table length extension
3
loosely onto
the saw table
1
with two Allen head screws
25
and washers
27
each.
2137 8
25
26
2. Screw the 36.5 cm table supports
8
loosely onto the sides of the saw table using
two hexagon screws
24
and washers
27
each.
3. Screw the other end of the table supports loosely onto the table width extensions
2
using two hexagon screws
24
, washers
27
and nuts
26
.
4. Screw the 48 cm table supports
7
loosely onto the back end of the saw table us-
ing two hexagon screws
24
and washers
27
each.
5. Screw the other end of the table supports loosely onto the table length extension
3
using two hexagon screws
24
, washers
27
and nuts
26
each.
6. Align the table width and length extensions so that they are level with the saw ta-
ble and tighten all screws.
7. Carefully turn the table saw over and set it upright with its legs on the ground.
