Worx WG183 User Manual

9
EN
Cordless Grass Trimmer
ASSEMBLY & OPERATION
ACTION FIGURE
Assembly
Assembling the Trimmer Shaft See Fig. A
Assembling the Auxiliary Handle See Fig. B
Assembling the Safety Guard See Fig. C
Installing and Removing the Battery
Pack
NOTE:
• This machine will only run
when 2 batteries are installed.
It is recommended to use the
same two batteries and charge
the two batteries at the same
time.
• When you use two batteries
with different power, the
machine will only run to the
lower common denominator.
See Fig. D1, D2
Charging the battery pack
NOTE:
• The batteries are shipped
uncharged. Each battery must be
fully charged before the first use.
• Always fully charge the two
batteries at same time. More
details can be found in charger’s
manual.
See Fig.D3
Battery power indicator on the
machine
See details in BATTERY STATUS
section
See Fig.D4
OPERATION
On/Off Switch
WARNING! The cutting head
continues to rotate after the
trimmer has been switched off;
wait until it has completely stopped
then lay down the tool.
See Fig. E
Trimming See Fig. F
-Adjusting the Auxiliary handle See Fig. G
Manually feeding the line See Fig. H
Removing the Cap See Fig. I
Cutting Head See Fig. J
Changing the line spool See Fig.K,L

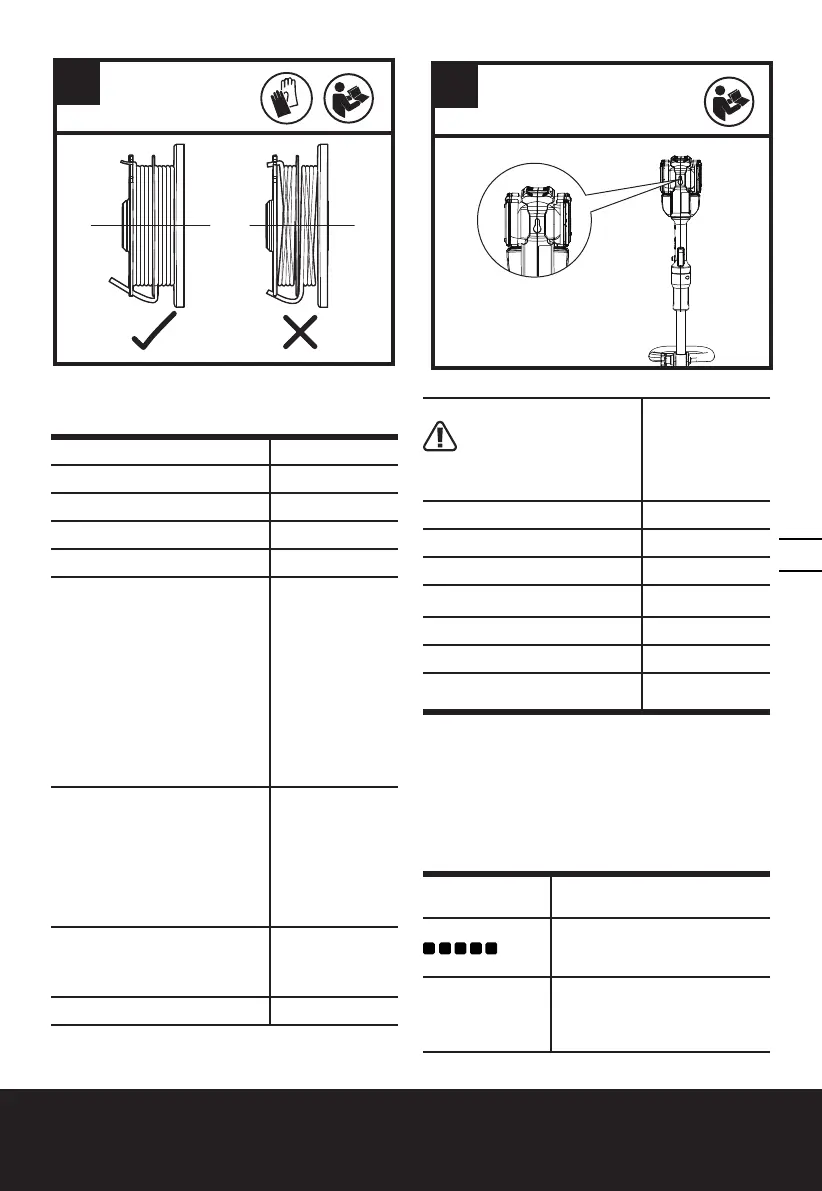

Manually winding the line See Fig. M,N,O,P
BATTERY STATUS (See Fig. D4)
Before starting or after use, press the button beside the
power indicator light on the machine to check the battery
capacity. During operation, the battery capacity will be
indicated automatically by the battery power indicator.
The indicator constantly senses and displays the battery
condition as follows.
For the machine with 2 battery packs with different power,
the power indicator light displays the battery condition
with the lower one of the two batteries.
Battery power
indicator status
Battery condition
Five green lights (
) are
illuminated.
The two batteries are in a highly
charged condition.
Two, three or four
green lights are
illuminated.
The two batteries have a remaining
charge. The more lights are
illuminated, the more battery
capacity.
Q
13
14
15
16
J
N
P
L
1
2
12
K
I
O
M
One click!
H
