WPT POWER PILOTLESS - SP Style Sliding Sleeve Assembly Exploded View

Page 10 of 39 WIM-TD-002_C

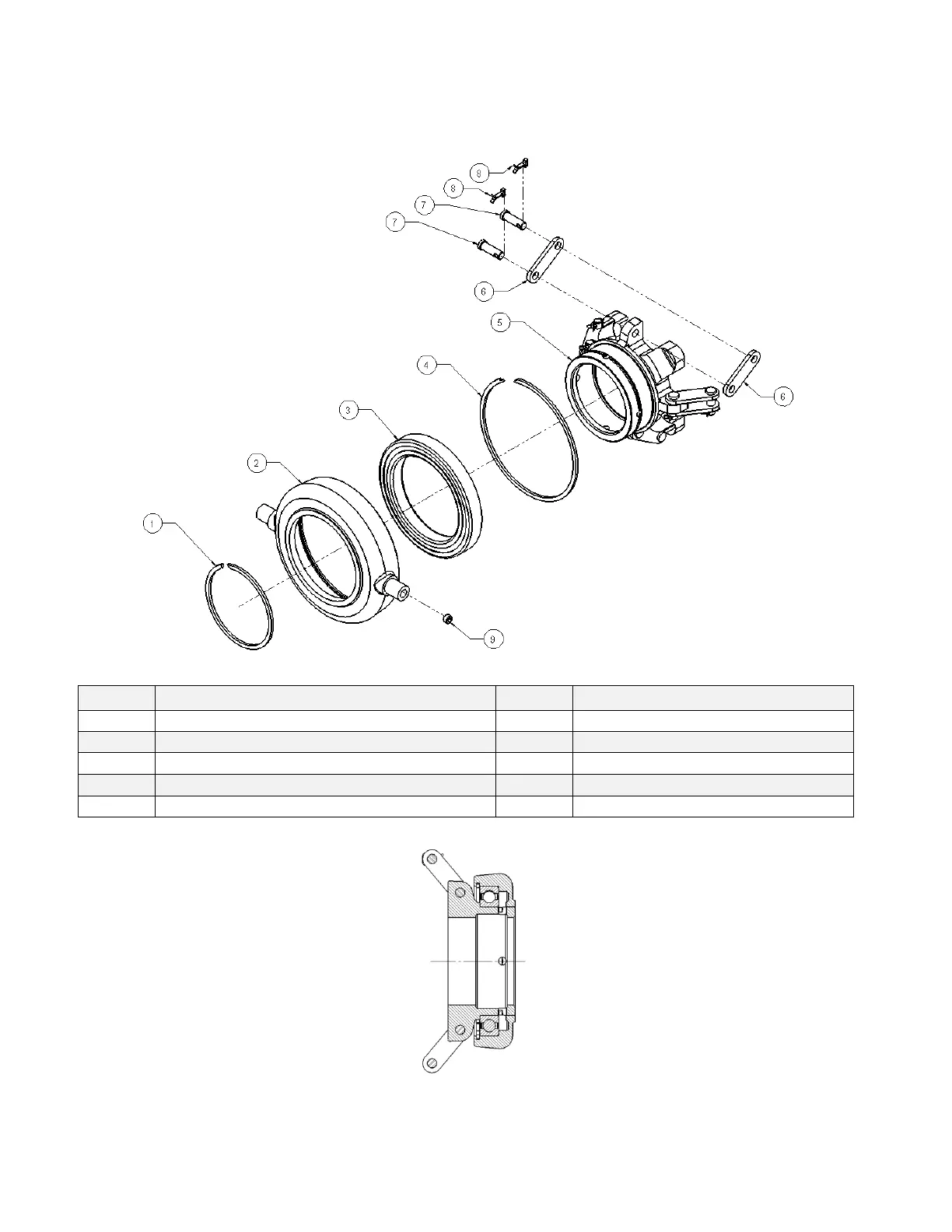

SLIDING SLEEVE ASSEMBLY
“SP” Style Ball Bearing assembly available in sizes 11”- 14”
Item
Description
Item
Description
1
Retainer Ring (Inner)
6
Link
2
Collar
7
Clevis Pin
3
Sealed Ball Bearing
8
Cotter Pin
4
Retainer Ring (Outer)
9
Plug
5
Sliding Sleeve
