6.1.3 Clutch Pack Assembly
6.1.3.1 Put friction disc on backplate.
(FOR SINGLE PLATE CLUTCH PROCEED TO STEP #6.1.3.6 FOR "SP" OR #6.1.3.11 FOR "C" STYLE)
6.1.3.2 Place center plate on hub, being careful to align teeth with hub teeth.
6.1.3.3 Put 2nd friction disc on center plate.
(FOR 2 PLATE UNIT PROCEED TO STEP #6.1.3.6 FOR "SP" OR #6.1.3.11 FOR "C" STYLE)
6.1.3.4 Place 2nd center plate on hub.
6.1.3.5 Put 3rd friction disc on center plate.
(FOR "C" STYLE CLUTCH GO TO ITEM #6.1.3.11)
6.1.3.6 For "SP" style install floating plate on hub and backplate assembly. Place spring &
adjusting lock pin into floating plate, then screw adjusting ring on hub to secure
floating plate.

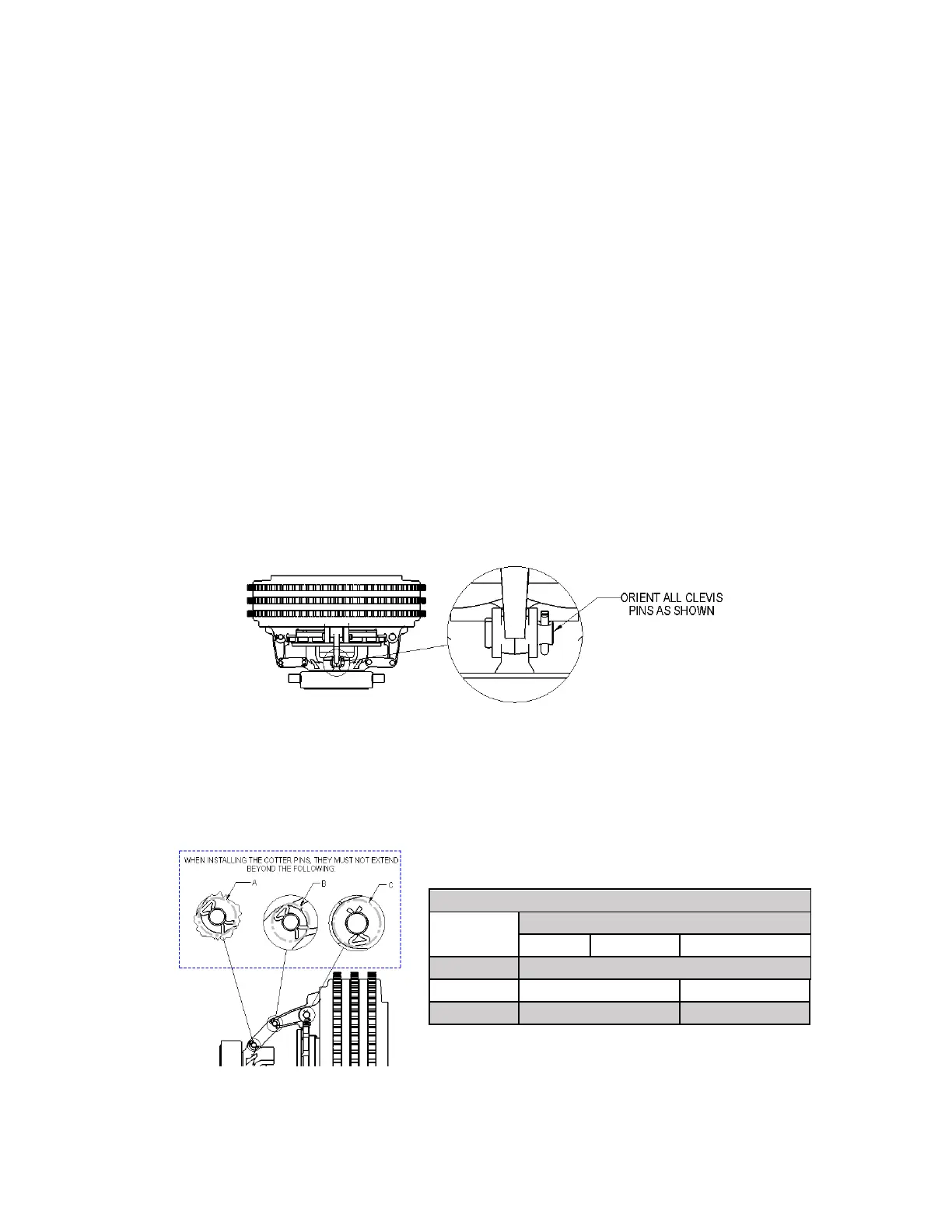

6.1.3.7 Assemble finger levers to floating plate using spring washers, clevis pins and cotter
pins. See Figure 8 & 9 for direction of clevis pins and positioning of cotter pins.
***IMPORTANT***ORIENT ALL CLEVIS PINS AS SHOWN
Figure 8
6.1.3.8 Assemble lever links, clevis pins and cotter pins to sliding sleeve. See Figure 8 & 9 for
direction of clevis pins and positioning of cotter pins.
***IMPORTANT***ALL COTTER PINS MUST NOT EXTEND BEYOND THE RADIUS
Radius dimensions shown in A, B & C
UNIT SIZE
COTTER PIN LOCATION
A
B
C
6” & 7”
0.30” [7.62]
8” 10” 11”
0.30” [7.62]
0.47” [11.94]
14”
0.47” [11.94]
0.59” [14.99]
Figure 9
6.1.3.9 Install collar assembly to sliding sleeve.
