WPT POWER PILOTLESS - Exploded Views; C Style Sliding Sleeve Assembly Exploded View

Page 6 of 39 WIM-TD-002_C
2.0 EXPLODED VIEWS

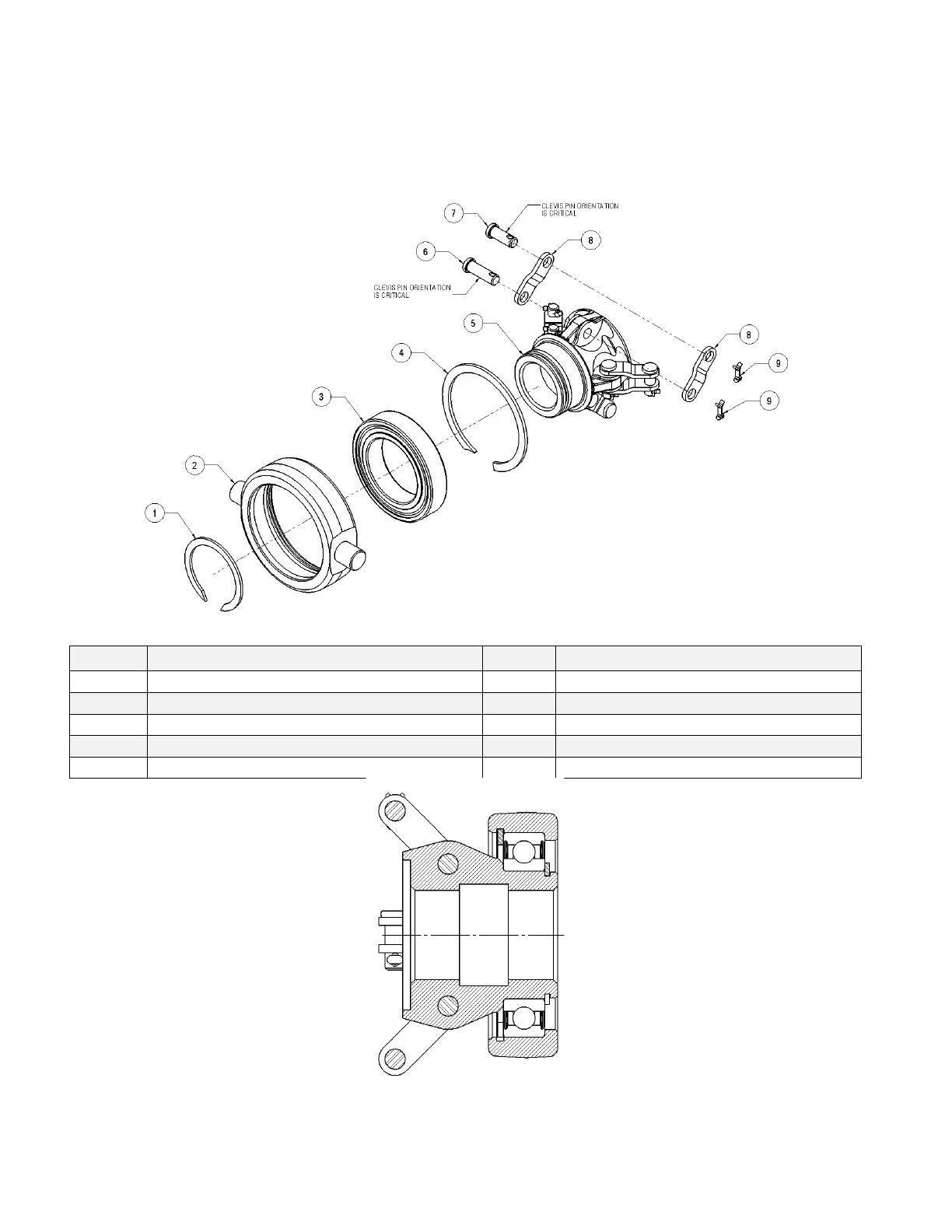

“C” Style Ball Bearing sliding sleeve assembly
Available in sizes 6” - 10”
Item
Description
Item
Description
1
Retaining Ring
6
Clevis Pin
2
Collar
7
Clevis Pin
3
Ball Bearing
8
Link
4
Retaining Ring
9
Cotter Pin
5
Sliding Sleeve
