DigiReader Series
8 P/N 6600025, REV. D
RECOMMENDED S-NET CABLE
The type of cable used for the S-Net will depend on the total length and the number of devices
connected. Table 5 lists WSE-recommended cables:

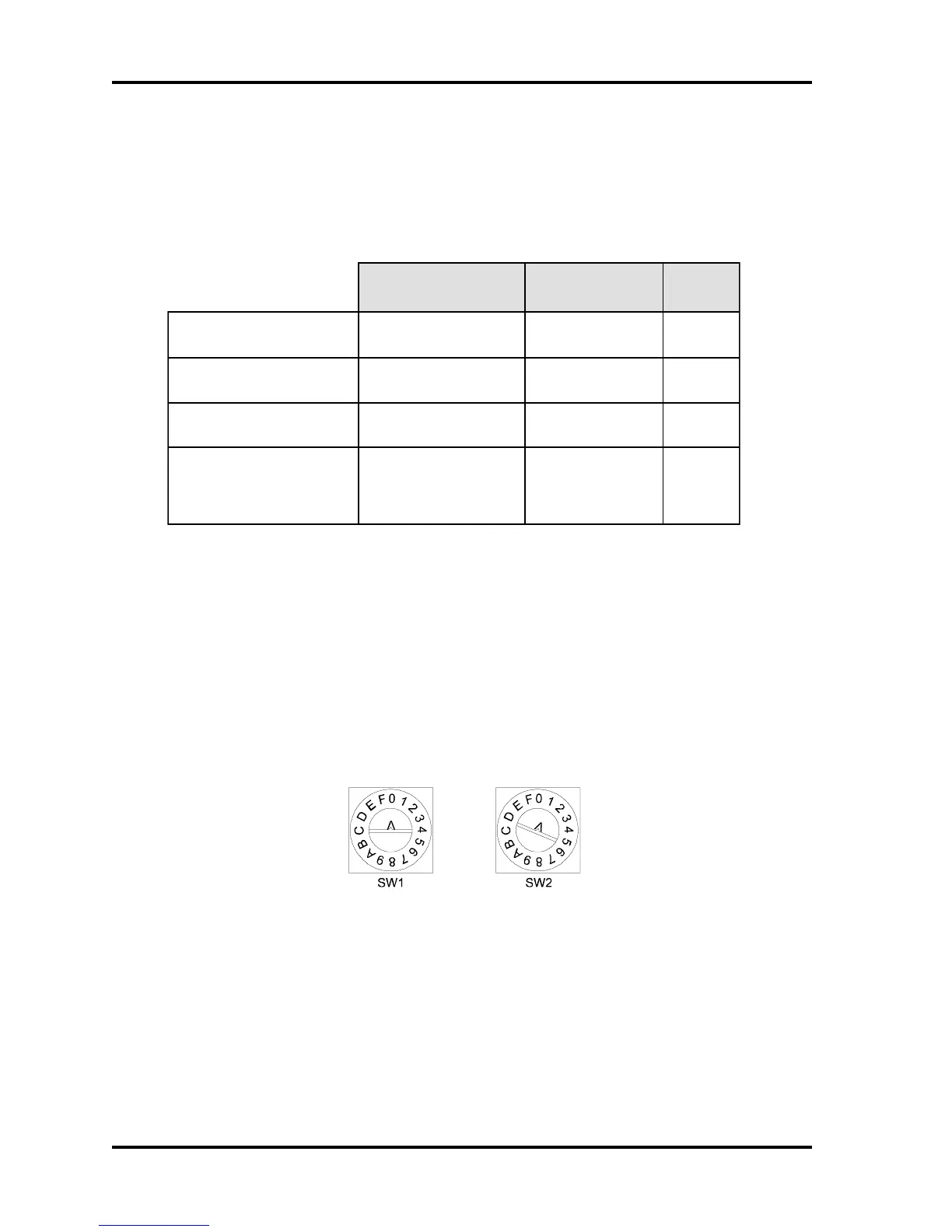

Table 5: Recommended S-Net Cable
DIGIREADER ADDRESS SWITCHES
Rotary Address Switches for DR4200K, DR4203, and DR4205 (all models)
Each DigiReader must have a unique address. The DR4200K, DR4203, and DR4205 (all models)
DigiReaders use two address switches S1 and S2, (as shown in Figure 3):
Figure 3: Address Switches for DR4200K, DR4203, and DR4205 (all models)
• Switch SW1 is used to select the special reader modes of operation, (as shown in Table 6).
SW1 is set to 0 (factory default setting) for S-Net operation and F for Wiegand operation.
• Switch SW2 is used to set the Reader/Door address, and, with SW1 set to F, for additional
options, including (SW2 = A or B) the Wiegand number of bits. SW2 has a factory default
setting of 1, but it may be set to any address from 1 to F (15). A 16th DigiReader address is
provided by setting switch SW2 to 0 and switch SW1 to 8 (for Normal Mode), or C, D or E (for
DR4205K PIN/Credential Mode - see below).
ERUTCAFUNAM
LACISYHP
NOITPIRCSED
EGUAG
.tF0004<rewoPdnaataD
elbaC&eriWtsewhtuoS
yarG/971WS
ataD:rotcudnoC2
rewoP:rotcudnoC2
GWA22
GWA61
.tF005<rewoPdnaataD
2559nedleB
9601nedleB
dedleihSriaP-2
GWA81
GWA61
.tF005>ylnOataD1489nedleBdedleihSriaP-1GWA42
.tF005>ylnOrewoP
1439nedleB
2431nedleB
3439nedleB
rotcudnoC2
GWA81
GWA61
GWA41
