DigiReader Series
P/N 6600025, R
EV. D 1
INTRODUCTION
The DigiReader Series is a family of Digital Proximity Readers (DigiReaders). (Graphic represen-
tations of the DigiReader Series —not to scale— are shown in figure 1, below, and figure 2, on page
5.) DigiReaders are bi-directional security devices that read digital credentials, (from either side of
the sensor), at ranges from 1 to 20 inches (2½ to 51 cm), depending upon the model and the
environmental conditions. DigiReaders are used with the NexSentry 4100, 4102, 4104, Star I and
Star II (4100 Series), SE818SC and SE422 Access Control Units (ACUs), with the ACUs either
operating as stand-alone devices or operating in conjunction with a StarGaze, a NexSentry Manager
(NSM), a NexSentry Command Center (NSCC), (an SE6000), or an SE5850, WSE Access Control
Host System. Connection between a DigiReader and an ACU is over the WSE proprietary S-Net
interface or over a Wiegand interface to a Wiegand ACU. (The Wiegand data can be either 26- or
34-bit Wiegand standard.) (Also included in the DigiReader Series is a keypad-only reader, the
DR4200K, which is the only family member available with the analog 818SX ACU.)
CAUTION 1.
Read this manual carefully before attempting to wire in place a DigiReader.
The warranty is void if damage occurs to the unit as a result of incorrect
wiring.
CAUTION 2. The information in this manual is not intended to conflict with the building codes,
electrical codes, fire codes, or safety codes required for any given installation.
In all cases, the prevailing building codes must take precedence.
DR4201
DR4203
DR4205/DR4208S
DR4205K/DR4200K
DR4220

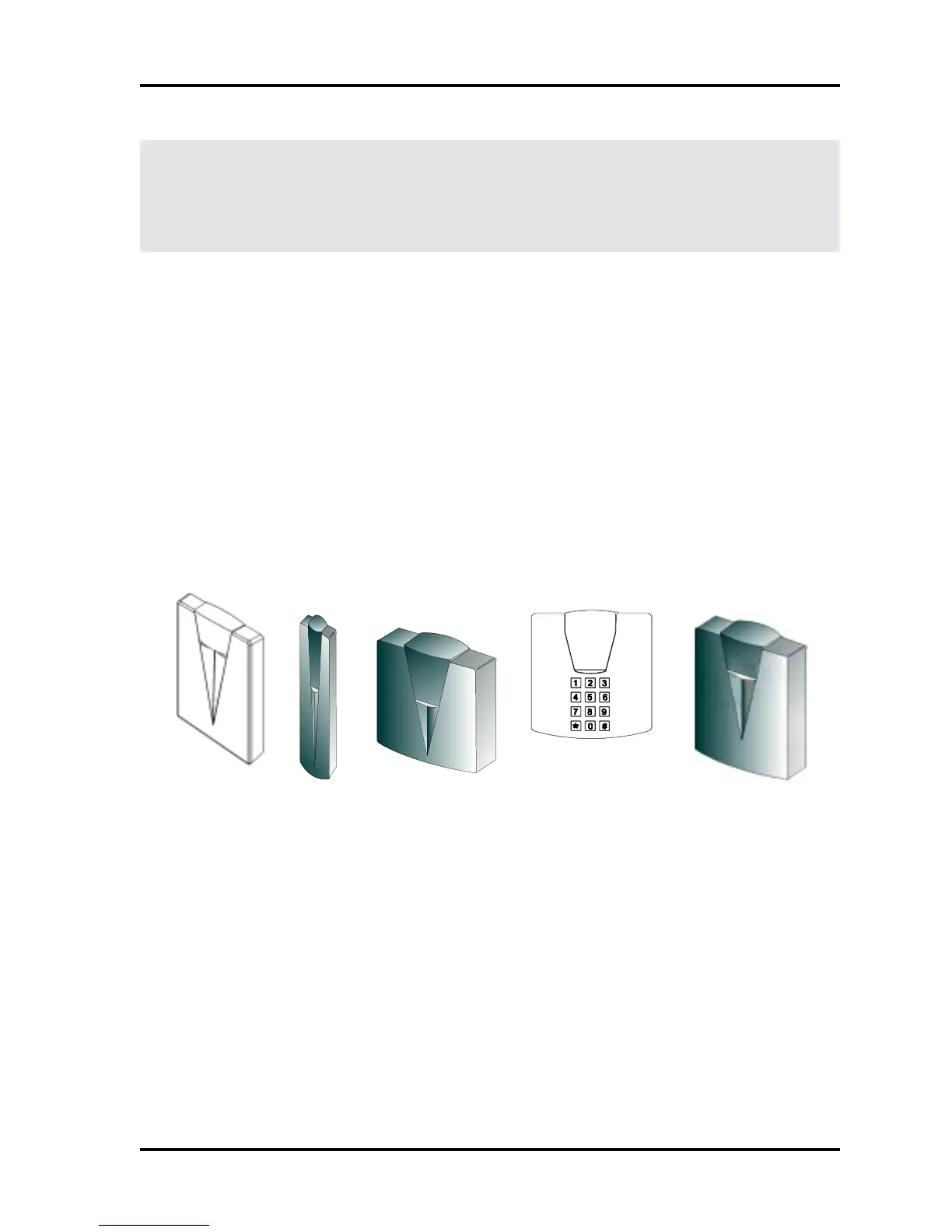

Figure 1: The Different DigiReader Models (Not to Scale)
