DigiReader Series
18 P/N 6600025, REV. D

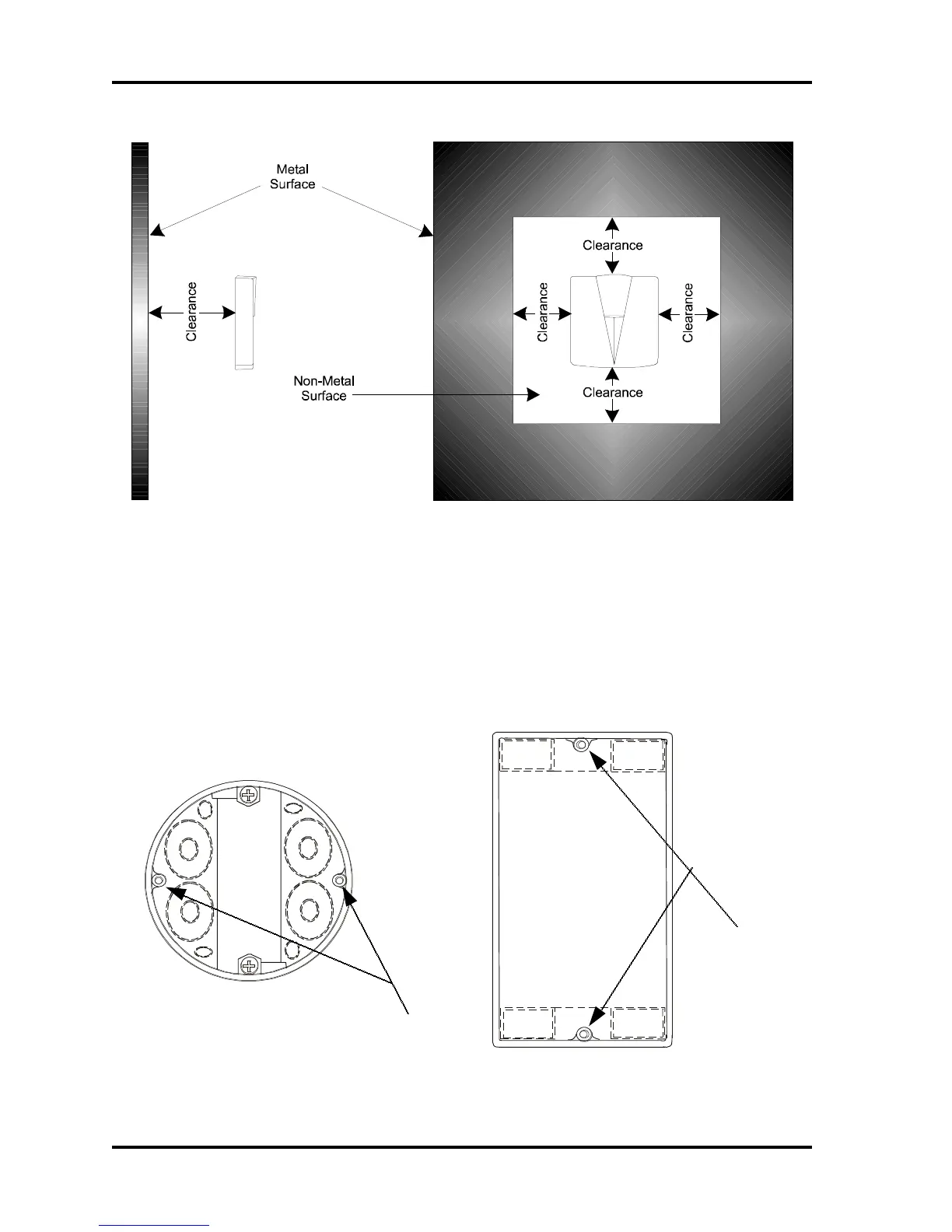

Figure 7: Mounting (DR4205 and DR4208S) For Optimum Read Range With Metal In The Vicinity
SPECIAL MOUNTING LOCATION: DR4201 READER
The DR 4201 reader is designed to be mounted in a single-gang wiring box, (European or US), as
shown in figures 8 and 9, below, although it can be otherwise mounted. (Especially when mounted
outdoors, we recommend using a caulking compound around the edges of the unit after mounting.)
Figure 8: European and US Gang Box Mounting Holes Indicated
European
Mounting Holes
US Mounting
Holes
