DigiReader Series
P/N 6600025, R
EV. D 23
DR4203
DR4205 Series and DR4208S

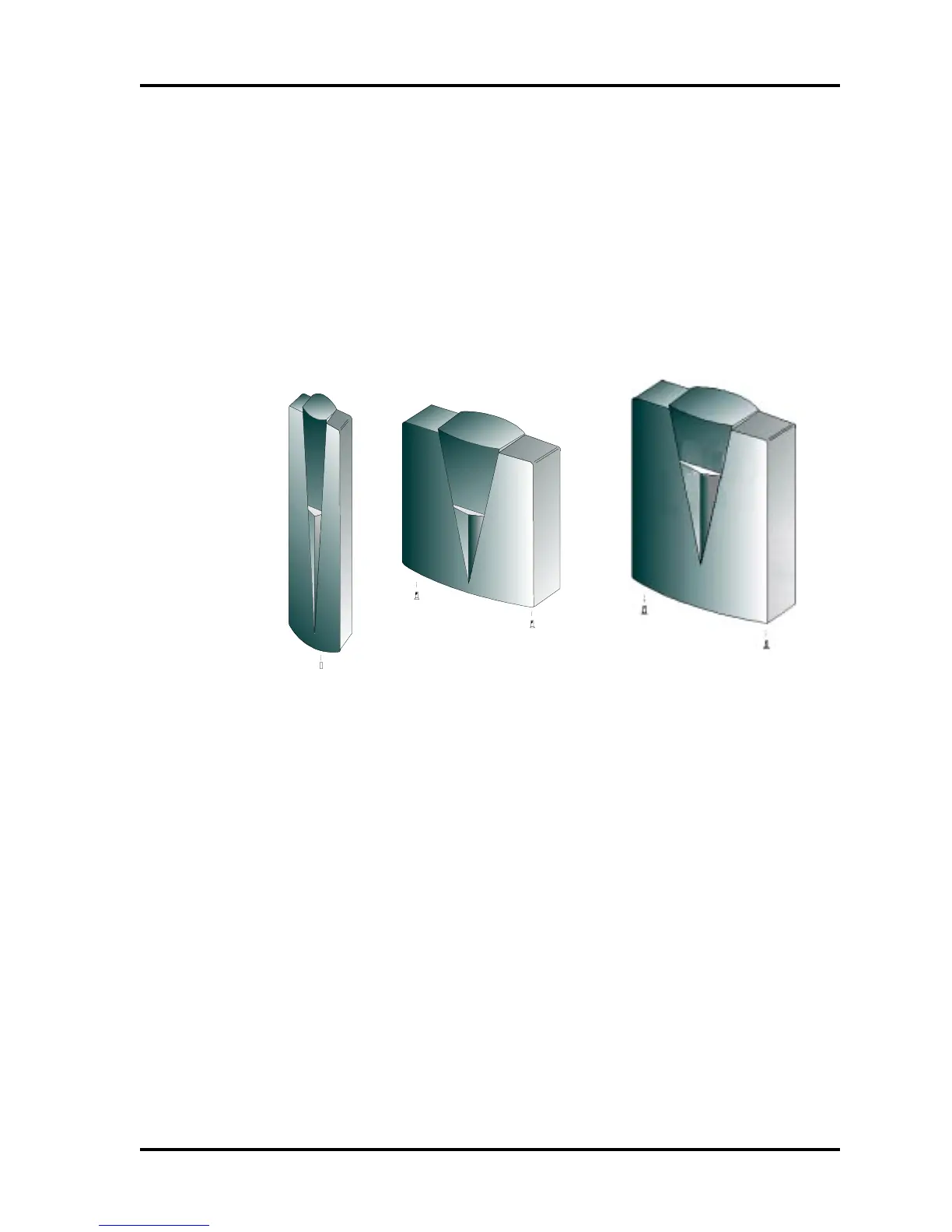

Figure 12: Securing The DR4203, DR4205 Series, DR4208S, and DR4220 Covers
WALL MOUNTING WITH SCREWS
DR4203, DR4205 SERIES, DR4208S, AND DR4220
• Mount the reader base to the wall. Use the WSE-supplied, 1 1/4" Flathead, #6-32 thread or
other means appropriate to the wall composition.
• Put the DigiReader cover in place and secure the cover with the supplied screw(s) from the
bottom.
