ENGINE
WG972-E4, WSM
1-S61

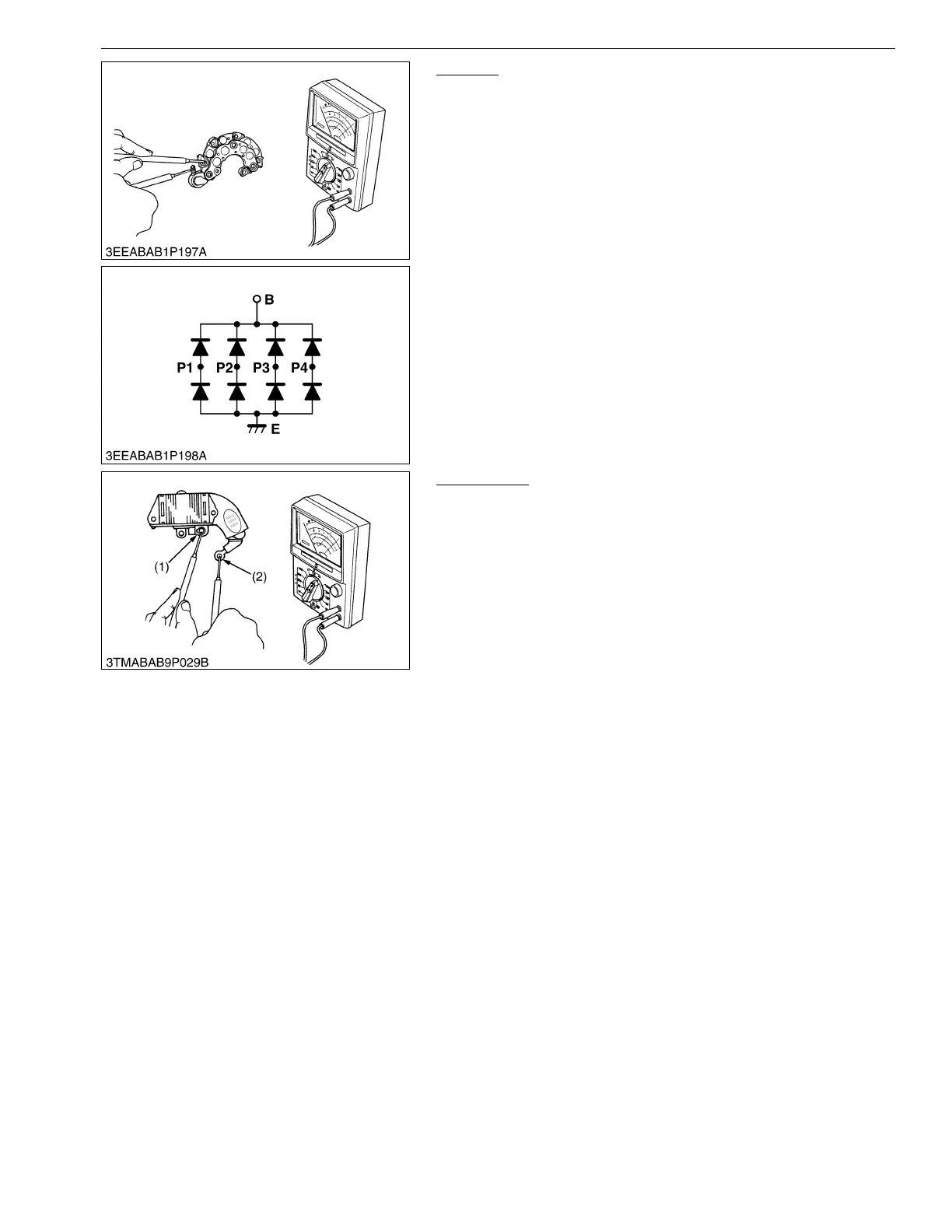

Rectifier
1. Check the continuity across each diode of rectifier with
resistance range of circuit tester.
2. The rectifier is normal if the diode in the rectifier conducts in one
direction and does not conduct in the reverse direction.
9Y1211108ENS0113US0
IC Regulator
1. Check the continuity across the B terminal (2) and the F
terminal (1) of IC regulator with resistance range of circuit tester.
2. The IC regulator is normal if the conducts in one direction and
does not conduct in the reverse direction.
9Y1211108ENS0114US0
(1) F Terminal (2) B Terminal
KiSC issued 07, 2015 A
