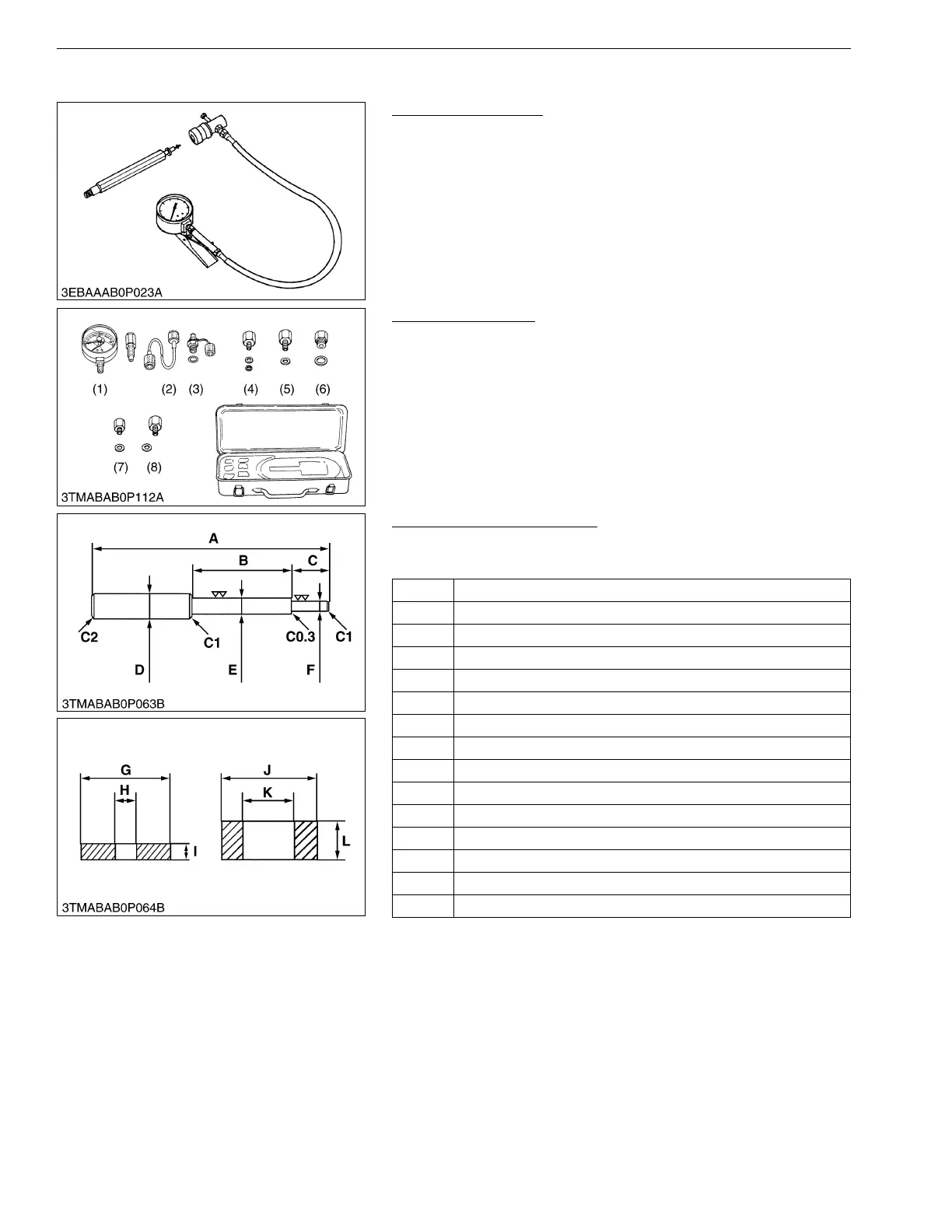

5. SPECIAL TOOLS
Compression Tester
Code No.
• 07909-30251
Application
• Use to measure gasoline engine compression and diagnose the
engine for a major overhaul.
9Y1211108GEG0008US0
Oil Pressure Tester
Code No.
• 07916-32032
Application
• Use to measure lubricating oil pressure.
WSM000001GEG0015US0
Valve Guide Replacing Tool
Application
• Use to press out and press fit the valve guide.
9Y1211108GEG0009US0
(1) Gauge
(2) Cable
(3) Threaded Joint
(4) Adaptor 1
(5) Adaptor 2
(6) Adaptor 3
(7) Adaptor 4
(8) Adaptor 5
A 200 mm (7.87 in.)
B 80 mm (3.1 in.)
C 40 mm (1.6 in.)
D 20 mm dia. (0.79 in. dia.)
E 9.960 to 9.980 mm dia. (0.3922 to 0.3929 in. dia.)
F 5.50 to 5.70 mm dia. (0.217 to 0.224 in. dia.)
G 15 mm (0.59 in.)
H 6.00 to 6.10 mm dia. (0.237 to 0.240 in. dia.)
I 5 mm (0.2 in.)
J 18 mm dia. (0.71 in. dia.)
K 10.6 to 10.7 mm dia. (0.418 to 0.421 in. dia.)
L 7 mm (0.3 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
