[6] LOCK OFF VALVE (GAS LINE) [WG972-GL, WG972-L, WG972-N]
The lock off valve blocks off liquid fuel flow to
regulator by solenoid. Lock off valve has fuel filter and
liquid fuel comes to lock off valve after passing through
the filter. When applying current, the lock off valve closes
the fuel passage.
Lock off valve is assembled to regulator.
9Y1211108ENM0037US0

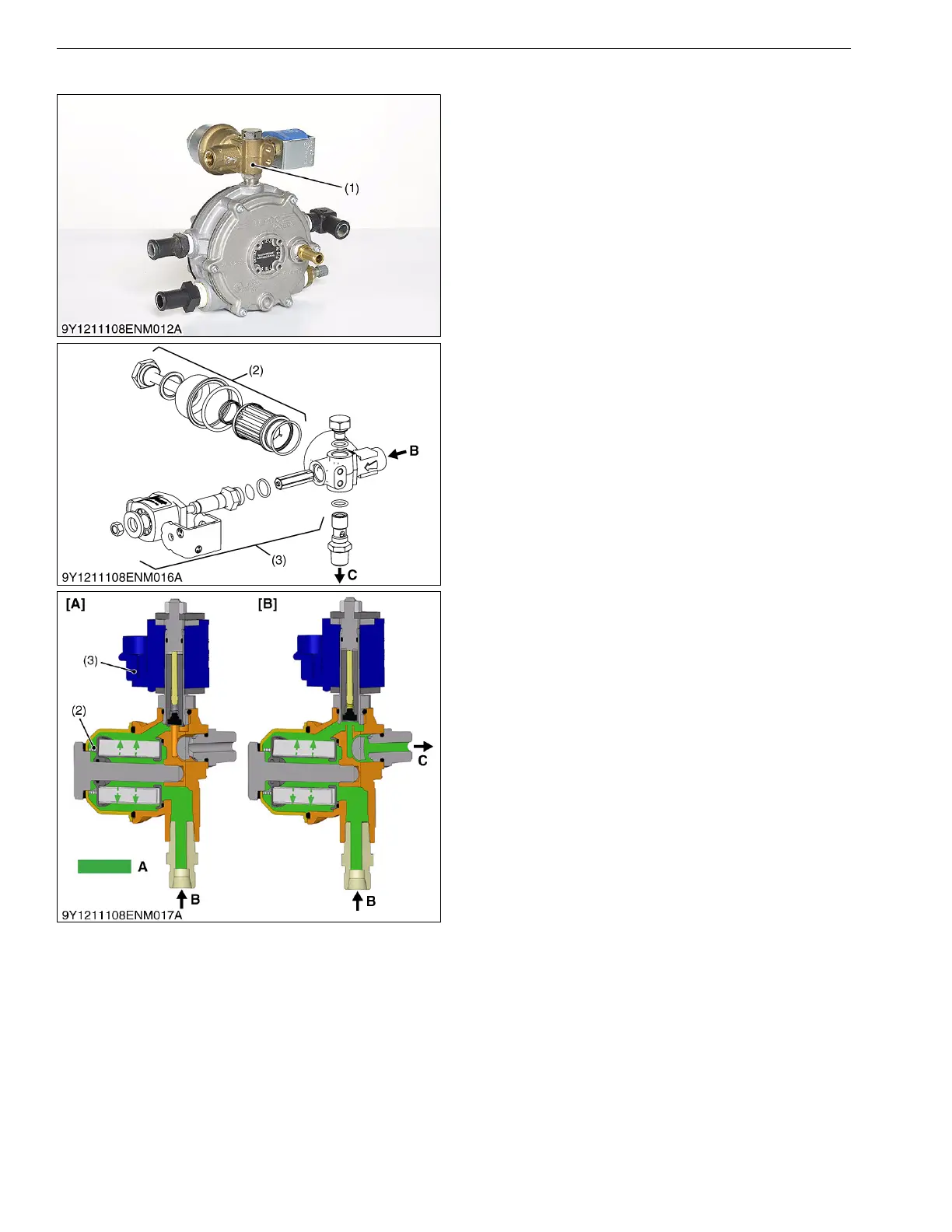

(1) Lock Off Valve
(2) Filter Part
(3) Valve Part
[A] Lock Off Valve "Close"
[B] Lock Off Valve "Open"
A: Fuel
B: Fuel In (From Fuel Tank)
C: Fuel Out (To Regulator)
