Installation
3–10 975-0128-01-01
Mounting the Inverter
Do not mount the inverter under the hood of your vehicle. See “Choosing
an Appropriate Location” on page 3–4.
To mount the inverter:
1. Make sure the On/Off switch is in the Off position.
2. Select an appropriate mounting location and orientation. The inverter
must be oriented in one of the following ways:
• Horizontally on a vertical surface. (Do not mount with the fan
pointing up or down.)
• On a horizontal surface.
• Under a horizontal surface.
3. Hold the inverter against the mounting surface, mark the positions of
the mounting screws, and then remove the inverter.
4. Pilot drill the four mounting holes.
5. Fasten the inverter to the mounting surface using corrosion-resistant
fasteners sized #10 or larger.

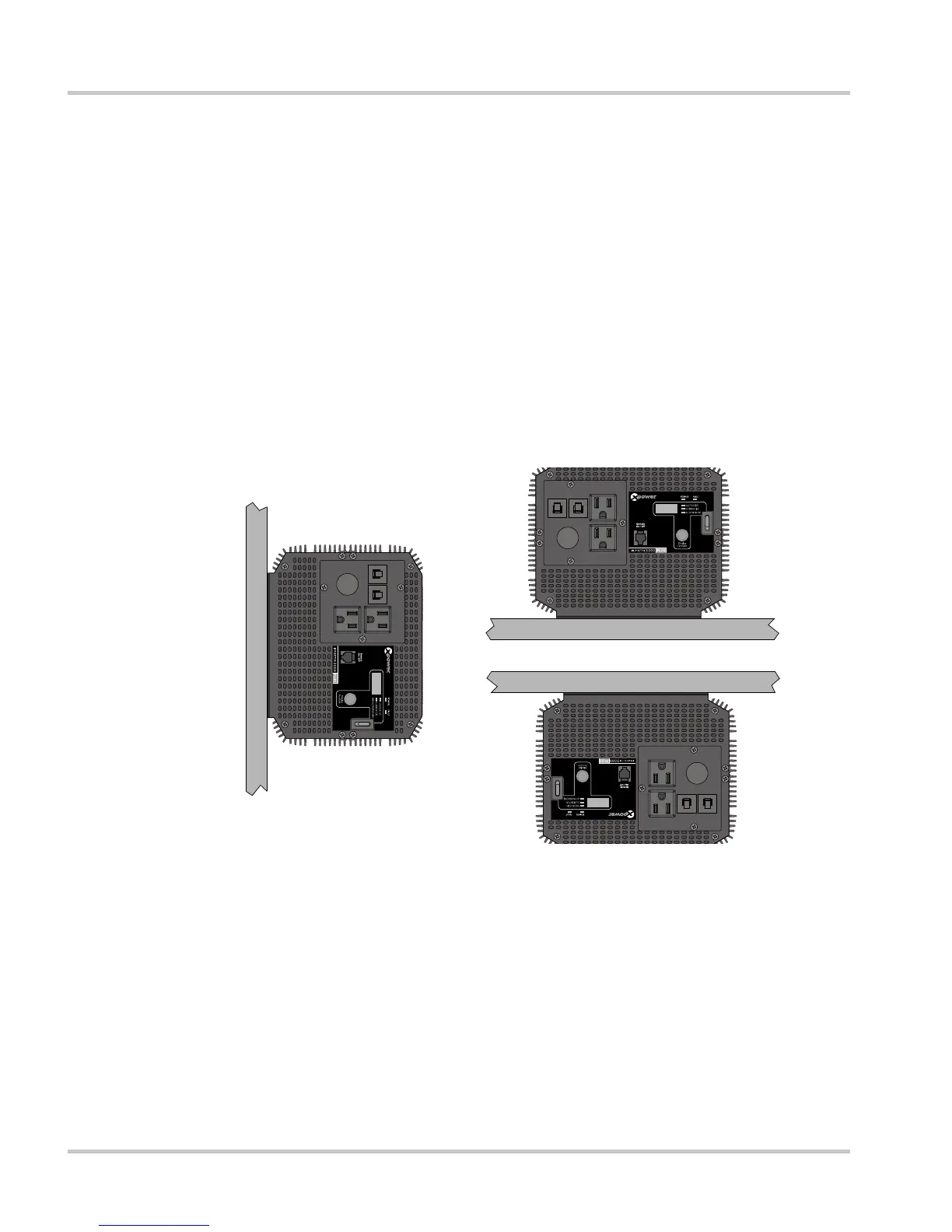

Figure 3-3
Approved Mounting Orientations
