Features
2–4 975-0128-01-01
DC Panel

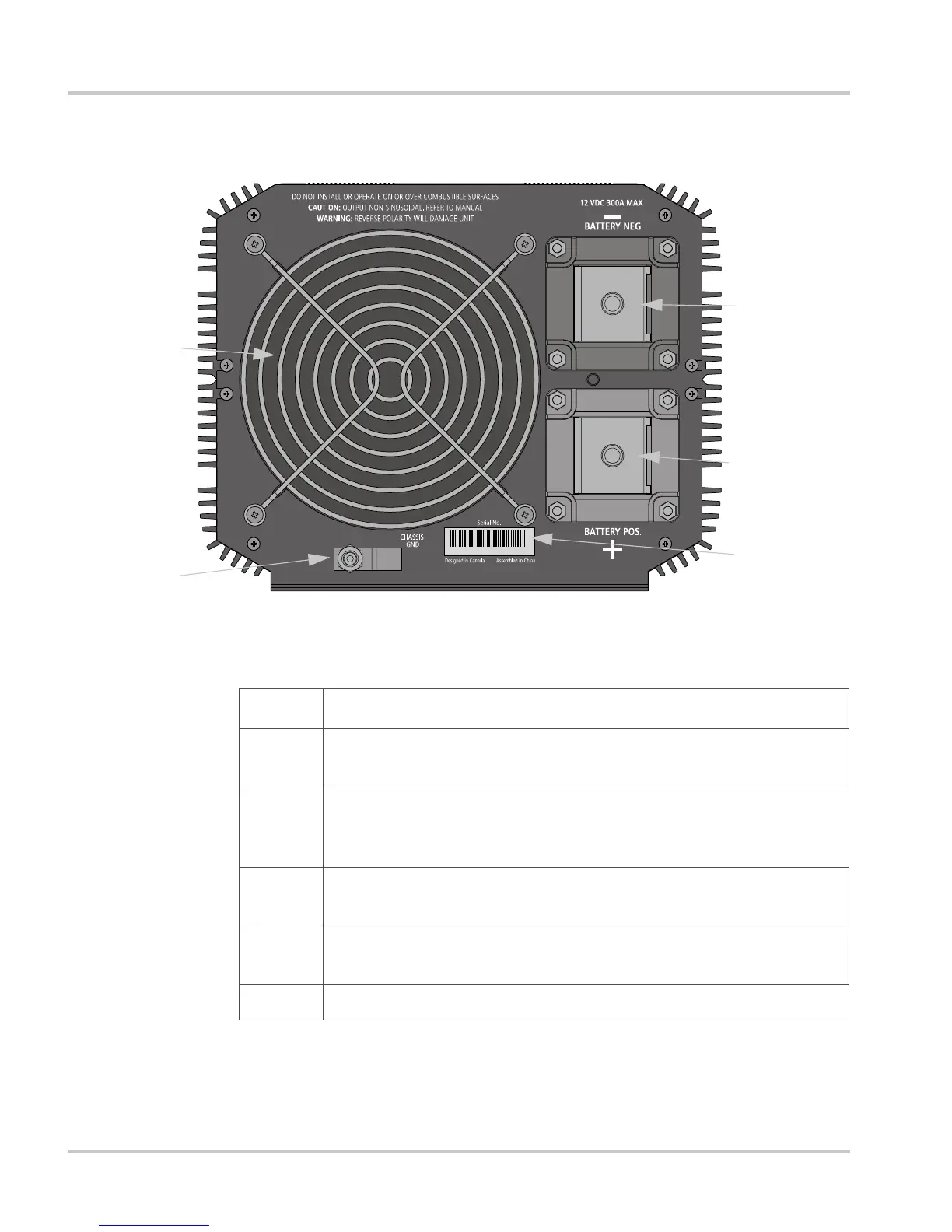

Figure 2-3
DC Panel
Feature Description
1 Chassis Ground Lug connects to vehicle chassis, DC grounding
bus or to engine’s negative bus.
2 Ventilation Opening must not be obstructed for the proper
operation of the inverter. When the inverter is mounted, the
ventilation opening on the DC panel must not point up or down.
3 Negative DC Cabling Terminal always connects to the cable
connected to the negative terminal of the battery.
4 Positive DC Cabling Terminal always connects to the cable
connected to the positive terminal of the battery.
5 Serial number of your inverter.
1
2
3
4
5
