Xantrex 3000 User Manual

Features
2–2 975-0128-01-01
AC Panel

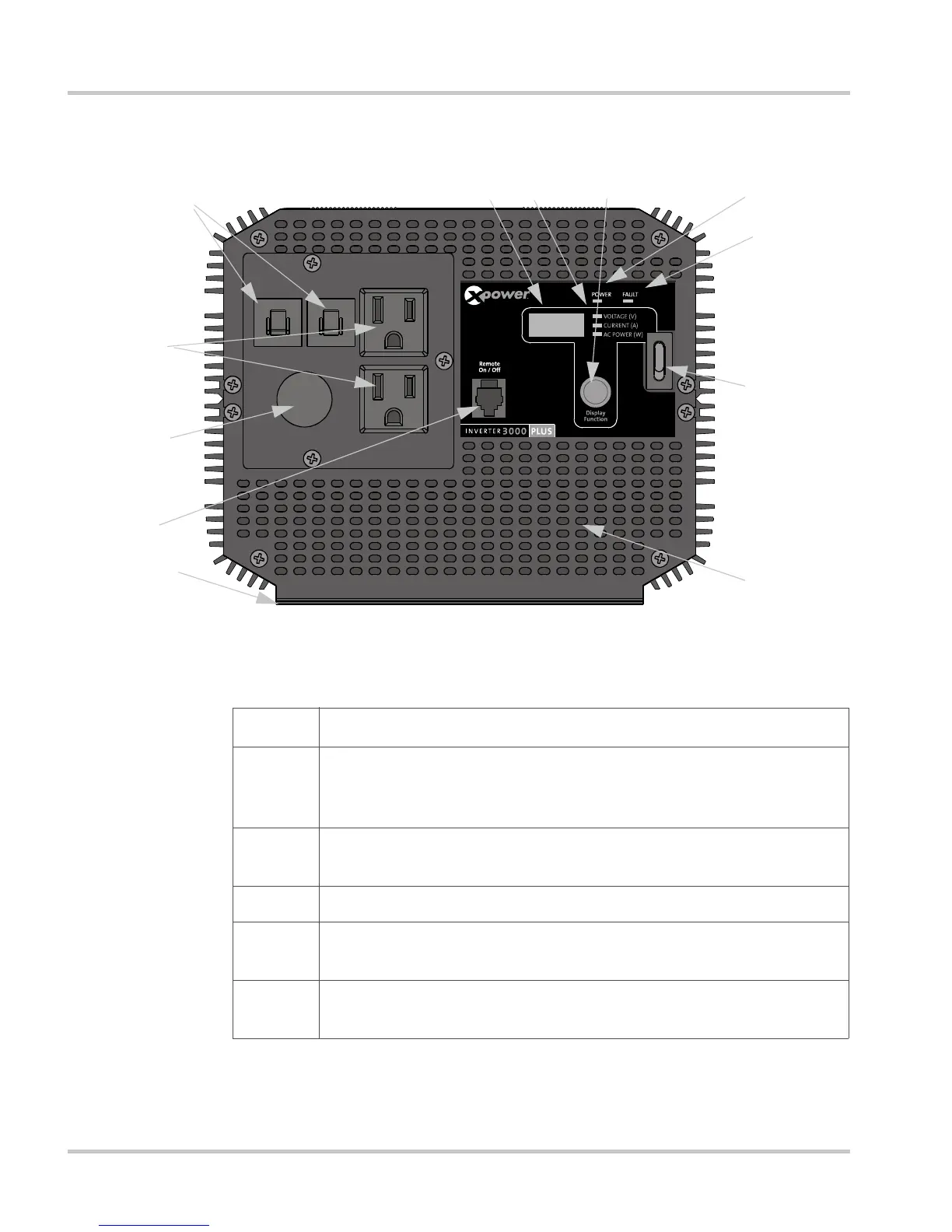

Figure 2-2 AC Panel
Feature Description
1 On/Off Switch turns the inverter’s control circuit on and off. This
switch is not a power disconnect switch. Disconnect AC and DC
power before working on any circuits connected to the inverter.
2 Fault light (red): indicates the inverter has shut down due to
inverter overload or over-temperature.
3 Power light (green): indicates the inverter is operating.
4 Display Function Button Press this to display battery voltage,
battery current and AC output power.
5 Status indicator lights: VOLTAGE, CURRENT, AC POWER
When lit, each light indicates which status is being displayed.
3
7
5
8
9
10
4
11
12
1
56
2
XPower3000.book Page 2 Wednesday, December 10, 2003 6:52 AM

Xantrex 3000 Specifications

General

Output Voltage	120 VAC
Output Frequency	60 Hz
Waveform	Modified Sinewave
Continuous Output Power	3000W
Surge Rating	6000W
Input Voltage	12 VDC
Protections	Overload, Over Temperature, Short Circuit
