Xantrex Automatic Generator User Manual

Installation
2–16 975-0082-01-01

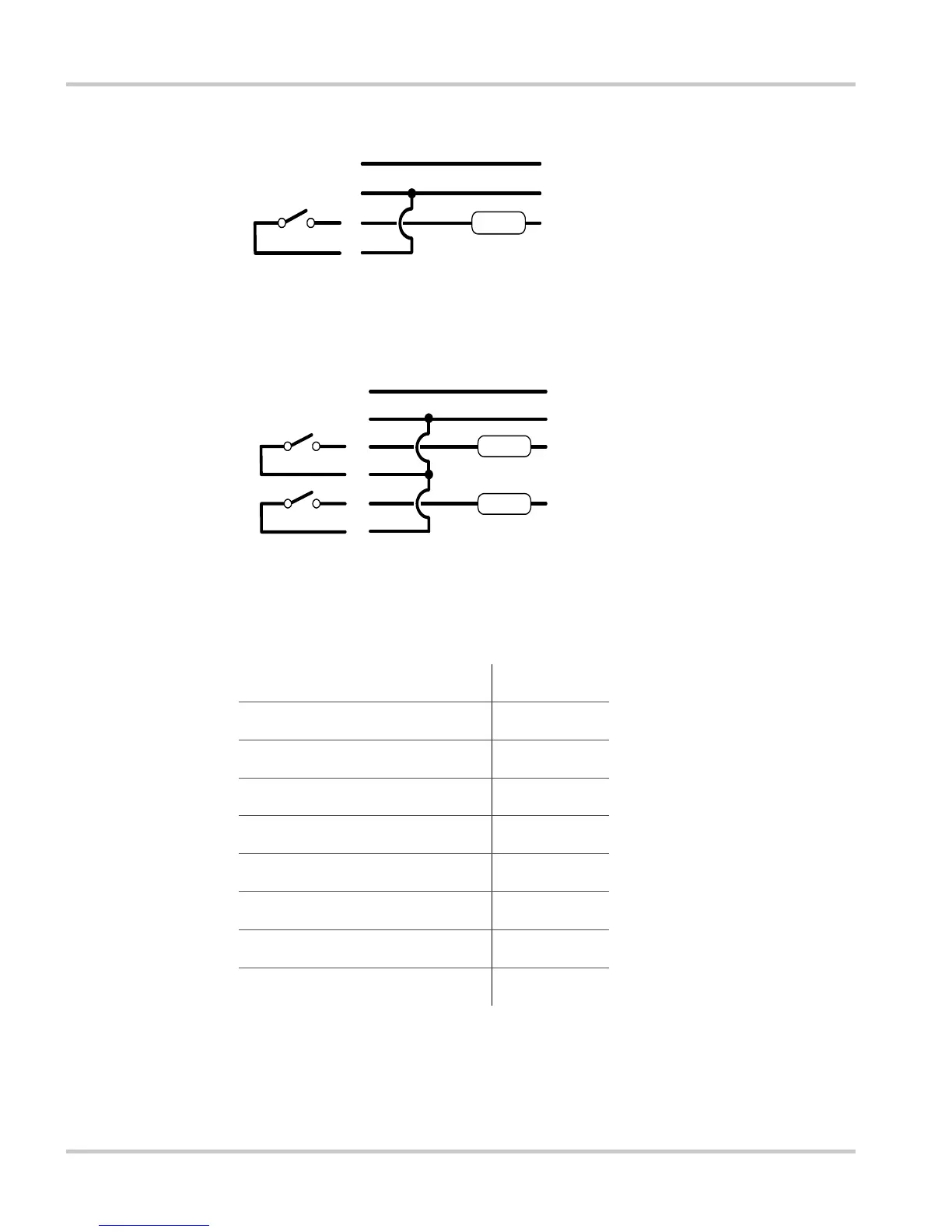

Figure 2-8 Type 7, Type 8, and Type 11 connection diagram (two-wire)
Figure 2-9 Type 7 and Type 8 connection diagram (three-wire)
Table 2-8 Type 7 relay and timing preset configurations
Relay 1 mode
Run
Relay 3 mode
No function
Gen Run signal hold time
0.5 s
Preheat time
20 s
Preheat to crank delay
1 s
Crank time
15 s
Crank retry time
30 s
Shutdown bypass time
0 s
Start tries
3
16
14
13
12
GEN RUN SIGNAL
GROUND
RUN
Relay 1
5A fuse
AGS wiring harness Generator wires
Complete overcurrent protection
not shown. Refer to page 2–6.
18
17
START
16
14
13
12
GEN RUN SIGNAL
GROUND
RUN
Relay 1
Relay 2
5A fuse
5A fuse
AGS wiring harness Generator wires
Complete overcurrent protection
not shown. Refer to page 2–6.
