Installation
2–18 975-0082-01-01
Type 9
Type 9 is a StartStop mode configuration with shutdown bypass
functionality on relay 3. This configuration is intended for Westerbeke
generators.

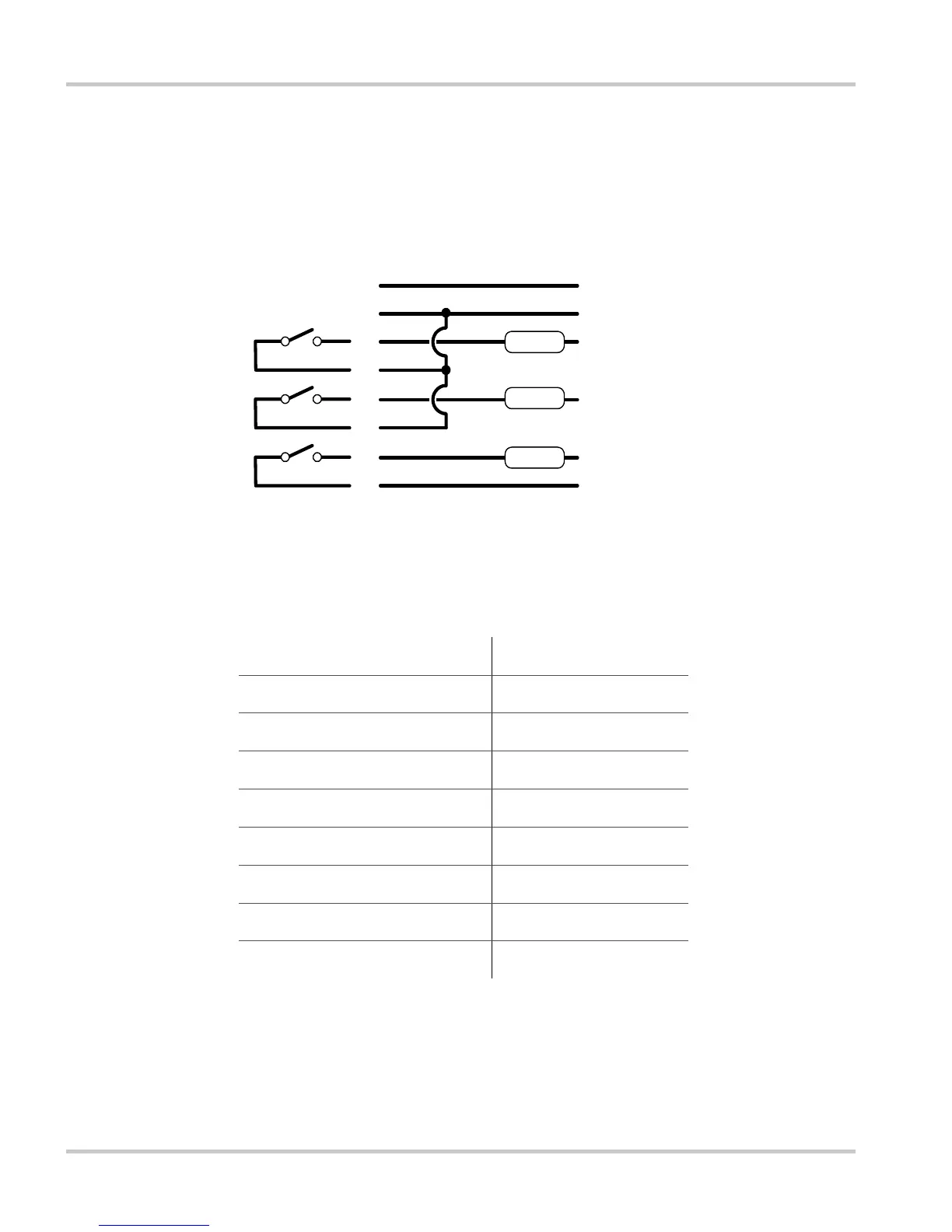

Figure 2-10
Type 9 connection diagram
Table 2-10
Type 9 relay and timing preset configurations
Relay 1 mode
StartStop
Relay 3 mode
Shutdown Bypass
Gen Run signal hold time
0.5 s
Preheat time
0 s
Preheat to crank delay
0 s
Crank time
15 s
Crank retry time
30 s
Shutdown bypass time
5 s
Start tries
3
18
17
START
16
14
13
12
GEN RUN SIGNAL
GROUND
STOP
20
19
PREHEAT & SHUTDOWN BYPASS
12V GENERATOR BATTERY +
Relay 1
Relay 3
Relay 2
5A fuse
5A fuse
5A fuse
AGS wiring harness Generator wires
Complete overcurrent protection
not shown. Refer to page 2–6.
