Xantrex Freedom 458 Series User Manual

28
COMPRESSION / RING TERMINAL
INSTALLATION
Improper stack up of hardware will cause
excessive heat and fuse failure. Stack up
as shown.
WARNING
Battery Cable Fusing
A fuse is required by the NEC to protect
the battery and cables. A UL Listed DC rated
slow blow fuse must be installed in the positive
(+) battery cable, within 18 inches of the
battery.
Recommended Fuse: UL Listed Class T
JLLN with a DC Rating. This fuse with fuse
holder is available from your dealer or Xantrex.
RING / RING TERMINAL
For Freedom 20 & 20D
300 Amp Fuse & Holder PN# 84-4156-00 (C/R)*
300 Amp Fuse & Holder PN# 84-41554-00 (R/R)**
300 Amp Fuse Only PN# 84-4117-00
For Freedom 25
300 Amp Fuse & Holder PN# 84-4156-00 (C/R)*
300 Amp Fuse & Holder PN# 84-4154-00 (R/R)**
300 Amp Fuse Only PN# 84-4151-00
For Freedom 30
350 Amp Fuse & Holder PN# 84-4159-00
350 Amp Fuse Only PN# 84-4152-00
* Compression / Ring Terminal
** Ring / Ring Terminal
FUSE HOLDER
FUSE
BATTERY
CABLE
INVERTER
CABLE
FLAT WASHER
LOCK WASHER
NUT
FUSE HOLDER
FUSE
BATTERY
CABLE
INVERTER
CABLE
FLAT WASHER
LOCK WASHER
NUT
+ (red)

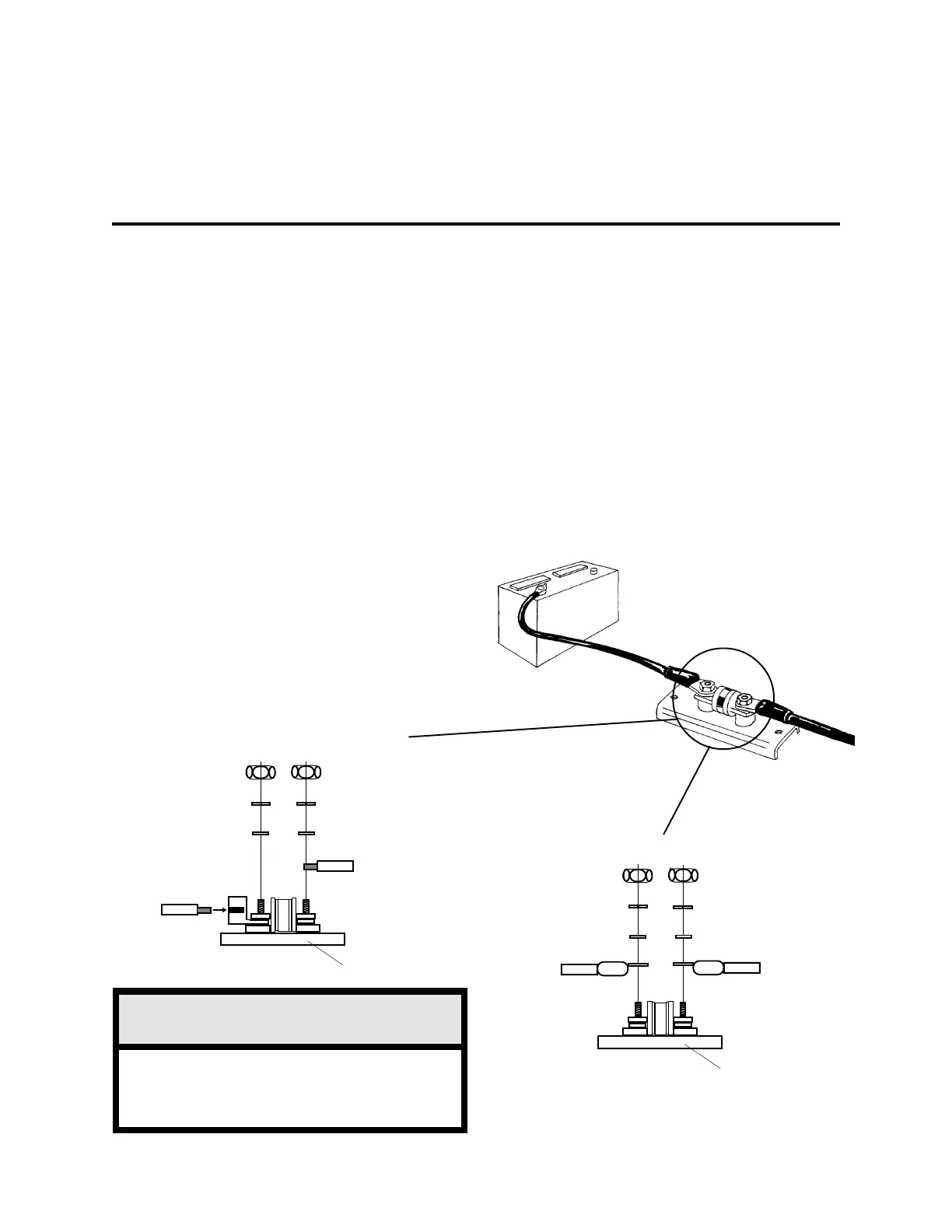

EXPLODED VIEWS
OF FUSE ASSEMBLY
+
_
For Freedom 10
200 Amp Fuse & Holder PN# 84-4155-00 (C/R)*
200 Amp Fuse & Holder PN# 84-4158-00 (R/R)**
200 Amp Fuse Only PN# 84-4157-00
For Freedom 15 & 15D
200 Amp Fuse & Holder PN# 84-4155-00 (C/R)*
200 Amp Fuse & Holder PN# 84-4158-00 (R/R)**
200 Amp Fuse Only PN# 84-4157-00

Xantrex Freedom 458 Series Specifications

General

Frequency	50/60 Hz
Efficiency	>85%
Output Voltage	12V
Input Voltage	120V AC
Battery Type	Gel, AGM
Protection Features	Overload, Short Circuit
