21
CAUTION This equipment is not ignition
protected and employs components that can
produce arcs or sparks. To reduce the risk of
fire or explosions, do not install in
unvented compartments containing
batteries or flammable gasses or areas in
which ignition-protected equipment is required.
INSTALLATION PRECAUTIONS
For continued protection against risk of
electric shock, use only the ground-fault
circuit interrupter (GFCI) type receptacles
detailed in this manual. Other types may
fail to operate properly when connected to
this inverter, resulting in a potential shock
hazard.
WARNING
CAUTION To reduce the risk of electric shock
and prevent premature failure due to corrosion,
do not mount where exposed to rain,
dripping or spray.
CAUTION To reduce the risk of fire, do not
obstruct ventilation openings. Do not mount
in a zero-clearance compartment—
overheating may result.
CAUTION Risk of electrical shock. Both
AC and DC voltage sources are
terminated inside this equipment. Before
servicing disconnect all inputs and outputs.
Typical Tools Needed
Flathead and Phillips Screwdrivers
Allen (Hex) Screwdriver (1/8'')
Wrench for connecting battery cables (9/16'')
Wire Cutters
Wire Strippers
Misc. assortment of wire ties and connectors
Accessories Needed for Installation
Fuse: UL Listed DC Rated slow blow fuse as
required by NEC
Electrical wire (10 gauge) for AC input wiring.
Consult NEC for proper size for output wiring.
Battery Cables 1-Positive, 1-Negative
Consult NEC for proper size
DC fuse cable
Mounting Screws (4)
Confirm that your shipping carton contains:
• Inverter/Charger
• TSC temperature sensor with 15' cable
• Owner’s Manual
• Warranty Card
• Jumper for AUX Switch (only used
without
Remote Control Panel or Link Instrument)
• Wire Nuts

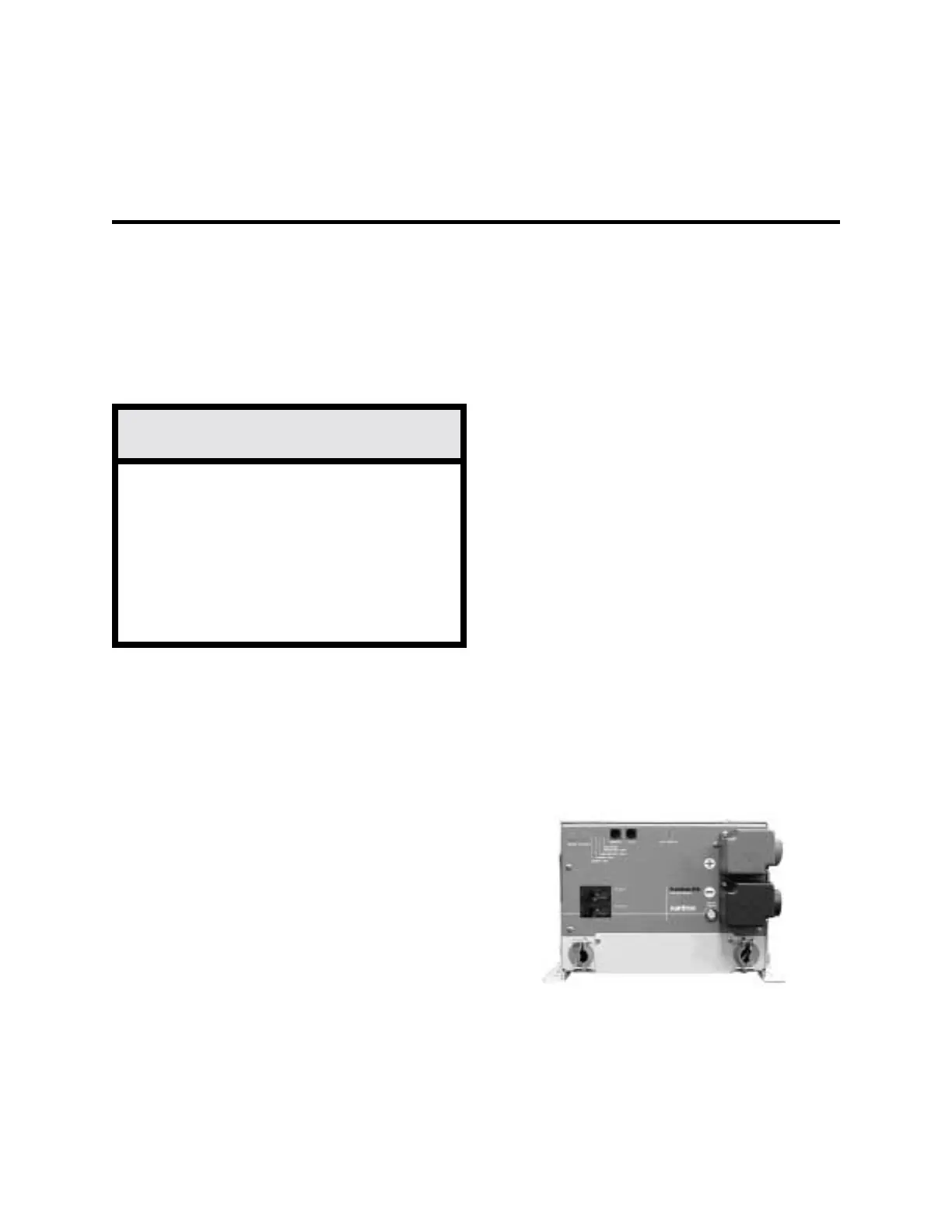

The Freedom 15D and 20D have
dual AC Outputs.
Freedom 20
