Xantrex Freedom 458 Series User Manual

6
Temperature Sensitive Charging
When the supplied battery temperature
sensor is connected to the unit and the
batteries, the charge voltage is controlled
based on battery temperature. The charger
adjusts the charge voltage to the best level,
minimizing water loss in wet cell batteries.
Charge voltage regulation optimizes the bat-
tery life cycle.
THINGS YOU SHOULD KNOW

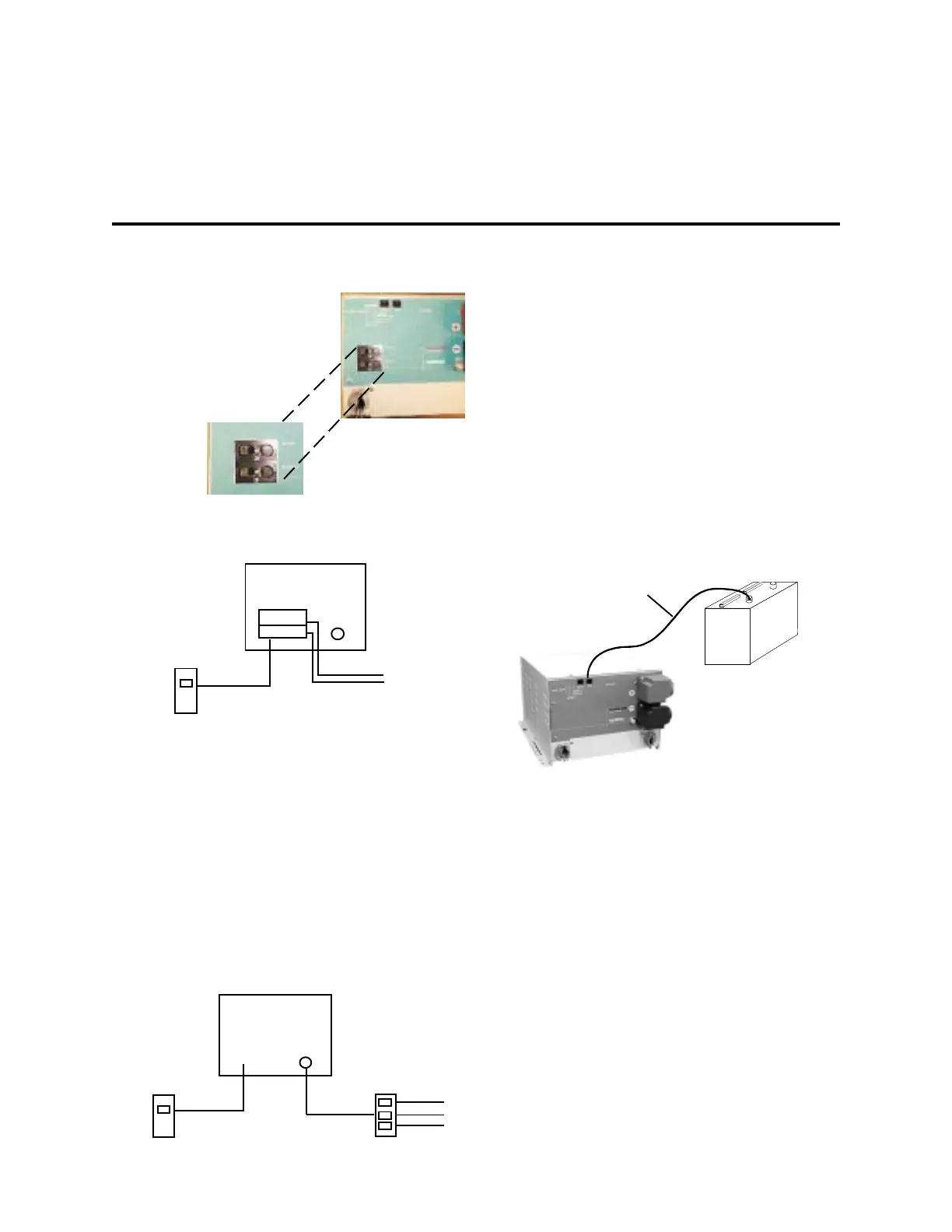

Branch Circuit Breakers
20 Amp
15 Amp
Shown:
Freedom 20D
81-2022-12
Freedom 458 Series
with Branch Circuit Rated Breakers
Branch Circuit
Rated Breaker
Units with integral branch circuit rated
breaker protection require a branch circuit
rated breaker at the input only. The output to
two branch loads may be connected directly
at the unit output.
Branch Circuit
Rated Breaker
Inverter/Charger
Branch Circuit
Rated Breaker
INPUT
NOTE: The INPUT branch rated circuit
breaker may be at the source of AC power
(such as shorepower or generator, or from a
main AC distribution panel located before
the input of the unit).
Inverter/Charger
INPUT
To LOADS
Models
10,15,20,25,30
*Models 25 and 30 include a
second input and output
TSC Sensor
Battery
Supplemental
Branch Circuit Rated Breakers
Integral Branch Circuit Rated Breakers
Models 15D&20D

Xantrex Freedom 458 Series Specifications

General

Frequency	50/60 Hz
Efficiency	>85%
Output Voltage	12V
Input Voltage	120V AC
Battery Type	Gel, AGM
Protection Features	Overload, Short Circuit
