Xantrex Freedom 458 Series User Manual

41

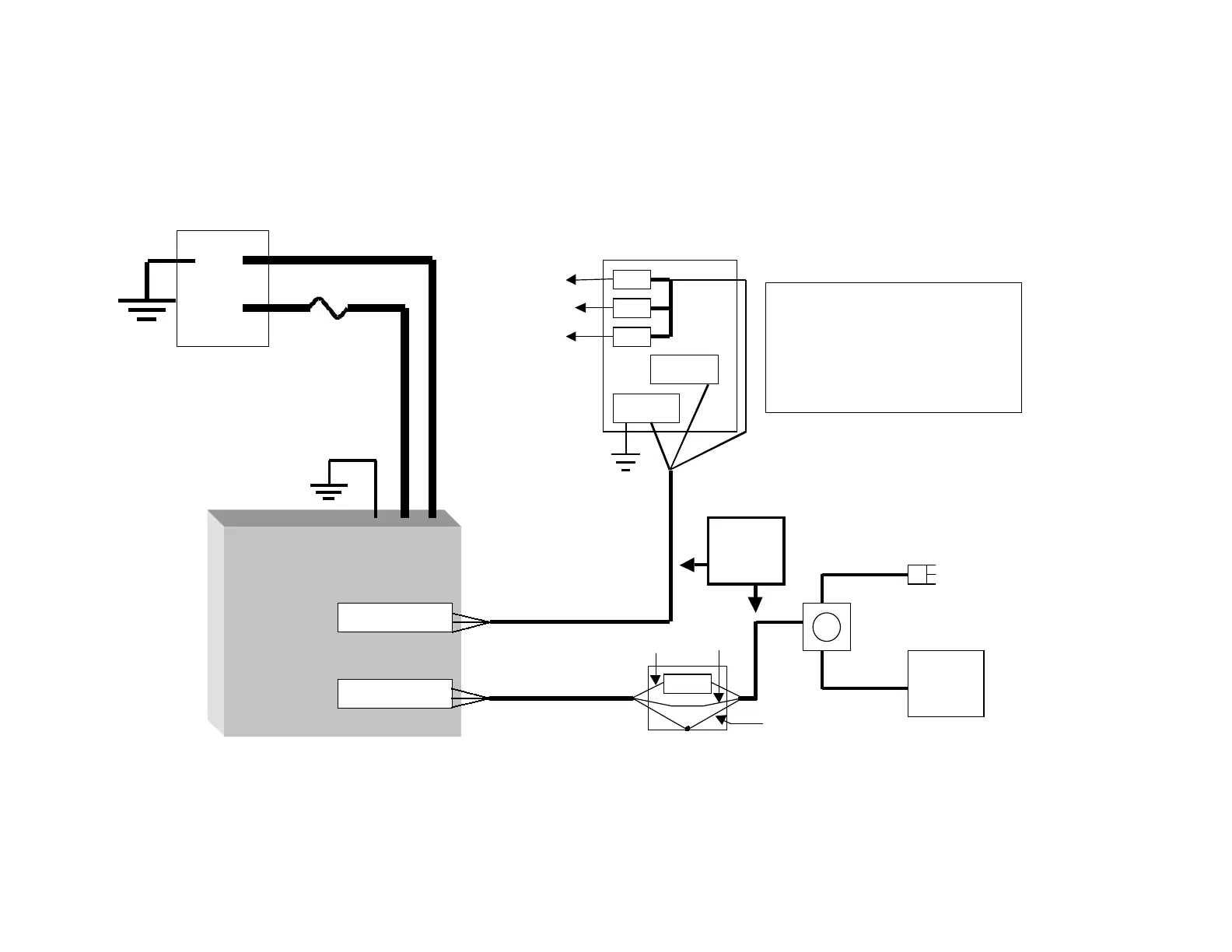

Freedom 458 Installation Option 1
Freedom 458 Model 10, 15, 20, 25, 30
AC Output
AC Input
Ground Bus
Neutral Bus
Inverter AC Sub Panel
To
Inverter
AC
Loads
12 VDC Battery Bank
Optional
Generator
30 A Main Breaker
Transfer Switch
30 A Shorepower
Class T
Fuse
Single Input/ Single Output
30 Amp Transfer Switch Power
Shares with Charger.
** Always consult Local and National
Electrical Codes for proper wire size
prior to installation.
10/3
AWG
Wire**
-
+
Hot
Bus
AC Wire Colors
Hot = Black
Neutral = White
Ground = Green/bare
+
-
30 A
Hot (Line) Neutral
Ground
Freedom 458
Inverter/Charger

Xantrex Freedom 458 Series Specifications

General

Frequency	50/60 Hz
Efficiency	>85%
Output Voltage	12V
Input Voltage	120V AC
Battery Type	Gel, AGM
Protection Features	Overload, Short Circuit
