Typical System Diagrams
54 Prosine Installation & Operation Guide

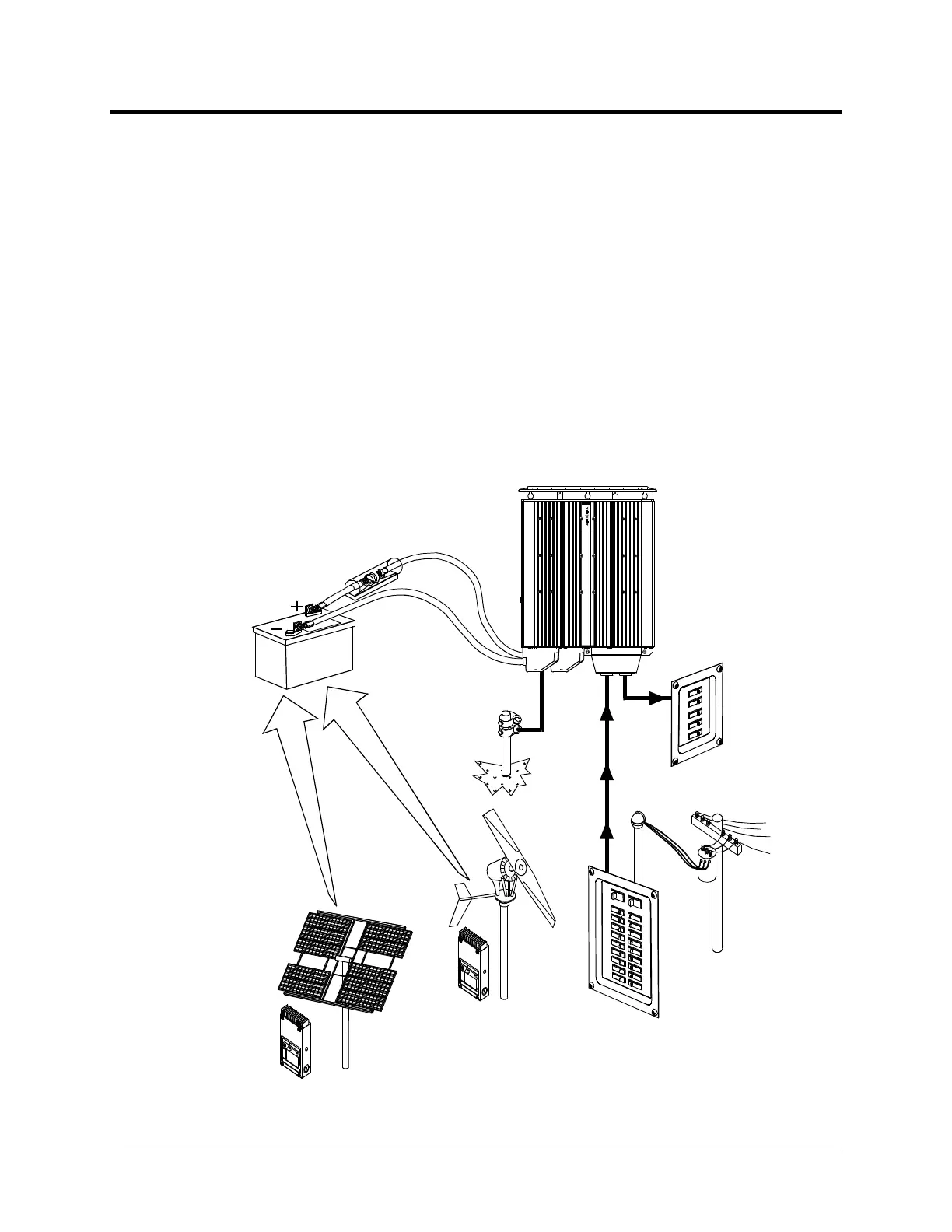

Residential Solar and Wind System
This diagram illustrates a residential system that features the following components:
1. AC power from utility lines
2. Main AC distribution center with 30-amp circuit breaker feeding the inverter/charger
3. Inverter/charger
4. AC sub-panel distribution center with circuit breakers for all branch circuits
5. DC supply from dedicated battery bank
6. A wind generagtor providing DC charging current to the battery bank through a charge
controller
7. A solar panel providing DC charging current to the battery bank through a charge
controller
8. Inverter chassis ground to earth ground
Charge Controller, Wind
Generator, and other
components
Charge Controller, Solar Array,
and other components
DC Fuse or
Circuit Breaker
Main AC Panel
AC Sub Panel
Pros i ne Si newave Inverter / Charger 2. 5
!
"
#
$
'
&
%
(
