Xantrex Prosine PS2.5 - Series Connection

Cabling & Hook-up Configurations
76 Prosine 2.5/3.0 Installation & Operation Guide

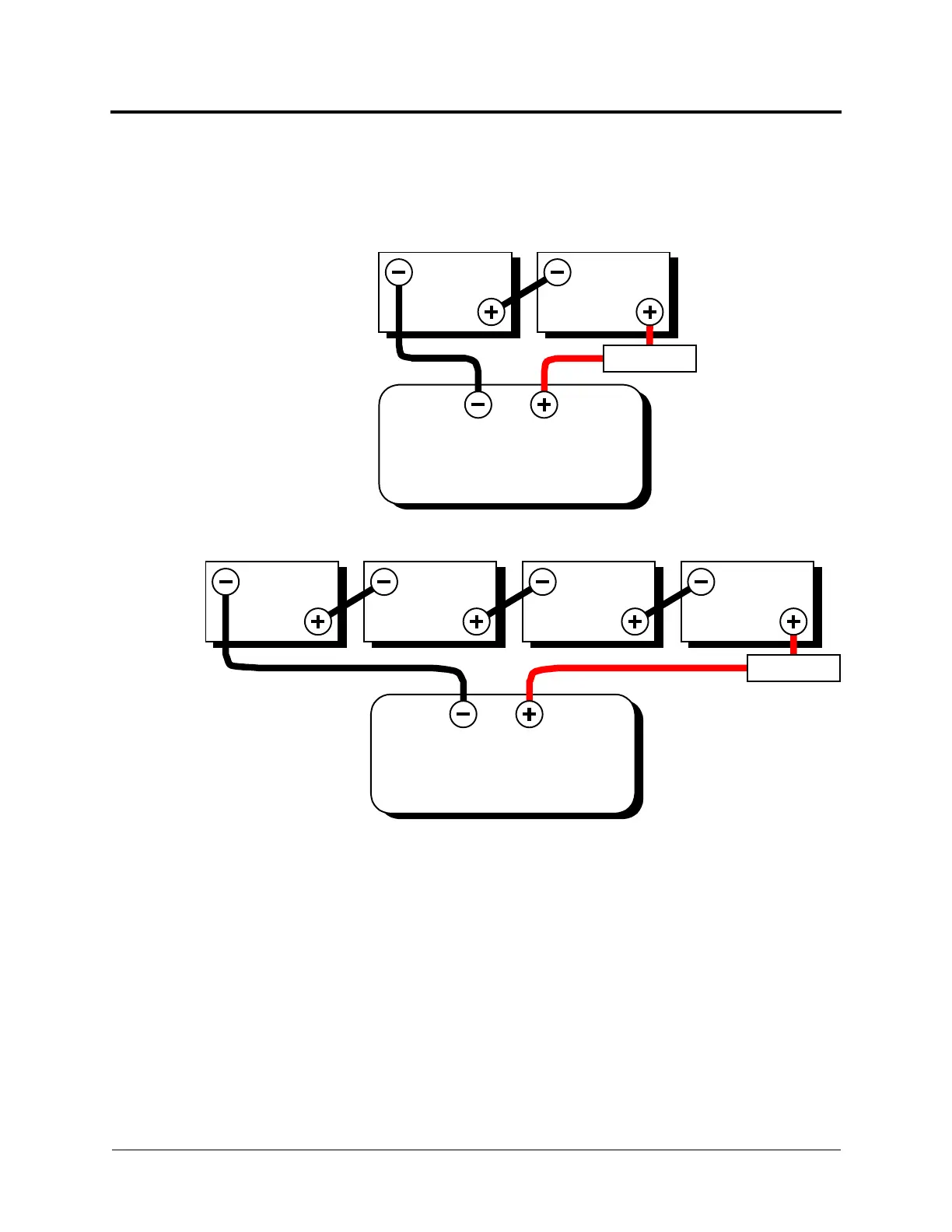

Series Connection
When batteries are connected with the positive terminal of one to the negative terminal of the next,
they are connected in series. In a series configuration, the battery bank has the same amp/hour rating
of a single battery, but an overall voltage equal to the sum of the individual batteries.
12V INVERTER
(Total Battery Capacity
= 100 Amp Hours)
6V 6V
FUSED
DISCONNECT
6V 6V
24V INVERTER
(Total Battery Capacity
= 100 Amp Hours)
6V 6V
FUSED
DISCONNECT
100 Ah
100 Ah
100 Ah
100 Ah 100 Ah 100 Ah
12V
24V
