Xantrex truecharge 2 series User Manual

975-0526-01-02 45
Accessing Charger Information
Reverse Polarity Fuse
fault
• Check for reverse battery polarity (negative
connected to negative, positive connected to positive
is correct) at battery and charger output terminals.
• Disconnect AC and DC sources before replacing the
fuse(s) on the charger. See “Replacing the DC Output
Fuse” on page 48.
Internal fault • Call Xantrex for support.
Flashing LED Solid LED

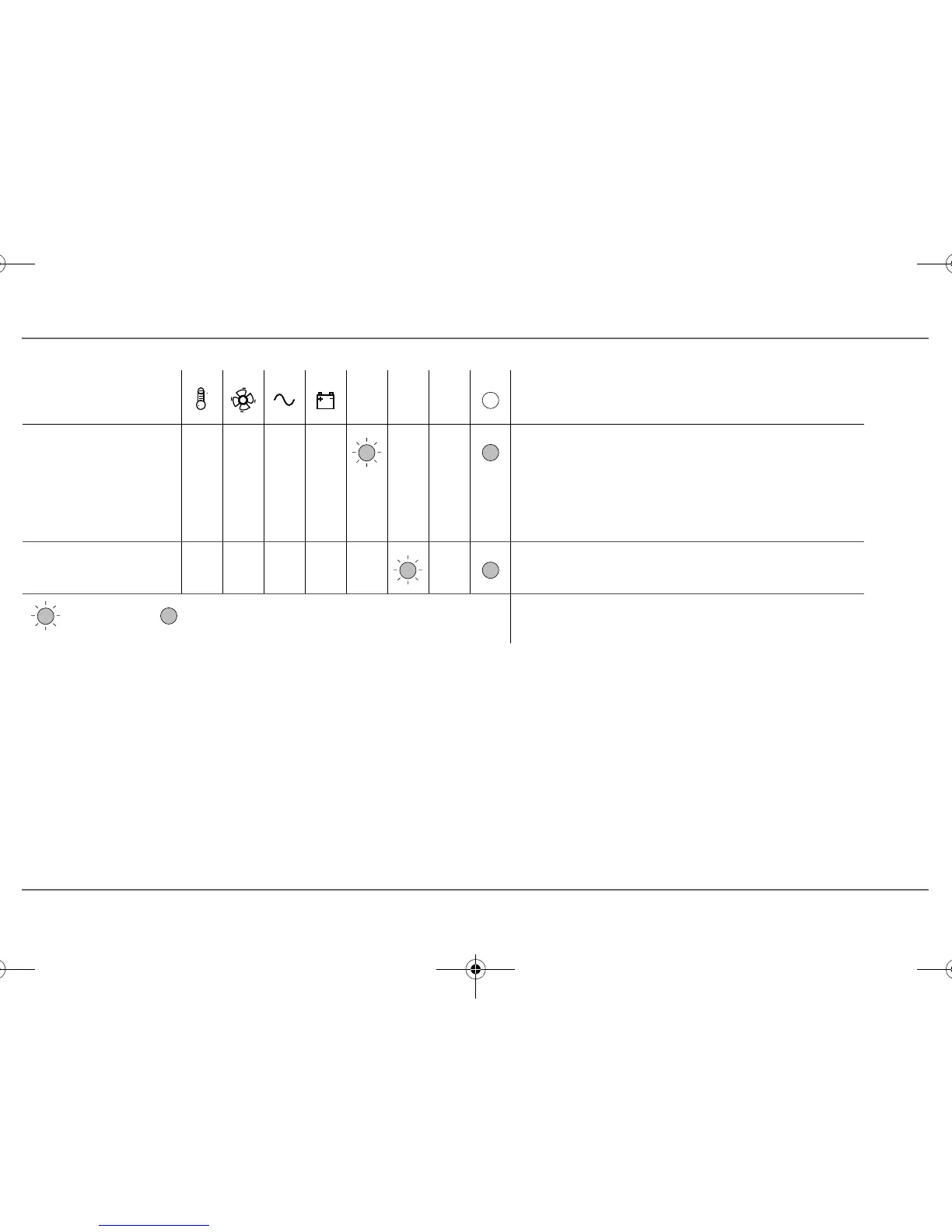

Table 9 Interpreting Fault and Warning Indicators
Fault or Warning
Condition
Temp Fan AC Battery Fuse Charger Remote Fault
Solution
F
u
s
e
C
h
g
r
R
e
m
TC2 204060 Series BattChg Owners Guide.book Page 45 Friday, July 8, 2011 11:44 AM

Xantrex truecharge 2 series Specifications

General

Input Voltage	90-265 VAC
Input Frequency	47-63 Hz
Number of Banks	3
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	12 VDC or 24 VDC
Output Current	20A, 40A, or 60A
Battery Types	Flooded, Gel, AGM
Charging Stages	3-stage (Bulk, Absorption, Float)
Protection Features	Overvoltage, Overcurrent, Short Circuit, Reverse Polarity, Over Temperature
Operating Temperature	-20°C to +50°C
