Installa
tion
AC Input Power
44
Operating Manual for XDC Series Power Supply

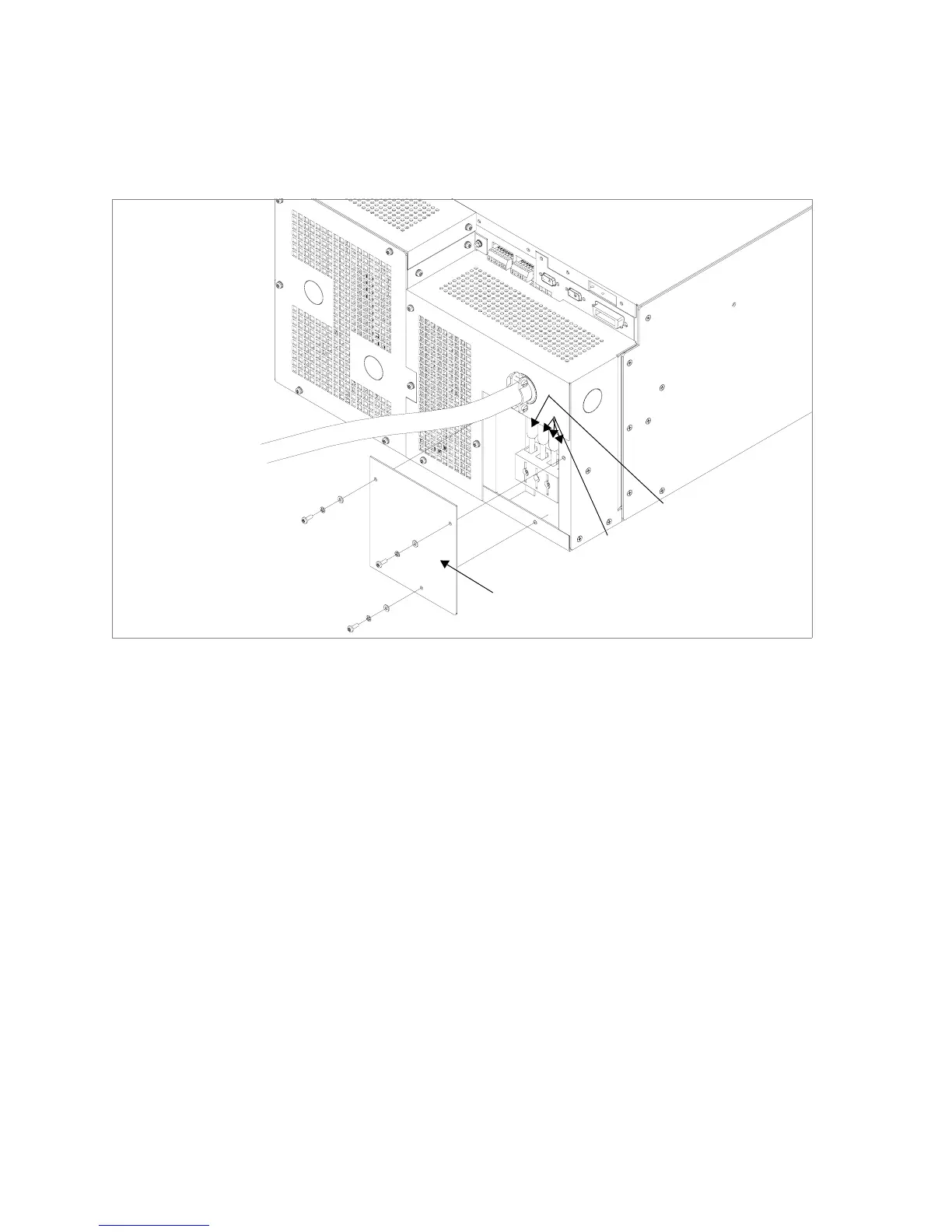

Figure 2.6
Attaching the AC Inp
ut Wires for 12000
W
att units
AC input cover plate
left terminal:
3 right terminals:
3-Phase T
erminal Block Connectors
Ground Connection
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
46
48
Table of Contents
Default Chapter
2
DC Power Supply
2
Table of Contents
14
List of Tables
20
List of Figures
22
Section 1. about the XDC Power Supply
24
Overview
24
Features
24
Front Panel
25
Figure 1.1 Front Panel (6000 Watt)
25
Figure 1.2 Front Panel (12000 Watt)
26
Figure 1.3 Keypad
27
Table 1.1 Front Panel Functions
29
Display
31
Status Annunciators
31
Figure 1.4 Front Panel Display
31
Figure 1.5 Front Panel Display, Status Annunciators
31
Rear Panel
33
Figure 1.6 Rear Panel (6000 Watt Low and Medium Output Shown)
33
Overview of Operation
34
Power on
34
Control Modes
34
Section 2. Installation
36
Overview
36
Table 2.1 Basic Setup Procedure
36
Basic Setup Procedure
36
Inspection, Cleaning, and Packaging
37
Initial Inspection
37
Maintenance
37
Returning Power Supplies to the Manufacturer
38
Return Material Authorization Policy
38
Packaging for Shipping or Storage
39
Figure 2.1 Typical Box Label for Storage
39
Location, Mounting, and Ventilation
40
Rack Mounting
40
Figure 2.2 Unpacking the Power Supply (6000 Watt Shown)
41
Ventilation
42
Figure 2.3 Mounting the Power Supply in the Rack with Support Rails
42
AC Input Power
43
AC Input Connector
43
Figure 2.4 AC Input Connector for 6000 Watt Units
43
AC Input Wire
44
AC Wire Input Connection for 6000 W
44
Table 2.2 AC Wire Specification for 6000 Watt Units
44
Table 2.3 AC Wire Specification for 12000 Watt Units
44
Figure 2.5 Attaching the AC Input Wires for 6000 Watt Units
45
AC Wire Input Connection for 12000 W
46
Figure 2.6 Attaching the AC Input Wires for 12000 Watt Units
47
Basic Checks or Self-Tests
48
Equipment Required
48
Display Test
48
Power on Check
49
Voltage Mode Operation Check
49
Current Mode Operation Check
50
Load Wiring
51
Current Carrying Capacity
51
Table 2.4 Current Carrying Capacity for Load Wiring
51
Load Wiring Length for Operation with Sense Lines
52
Noise and Impedance Effects
52
Load Connections
53
Wire Size
53
Isolation
53
Single Load
54
Multiple Loads
55
Figure 2.7 Fastening the Output Wires (6000 Watt)
55
Output Strain Relief/Cover
56
Figure 2.8 Output Bus Bar Cover for 6000 Watt Units
56
Figure 2.9 Output for 12000 Watt Units (Low and Medium Voltage)
56
Figure 2.10 Output Cover with Strain Relief for 6000 Watt Units
57
Remote Sensing
59
Section 3. Operation
60
Overview
60
Powering on the Power Supply
60
Powering off the Power Supply
61
Power Supply Operating States
61
Power-On
61
Output Shutdown
61
Soft Start
61
Normal Operation
61
Calibration
61
Power Supply Regulation Modes
62
Constant Voltage (CV)
62
Constant Current (CC)
62
Constant Power (CP)
62
Automatic Mode Crossover
62
Remote Control Modes
63
Front Panel Controls
64
Function Keys
64
Menu Navigation
65
Top Level Menu Items
65
Control Knobs
66
Power Supply Operation
67
Set Voltage
67
Set Current
67
Set Power
68
Turn Output on or off
68
Set Output Protection
68
Set Shutdown Recovery for AC off and OTP
74
Respond to Alarms
75
Set up Remote Control
77
Toggle Local/Remote
77
Select Remote Control Source
78
Configure Remote Control Source
79
Store User Settings
80
Change Stored Settings
81
Recall Settings
82
Table 3.1 Settings Affected by Recall
84
Read Error Messages
85
Configure User Lines
86
Configure Power on Settings
87
Operating Manual for XDC Series Power Supply
87
Program Auto Sequence
90
Programming a Sequence
91
Deleting a Sequence
94
Editing a Sequence Step
95
Inserting a Sequence Step
96
Deleting a Sequence Step
97
Editing Repeat Times of a Sequence
98
Editing Trigger Source of a Sequence
99
Using Auto Sequencing
100
Configure Display
101
Lock out Control Knobs
101
Set V, I, and P Limits
103
Slew Rate
105
View Model Information
107
Default Display
107
View Power Output
107
Monitor Status
107
Section 4. Remote Operation
108
Overview
108
Making Connections for Remote Control
110
Figure 4.1 View of Remote Interface Connections
110
Remote Analog Operation
111
Analog Connections
111
Table 4.1 User Line Pins
111
Table 4.2 Analog Programming Pins
112
Figure 4.2 Schematic for User Line Interface
112
Configure Analog Control
113
Table 4.3 Analog Pin Connections for Power Loop Back
113
Table 4.4 Analog Pin Connections with a Contact Closure
113
Using Remote Analog Control
115
Multichannel Operation (6000 Watt Only)
116
Multichannel Connections
116
Table 4.5 Canbus Pins
116
Configuration
117
Setup
117
Using Multichannel Operation
118
Figure 4.3 Connections for Multichannel Operation
118
Multichannel Commands
119
Multichannel Broadcast Commands
120
Specifications
120
RS-232 Operation
121
Connection
121
Configuration
121
Table 4.6 RS-232 Pins
121
Using RS-232
122
GPIB Operation
123
GPIB Connection
123
Table 4.7 GPIB Pins
123
Configuration
124
Using GPIB
125
Store User Settings
126
SCPI Commands for Digital Interfaces
126
Set up Power on Defaults
126
Power on Output State
128
Table 4.8 Features Affected by Reset (*RST) Command
129
Store User Settings
130
Change Remote/Local Control of Power Supply
131
Enable Output
131
Program V,I,P
131
Configure V, I, P Protection Limits
133
Configure Other Protection Mechanisms
135
Clear Protection Event
137
View Power Supply Output
137
Configure Auxiliary Status Lines
137
Read Error Messages
138
Triggering Commands
139
Auto Sequencing
139
Programming Sequences
141
Auto Sequence Operation
143
Slew Rate
144
Identification Query
145
Option Identification Query
145
SCPI Version Query
145
Status Registers
145
Figure 4.4 Operation Status Registers
147
Table 4.9 Operation Status Register
148
Table 4.10 Regulating Sub-Register
149
Table 4.11 Shutdown Sub-Register
149
Table 4.12 Protection Shutdown Sub-Register
150
Table 4.13 Remote Control Sub-Register
151
Table 4.14 Current Share Sub-Register
151
Figure 4.5 Questionable Status Registers
153
Table 4.15 Questionable Status Register
154
Table 4.16 Voltage Sub-Register
155
Table 4.17 Current Sub-Register
155
Table 4.18 Power Sub-Register
155
Table 4.19 Temperature Sub-Register
156
Figure 4.6 IEEE 488.2 Status Register and Status Byte
156
Table 4.20 Standard Event Status Register
157
Table 4.21 Status Byte Summary Register
158
Status Register Commands
160
Table 4.22 Preset Values of User Configurable Registers
160
Section 5. Current Sharing (6000 Watt Only)
176
Figure 5.1 Connections for Current Share Operation
176
Overview
176
Theory of Operation
176
Configure Current Share
177
Setup Current Sharing Network
178
Operation
179
Errors
179
Specifications
180
Appendix A. Calibration
182
Overview
182
Entering Calibration Mode
182
Front Panel
183
Scpi
184
Security Code
184
Setup and Equipment
185
Front Panel Calibration Procedure
186
Output Voltage
186
Output Current
186
Analog Programming Interface 0-5V Range
187
Analog Programming Interface 0-10V Range
190
Remote Interface Calibration Procedure
190
Output Voltage
190
Output Current
190
Analog Programming Interface 0-5V Range
191
Analog Programming Interface 0-10V Range
194
Exit Calibration Mode
195
Restore Factory Calibration
195
Appendix B. SCPI Command Reference
196
Overview
196
Codes and Standards
196
IEEE 488.2 Requirements
196
SCPI Requirements
196
IEEE-488.2/SCPI Syntax and Style
197
Parameters
197
SCPI Command Hierarchy
197
Using SCPI Commands
198
Using Minimum and Maximum
199
Using Queries
199
Terminating Characters
199
Common Commands
199
Parameter Types
200
Boolean Parameters
200
Discrete Parameters
200
Numeric Parameters
200
String Parameters
200
SCPI Command Summary
201
Notations Used in the Tables
201
Table B.1 IEEE 488.2 Commands
202
Table B.2 Readback Commands
203
Table B.3 Commands for Output Control
204
Table B.4 Commands for Current Share (6000 W Only)
205
Table B.5 Commands for Calibration
206
Table B.6 Command to Clear All Protection Mechanisms
206
Table B.7 Commands for Fold Protection
207
Table B.8 Commands for Triggering
207
Table B.9 System Commands
207
Table B.10 Status Commands
208
Table B.11 Protection Commands
212
Table B.12 User Lines
212
Table B.13 Output State
212
Table B.14 Auto Sequence Commands
213
Table B.15 Legacy Commands
215
Expressions
216
Appendix C. Error Messages
218
Overview
218
Command Error List
219
Execution Error List
219
Device-Specific Error List
221
Query Error List
222
User Request Event
222
Operation Complete Event
222
Front Pane0L Error Codes
223
CPU Error Codes
223
Analog Programming Interface Error Codes
223
Auto Sequencing Error Codes
223
Table C.7 Front Panel Error Codes
223
Table C.9 Analog Programming Interface Error Code
223
Canbus Error Codes
224
Multichannel Error Codes
224
Current Share Error Codes
225
Appendix D. GPIB
226
Overview
226
Codes and Standards
226
Message Terminators
226
Address Range
226
Primary Address
226
Secondary Address
226
Service Request and Polling
226
Protocol Specifications
227
Multiline Control Functions
227
Interface Functions
227
Electrical Specifications
228
Driver Requirements
228
Mechanical Specifications
228
Performance Specifications
228
Table D.3 Driver Types for Interface Lines
228
Appendix E. Specifications and Characteristics
230
Table E.1 Specifications for 6000 Watt Units (10V to 60V Models)
231
Electrical Specifications-Summary
231
Table E.2 Drift Specifications for 6000 Watt Units (10V to 60V Models)
232
Table E.3 Specifications for 6000 Watt Units (80V to 600V Models)
233
Table E.4 Drift Specifications for 6000 Watt Units (80V to 600V Models)
234
Table E.5 Specifications for 12000 Watt Units (10V to 60V Models)
235
Table E.6 Drift Specifications for 12000 Watt Units (10V to 60V Models)
236
Table E.7 Specifications for 12000 Watt Units (80V to 600V Models)
237
Table E.8 Drift Specifications for 12000 Watt Units (80V to 600V Models)
238
AC Line Input Specifications
239
AC Line Input Voltage Operating Ranges
239
Output Performance Specifications
240
Environmental Specification
245
Thermal Specification
245
Humidity Specification
245
International Approvals
245
Mechanical Specification
246
Figure E.1 Power Supply Dimensions (6000 Watt Unit)
246
Figure E.2 Power Supply Dimensions (12000 Watt Unit)
247
Index
248
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Xantrex XDC 10-600 and is the answer not in the manual?
Ask a question
Xantrex XDC 10-600 Specifications
General
Brand
Xantrex
Model
XDC 10-600
Category
Power Supply
Language
English
Related product manuals
Xantrex XDC 60-100
256 pages
Xantrex XDC 80-150
256 pages
Xantrex XDC 40-150
256 pages
Xantrex XDC 300-40
256 pages
Xantrex XDL 35-5
163 pages
Xantrex XT 7-6
42 pages
Xantrex XHR 150-7
86 pages
Xantrex XFR 35-35
90 pages
Xantrex XKW 8-125
60 pages
Xantrex XKW 60-18
60 pages
Xantrex XKW 40-25
60 pages
Xantrex XPower 300
64 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
