8264E Loading Roll Media
Follow the procedure below to load roll media on the 8264E.

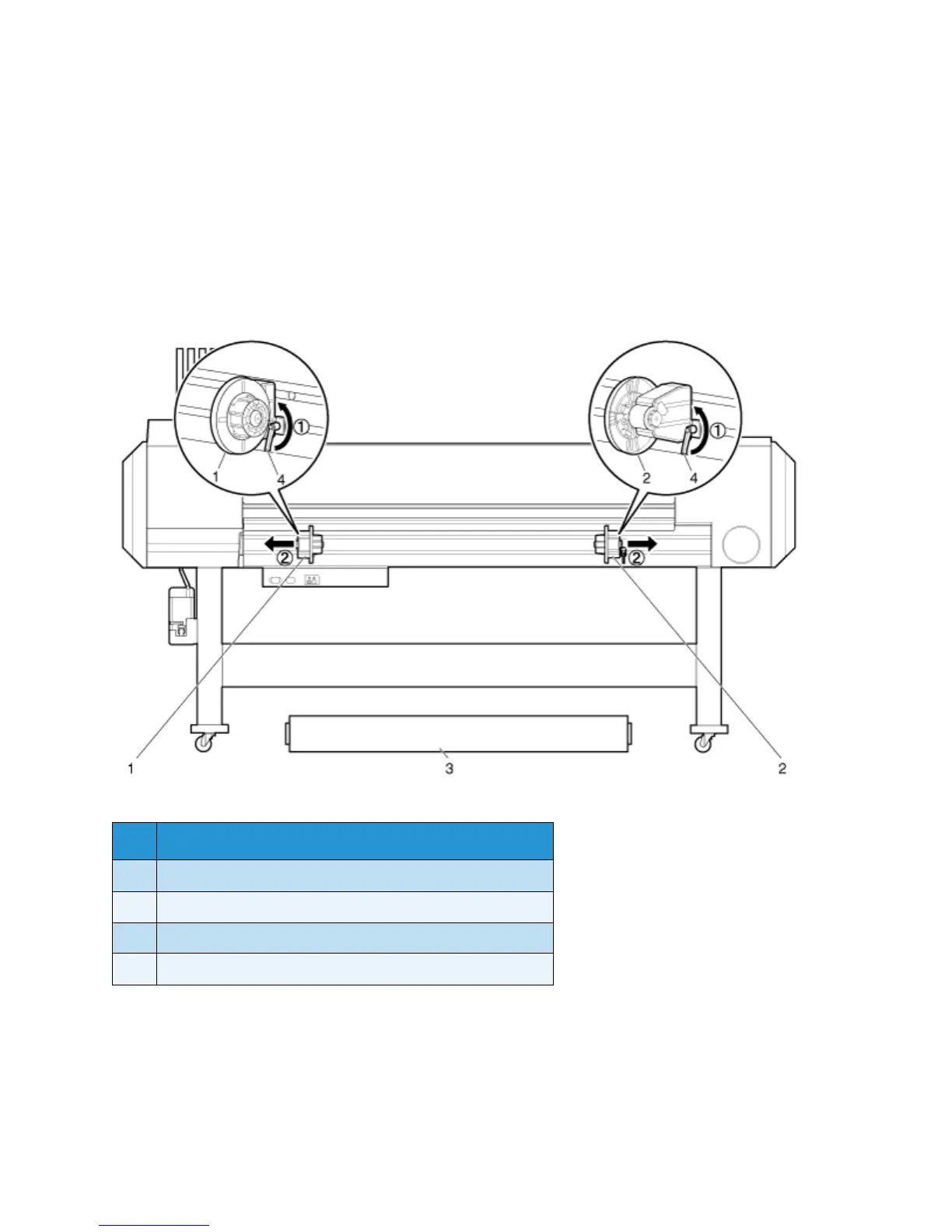

1. Loosen the left side and right side roll media holders at the rear of the printer. To do this, pull the
lever towards you to release it from the ratchet. Then rotate the lever clockwise until you can no
longer firmly grasp it. Release the lever (so the ratchet engages), then rotate the lever counter-
clockwise until the media holders can be slid on their track.
2. Move both roll media holders outward.
3. Temporarily set the distance between the roll media holders a little wider than the width of the roll
media you are loading.
4. Engage the damper drive switching plates and their locking brackets on the end of each roll media
holder to increase tension on the media roll to avoid slack and "No media found" errors.
No. Name
1 Roll media holder (Left)
2 Roll media holder (Right)
3 Roll media
4 Fixing lever
