Preparing For A Job
Xerox 8254E / 8264E Color Wide Format Printer
User Guide
3-18

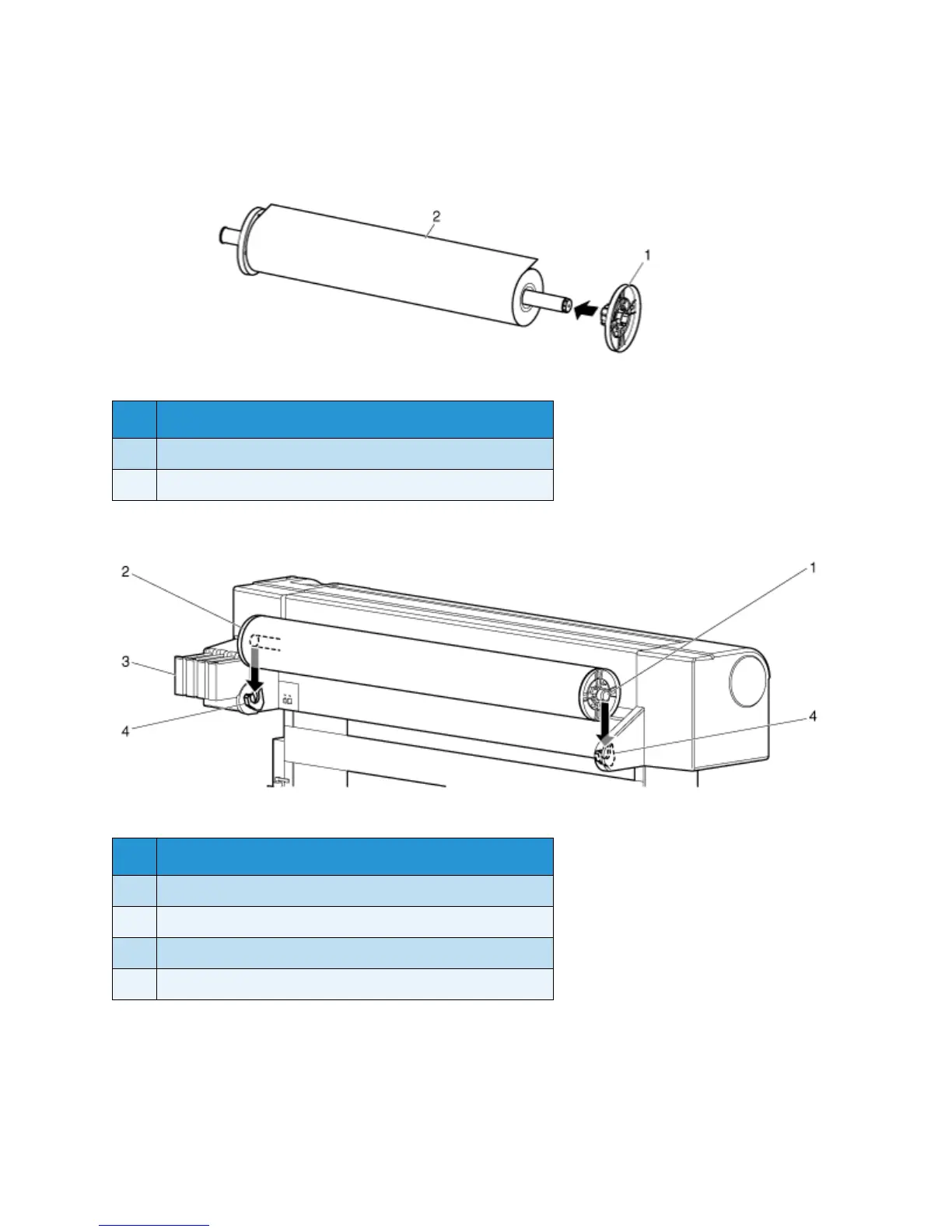

3. Attach the movable flange firmly to the roll media so that the inside surface of the flange is flat
against the cardboard core.
4. Set the scroller onto the scroller receiver so that the fixed flange faces the side with the ink
cartridge slots.
No. Name
1 Movable flange
2 Roll media
No. Name
1 Scroller
2 Fixed flange
3 Ink cartridges
4 Scroller receiver
