Xerox AltaLink B8170

Clearing Jams at Area 2b in the Tri-Fold Module

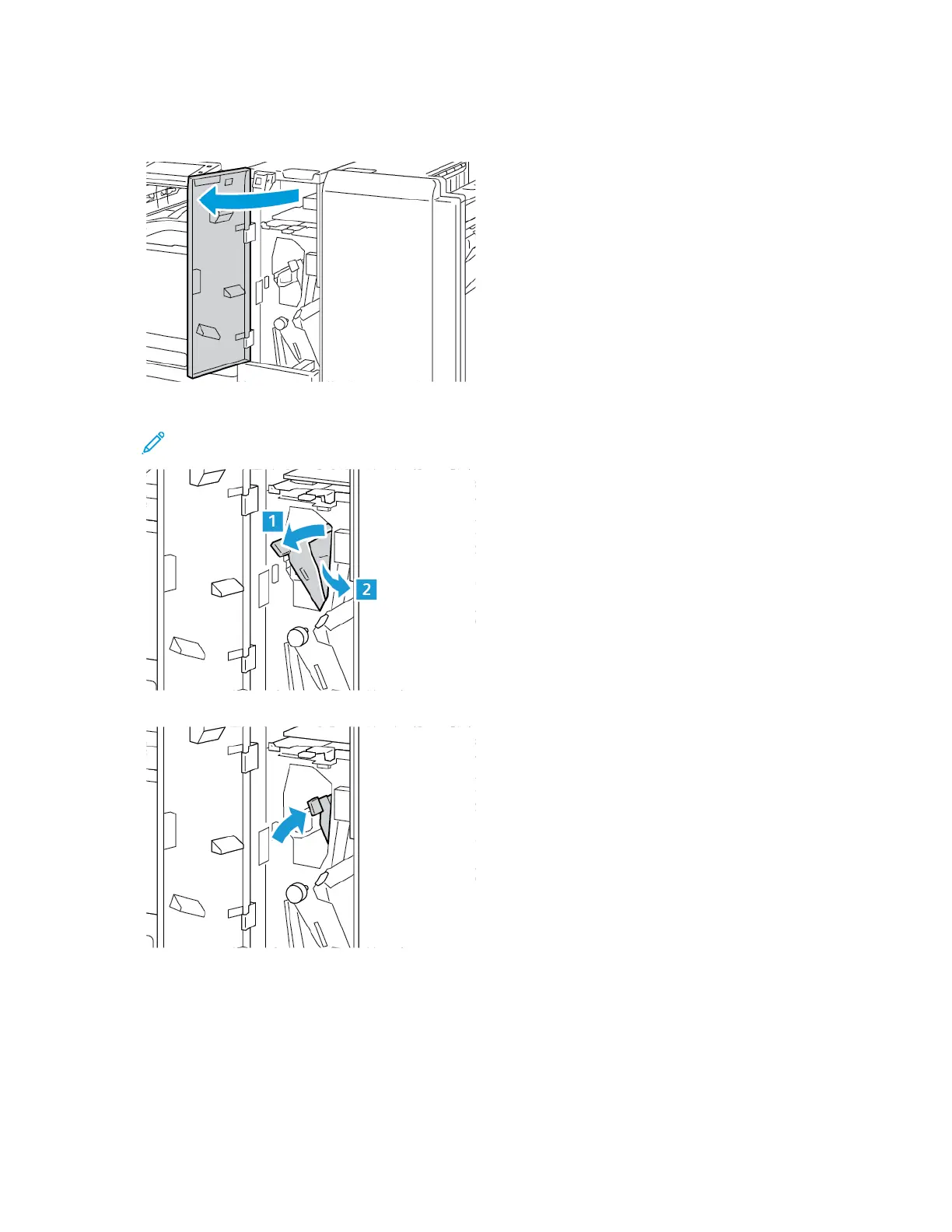

1. Open the front door of the tri-fold module.
2. Move lever 2b to the left, then remove the jammed paper.
Note: If the paper is torn, remove all torn pieces of paper from the folder.
3. Return lever 2b to the original position.
4. Close the front door of the tri-fold module.
Xerox
®
AltaLink
®
B81XX Series Multifunction Printer
User Guide
307
Troubleshooting
