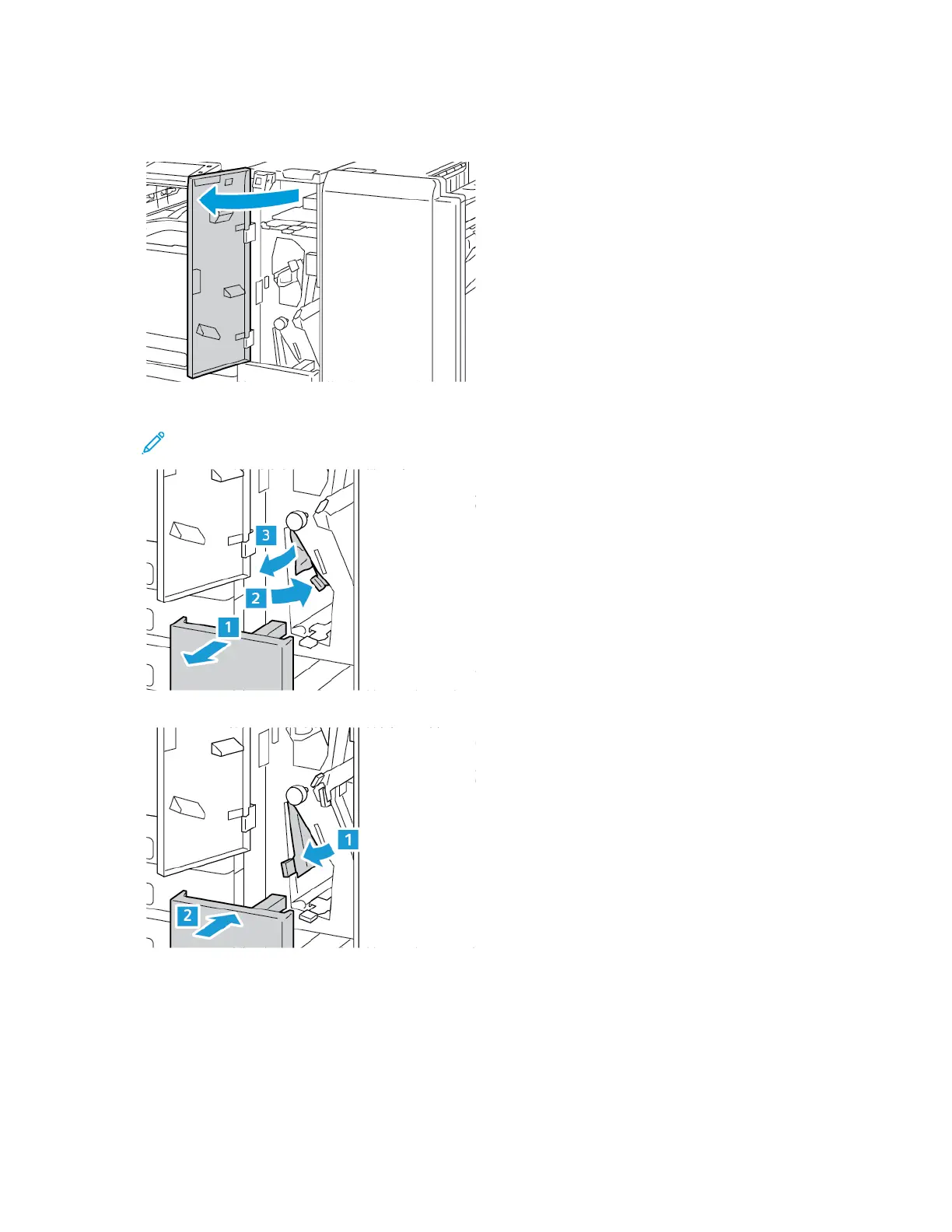

Clearing Jams at Area 2e in the Tri-Fold Module
1. Open the front door of the tri-fold module.
2. Open the folder tray, move lever 2e to the right, then carefully remove the paper.
Note: If the paper is torn, remove all torn pieces of paper from the folder.
3. Return lever 2e to the original position, then close the folder tray.
4. Close the front door of the tri-fold module.
308
Xerox
®
AltaLink
®
B81XX Series Multifunction Printer
User Guide
Troubleshooting
