Xerox DocuMate 152i User Manual

Xerox
®
DocuMate
®
152i Maintenance
20 User Guide

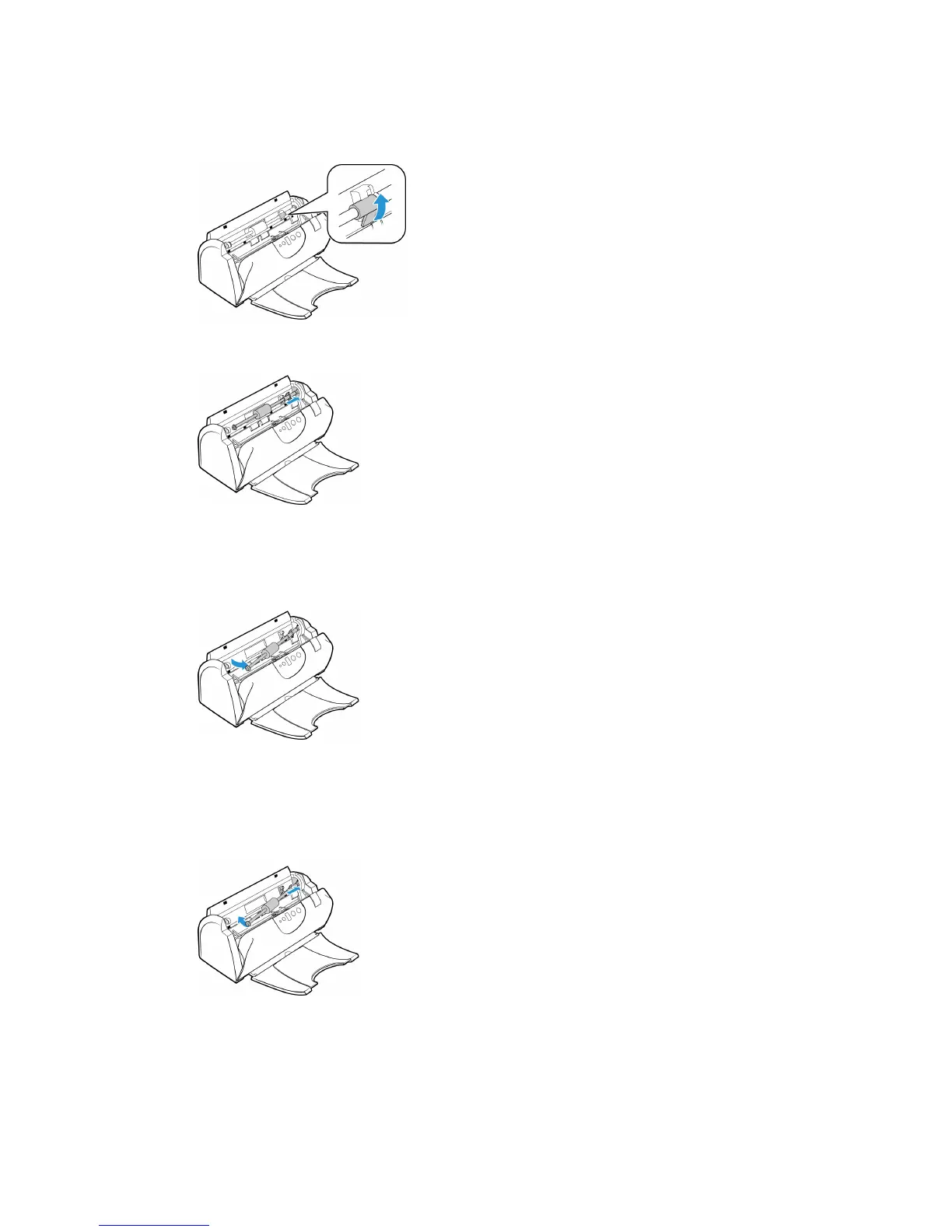

3. The roller is held in place with a lock tab that rotates to lock and unlock it. To unlock the tab,
rotate it until the small lock flange is completely free.
4. Gently press the roller to the right to free its left side.
5. Then angle the roller to the front of the scanner until it is clear of the housing, and bring it out
and away from the scanner body.
Remove the roller from the scanner and discard it, it cannot be repaired.
6. Before installing the new roller, clean any dust that may have gotten on it during shipping.
7. Insert the right end of the roller into its housing socket. Make sure the lock tab is facing up and
the lock flange is not obstructed. Swing the roller into the scanner and align the left side with
its mount.

Xerox DocuMate 152i Specifications

General

ADF Capacity	50 sheets
Connectivity	USB 2.0
Duplex Scanning	Yes
Scanning Technology	CIS (Contact Image Sensor)
Color Depth	24-bit
Max Document Size	8.5" x 14"
Maximum Document Size	8.5" x 14"
Supported Operating Systems	Windows
Optical Resolution	600 dpi
